Concrete Column Calculator

Calculate total concrete volume, dry material quantities, cement bags, and required water based on column dimensions and mix inputs. Concrete Column Calculator helps contractors, estimators, and homeowners plan concrete ordering and batching for column construction.

Highlights

  • Calculate concrete volume for multiple rectangular columns.
  • Estimate concrete quantities including a customizable waste allowance.
  • Determine cement, sand, and aggregate volumes and weights.
  • Calculate required cement bags based on your selected bag size.
  • Estimate mixing water using the specified water-cement ratio.

Table of Contents

  1. How Concrete Column Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Concrete Column Calculator Works?

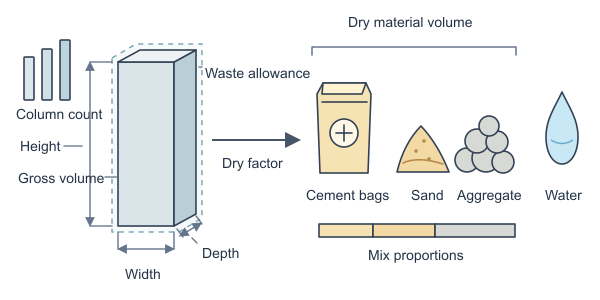

The Concrete Column Calculator first determines the geometric volume of all identical rectangular columns. It uses the number of columns, width, depth, and height entered by the user.

Vg=n×w×d×h

Here, Vg is the gross concrete volume, n is the number of columns, w is column width, d is column depth, and h is column height. The calculator then applies the selected waste allowance to account for spillage, leakage, handling losses, and placement waste.

Vt=Vg×1+p100

The waste-adjusted concrete volume is multiplied by the dry volume factor to estimate the combined volume of cement, sand, and coarse aggregate before mixing. The mix ratio divides this dry material volume among the three ingredients.

Vd=Vt×f
R=rc+rs+ra

MaterialVolume calculationMass calculation
CementVd×rcRVc×ρc
SandVd×rsRVs×ρs
AggregateVd×raRVa×ρa

Cement bags are calculated by dividing cement mass by the selected bag weight. Required water is based on the cement mass and the water-cement ratio, while total dry material mass is the sum of cement, sand, and aggregate masses.

Nb=mcmbag;Ww=mc×w/c

Practical Use Cases

Contractors can estimate the concrete volume, cement bags, sand, aggregate, and water required for a group of identical structural columns before arranging material deliveries and batching operations.

Construction estimators can compare material quantities for alternative column dimensions, mix ratios, density assumptions, and waste allowances when preparing project budgets or bills of quantities.

Homeowners and self-builders can obtain an initial purchasing estimate for columns used in extensions, porches, boundary structures, retaining elements, or other small construction projects.

Concrete batchers can use the mix ratio, dry volume factor, material densities, cement bag weight, and water-cement ratio to organize a repeatable ingredient schedule for the selected column quantity.

Site supervisors can review the recommended concrete quantity including waste and check whether planned cement, sand, aggregate, and water stocks are sufficient for the scheduled column pour.

Accuracy and Limitations

The calculator is mathematically accurate for identical rectangular columns when the entered dimensions, mix proportions, dry volume factor, waste allowance, bulk densities, bag weight, and water-cement ratio represent the actual materials and site conditions. Its results are estimates based on nominal volumetric batching: it does not account for reinforcement displacement, footings or beams, nonrectangular profiles, changes in column size, moisture content and bulking of sand, aggregate grading, slump requirements, admixtures, compaction effects, formwork dimensional variation, or structural design requirements. The waste allowance is a user-selected percentage rather than a measured site loss, and cement bag quantities may need rounding up for procurement.

Quick Examples

Example #1: Residential Porch Columns

Estimate concrete and material quantities for four standard columns supporting a residential porch.

Example #2: Commercial Building Columns

Calculate batch quantities for twelve larger reinforced concrete columns in a commercial structure.

Example #3: Small Garden Structure

Estimate materials for short narrow columns used in a small garden wall or covered outdoor structure.

Frequently Asked Questions

You typically need the number of columns, their width, depth, and height, along with the concrete mix proportions and local material properties.

A waste allowance accounts for spillage, formwork leakage, uneven surfaces, handling losses, and leftover material during placement. The appropriate percentage depends on site conditions and project complexity.

A 1:2:4 ratio represents one part cement, two parts sand, and four parts coarse aggregate by volume. The specified ratio should follow the project’s structural requirements and applicable construction standards.

Lower water-cement ratios generally improve strength and durability when the concrete remains workable. Excess water can increase shrinkage, porosity, and the risk of reduced structural performance.

Yes. Column dimensions, reinforcement, load requirements, concrete strength, and foundations should be verified by qualified professionals and coordinated with approved structural drawings.
