Board and Batten Calculator
Calculate net wall area, board quantities, batten quantities, material lengths, waste, and estimated project cost from wall dimensions and material details. Board and Batten Calculator helps contractors, builders, and homeowners plan siding materials accurately for exterior wall projects.
Highlights
- Calculate gross and net wall area after subtracting windows, doors, and other openings.
- Estimate the boards and battens needed for your siding project.
- Determine required material lengths with customizable waste allowances.
- Calculate batten quantities based on your selected spacing.
- Estimate total material costs using board and batten prices.
Table of Contents
How Board and Batten Calculator Works?

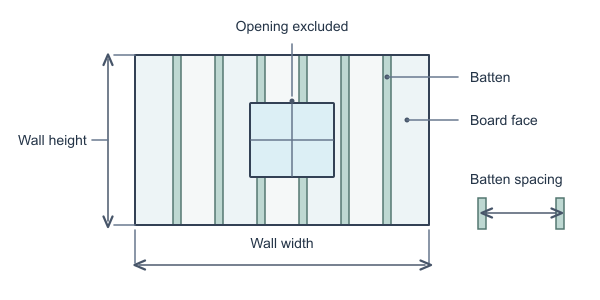

The Board and Batten Calculator estimates the siding materials needed from the wall dimensions, opening area, board dimensions, batten spacing, stock lengths, waste allowance, and material prices. It first determines the wall area, removes the area occupied by windows and doors, and then calculates board and batten quantities.
The required board length is found by dividing the net siding area by the visible face width of one board. The board width must be expressed in a compatible length basis with the area calculation.
Waste is applied as a percentage increase to both board and batten lengths. For example, a 10% allowance multiplies the calculated length by 1.10.
The number of full-size boards is the waste-adjusted board length divided by the selected board stock length, rounded up because partial purchased pieces are not counted as complete stock pieces.
Batten locations are estimated from the wall width and the planned center-to-center spacing. The calculation uses the number of spacing intervals across the wall and includes an additional batten location for the opposite edge.
The required batten length equals the estimated batten count multiplied by wall height. Waste is then added, and the result is divided by the selected batten stock length and rounded up to determine the purchased batten pieces.
| Output | Calculation basis |
|---|---|
| Gross Wall Area | Wall width multiplied by wall height |
| Net Siding Area | Gross wall area minus total opening area |
| Boards Required | Waste-adjusted board length divided by board stock length, rounded up |
| Battens Required | Waste-adjusted batten length divided by batten stock length, rounded up |
| Total Material Pieces | Boards required plus battens required |
| Estimated Material Cost | Board cost plus batten cost |
Practical Use Cases
Exterior siding contractors can estimate the board and batten materials for a wall or elevation before preparing a quote. The calculator accounts for openings, stock lengths, waste, and separate board and batten prices.
Builders and remodelers can use the net siding area and required linear lengths to create a material order for new construction, additions, garages, sheds, and other wall-cladding projects.
Homeowners can compare material quantities and estimated costs when planning a board and batten renovation, while allowing for windows, doors, cutting waste, and the selected installation pattern.
Architects and estimators can use the batten spacing and board face width inputs to develop preliminary quantity takeoffs and evaluate how design choices affect the total material requirement.
Building supply professionals can use the whole-piece board and batten quantities to prepare more practical purchase lists based on available stock lengths and entered prices.
Accuracy and Limitations
The calculator provides a planning estimate based on a rectangular wall, one combined opening-area value, uniform board coverage, regular batten spacing, and standard stock lengths. It estimates batten locations using the wall width divided by spacing plus one edge location, so corners, end conditions, irregular elevations, gable walls, staggered joints, trim boards, starter strips, fasteners, and extra material around openings are not separately modeled. Board and batten quantities are rounded up to whole purchased pieces after the entered waste allowance is applied. For accurate ordering, verify the result against the actual wall layout, manufacturer installation requirements, cut plan, and site measurements.
Quick Examples
Example #1: Small Residential Wall
Estimate board and batten materials for a small exterior wall with one opening.
Example #2: Large Farmhouse Exterior
Plan siding quantities and costs for a larger farmhouse wall with multiple openings.
Example #3: Metric Commercial Section
Calculate materials for a commercial wall using metric dimensions and longer stock lengths.
