Rolling Offset Calculator

Calculate true offset, travel distance, run, and offset angle based on vertical offset, horizontal roll, and bend angle. Rolling Offset Calculator helps plumbers, pipefitters, contractors, and fabricators plan accurate angled pipe installations.

Highlights

  • Calculate true 3D pipe offsets from vertical and horizontal measurements.
  • Determine accurate travel distance between pipe fittings.
  • Calculate projected run distance for angled pipe installations.
  • Find the 3D offset angle for precise alignment.
  • Ideal for plumbers, pipefitters, contractors, and fabricators.

Table of Contents

  1. How Rolling Offset Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Rolling Offset Calculator Works?

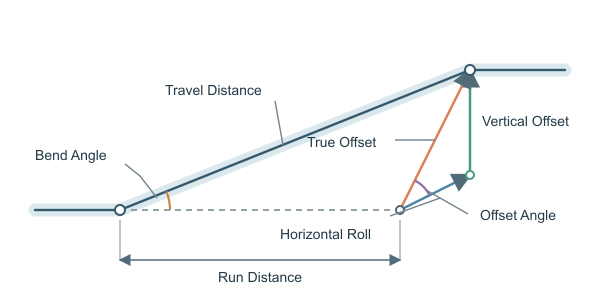

The Rolling Offset Calculator combines a vertical elevation difference with a horizontal sideways displacement to determine the total three-dimensional offset between two pipe centerlines. These two components are treated as perpendicular sides of a right triangle.

T=V2+H2

Here, T is the true offset, V is the vertical offset, and H is the horizontal roll.

The selected bend angle determines how much pipe travel is required to create the true offset. The calculator uses trigonometric relationships to calculate both travel distance and run distance:

D=Tsin⁡(θ)
R=Ttan⁡(θ)

In these equations, D is travel distance, R is run distance, and θ is the bend angle. The offset angle describes the direction of the combined offset relative to the horizontal roll plane:

α=arctan⁡(VH)

For example, with a vertical offset of 12, a horizontal roll of 8, and a 45-degree bend angle, the results are approximately:


ResultCalculationApproximate value
True offset√(12² + 8²)14.42
Travel distance14.42 ÷ sin(45°)20.40
Run distance14.42 ÷ tan(45°)14.42
Offset anglearctan(12 ÷ 8)56.31°

Practical Use Cases

Plumbers can use the calculator to plan pipe routes that must clear structural obstacles while changing both elevation and sideways position. The true offset and travel distance help determine where angled fittings or bends should be placed.

Pipefitters can calculate the combined effect of rise and roll when connecting process piping, mechanical systems, or equipment nozzles that are not aligned on a single plane.

Contractors can estimate installation geometry before materials are cut or installed. The run distance provides a useful layout dimension for coordinating pipe placement with walls, ceilings, supports, and other building components.

Fabricators can use the true offset, travel distance, and offset angle to prepare accurate shop layouts for prefabricated pipe sections and reduce alignment problems during field assembly.

Accuracy and Limitations

The calculator provides mathematically precise results for the right-triangle rolling-offset model, using the entered vertical offset, horizontal roll, and bend angle. It accepts positive offset values from 0.01 to 100000 and bend angles from 1 to 89.99 degrees. Results assume perpendicular vertical and horizontal components, ideal bend geometry, and no allowance for fitting takeout, pipe wall thickness, center-to-end dimensions, threading, weld gaps, or installation tolerances. The calculated travel and run distances should therefore be verified against the specific fittings, bending method, and layout standards used on the job.

Quick Examples

Example #1: Residential Pipe Offset

Calculates a rolling offset for a typical residential plumbing installation.

Example #2: Commercial Pipe Run

Determines the travel distance and run for a larger commercial pipe installation.

Example #3: Metric Fabrication Offset

Provides rolling offset inputs for metric-based pipe fabrication and layout work.

Frequently Asked Questions

A rolling offset changes a pipe’s position in both elevation and horizontal direction. It is commonly used to route piping around obstacles while connecting two pipe sections.

You typically need the vertical elevation difference, horizontal sideways displacement, and bend angle. All measurements should reference the pipe centerlines and use consistent units.

A smaller bend angle generally requires more travel between fittings, while a larger bend angle produces a shorter travel distance. The available fittings and installation space should guide the angle selection.

Horizontal roll describes the sideways displacement in one plane. True offset represents the combined three-dimensional displacement created by both the horizontal and vertical changes.

Pipe offsets are laid out from centerline to centerline rather than from outside edges. Accurate centerline measurements help ensure the finished piping aligns correctly with connected equipment and fittings.
