Spindle Spacing Calculator

Calculate spindle quantity, clear spacing, center spacing, and railing coverage based on railing length, spindle width, maximum gap, and end offset. Spindle Spacing Calculator helps contractors, builders, and homeowners plan compliant, evenly distributed stair and deck railing installations.

Highlights

  • Calculate the minimum number of spindles needed for your railing.
  • Determine actual clear gaps and ensure spacing stays within limits.
  • Measure precise center-to-center spindle spacing.
  • Account for spindle width and end offsets.
  • Plan evenly distributed, compliant stair and deck railings.

Table of Contents

  1. How Spindle Spacing Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Spindle Spacing Calculator Works?

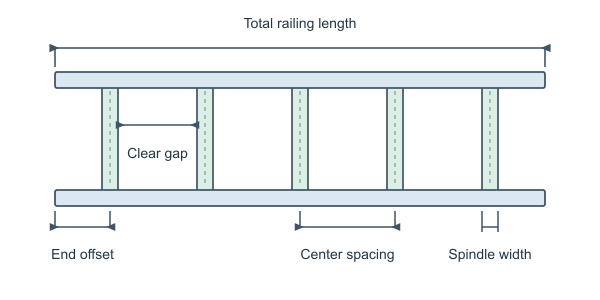

The Spindle Spacing Calculator determines how many spindles are needed across a railing while keeping the clear opening between adjacent spindles at or below the specified maximum. It uses the total railing length, spindle width, maximum clear gap, and the distance from each railing end to the nearest spindle centerline.

First, the calculator removes both end offsets from the total railing length to find the usable section:

usableLength=railingLength−2×endOffset

The minimum spindle count is calculated by comparing the usable length with the maximum permitted repeating span, which consists of one spindle width plus one maximum clear gap:

spindleCount=⌈usableLength+maximumClearGapspindleWidth+maximumClearGap⌉

For a railing requiring two or more spindles, the remaining space after the spindle widths are removed is distributed evenly between adjacent spindles:

remainingSpace=usableLength−spindleCount×spindleWidth
actualClearGap=remainingSpacespindleCount−1

The center-to-center spacing is the spindle width plus the actual clear gap:

centerToCenterSpacing=spindleWidth+actualClearGap

The combined spindle width is:

totalSpindleWidth=spindleCount×spindleWidth

For example, with a usable railing length of 116, a spindle width of 1.5, and a maximum clear gap of 4, the calculator produces 22 spindles. The resulting clear gap is approximately 3.95, and the center-to-center spacing is approximately 5.45.


OutputCalculation
Required spindle countMinimum whole number that keeps the clear gap at or below the maximum
Actual clear gapRemaining space divided by the number of gaps
Center-to-center spacingSpindle width plus actual clear gap
Total spindle widthSpindle count multiplied by spindle width
Usable railing lengthTotal railing length minus both end offsets
Remaining distributed spaceUsable railing length minus total spindle width

Practical Use Cases

Contractors can use the calculator during estimating and installation planning to determine the minimum spindle quantity required for a stair, balcony, or deck railing while maintaining a consistent clear gap.

Builders and carpenters can calculate center-to-center layout marks before cutting or installing spindles, reducing uneven spacing and helping distribute the available railing length evenly.

Homeowners and DIY renovators can estimate the number of spindles and the resulting gap before purchasing materials for a replacement railing or new deck project.

Architects and designers can test different spindle widths, end offsets, and maximum gap requirements during the preliminary design of residential or commercial guardrails.

Railing material suppliers can use the calculated spindle count and total spindle width to prepare more accurate material estimates for customer quotations.

Accuracy and Limitations

The calculator provides mathematically even spacing based on the entered railing length, spindle width, maximum clear gap, and end offset, and rounds the required spindle count up to the next whole spindle so the calculated actual clear gap does not exceed the selected maximum under the model. It assumes all spindles have the same width, the railing is straight, both end offsets are equal, and the spindles are distributed evenly. It does not account for posts, brackets, handrails, angled or curved sections, installation tolerances, material waste, or local building-code interpretations; verify the final layout against the applicable railing and guard requirements. If the usable railing length is too short for the selected spindle width, the resulting layout may be physically impractical and should be reviewed before installation.

Quick Examples

Example #1: Standard Deck Railing

Plans evenly spaced spindles for a typical residential deck railing while maintaining a maximum 4-inch clear gap.

Example #2: Long Stair Railing

Calculates spindle requirements for a longer stair or balcony railing using measurements in feet.

Example #3: Compact Balcony Section

Determines spindle spacing for a compact balcony railing with metric measurements and narrow metal spindles.

Frequently Asked Questions

Many residential railing codes limit clear openings to 4 inches, but requirements can vary by location and application. Always verify the rules enforced by your local building authority.

Clear gap is the open distance between adjacent spindles. Center-to-center spacing measures from the center of one spindle to the center of the next and includes the spindle width.

Yes. The distance from each railing end to the nearest spindle affects the usable installation length and helps create a balanced, consistent appearance.

Yes, measurements may be taken in inches, feet, millimeters, centimeters, or meters. Use the same unit consistently for railing length, spindle width, gap limits, and offsets.

Spindles generally need to be arranged in whole numbers, so the available length may not divide evenly. Using the next suitable spindle count keeps the spacing within the specified limit.
