Clearance Hole Calculator
Calculate recommended hole diameter, radius, and diametral clearance based on fastener diameter and selected fit type. Clearance Hole Calculator helps builders, fabricators, woodworkers, and DIY users select suitable holes for securely fitting fasteners.
Highlights
- Calculates the recommended clearance hole diameter for fasteners.
- Supports close, normal, and loose fit options.
- Provides hole radius and diametral clearance measurements.
- Works with both millimeter and inch units.
- Useful for builders, fabricators, woodworkers, and DIY projects.
Table of Contents
How Clearance Hole Calculator Works?

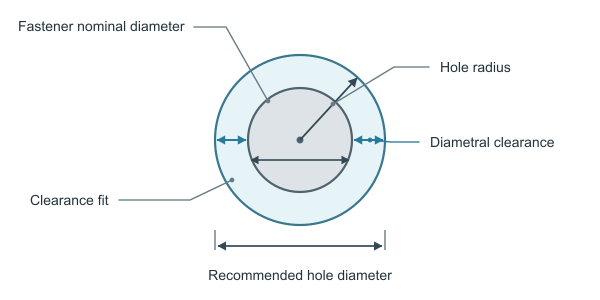

The Clearance Hole Calculator determines the recommended hole size from the fastener's nominal diameter and the selected fit type. A clearance hole is intentionally larger than the fastener so the fastener can pass through the material without cutting threads or binding during installation.
The calculator applies a fit-specific diametral clearance allowance, represented by C. Close Fit uses the smallest allowance, Normal Fit uses a moderate allowance, and Loose Fit uses the largest allowance.
In this equation, D is the recommended hole diameter, d is the fastener nominal diameter, and C is the diametral clearance selected by the fit type. The calculator then determines the hole radius by dividing the recommended diameter by two:
The diametral clearance output is the difference between the recommended hole diameter and the fastener diameter:
| Fit type | Purpose | Effect on hole size |
|---|---|---|
| Close Fit | Precise positioning with minimal movement | Smallest clearance allowance |
| Normal Fit | General-purpose assembly | Moderate clearance allowance |
| Loose Fit | Easy installation or allowance for alignment variation | Largest clearance allowance |
Enter the fastener nominal diameter, choose Close Fit, Normal Fit, or Loose Fit, and the calculator reports the recommended hole diameter, hole radius, and total diametral clearance in the selected supported unit.
Practical Use Cases
Builders can use the calculator when drilling holes through timber, sheet goods, brackets, or framing hardware. Normal Fit is generally useful for routine fastening where the bolt or screw must pass cleanly through one material before engaging a nut or threaded component.
Metal fabricators can calculate a suitable clearance hole before drilling or machining plates, brackets, and structural parts. Close Fit can help when the fastener needs more controlled positioning, while Loose Fit can accommodate easier assembly or minor alignment differences.
Woodworkers can use the recommended diameter when creating bolt-through joints, jigs, furniture hardware connections, and adjustable assemblies. Selecting the appropriate fit helps prevent excessive movement while still allowing the fastener to pass through cleanly.
DIY users can use the calculator to choose a drill size for common repair and construction projects. The radius output is also useful for layout work, while the diametral clearance shows how much larger the finished hole will be than the fastener.
Accuracy and Limitations
The calculator accurately applies its selected fit allowance to the entered fastener nominal diameter and calculates radius and diametral clearance using the stated geometric formulas. Its results are recommendations rather than a substitute for an engineering fit specification: actual hole size can vary with drill or tooling condition, material deformation, burrs, fastener manufacturing tolerances, coating thickness, surface finish, and alignment requirements. It does not account for hole location tolerances, thread engagement, edge distance, joint loads, structural strength, or specialized standards, so critical assemblies should be checked against the applicable fastener and fabrication specification.
Quick Examples
Example #1: Standard Metric Fastener
Determines a normal-fit clearance hole for a commonly used metric fastener.
Example #2: Precision Assembly
Calculates a close-fit hole for accurate positioning of a larger fastener.
Example #3: Loose-Fit Woodworking
Calculates a loose-fit clearance hole to make installation easier during woodworking or DIY assembly.
