Fence Post Depth Calculator

Calculate recommended post embedment depth, total post length, and concrete volume based on fence height, frost depth, hole diameter, and post count. Fence Post Depth Calculator helps homeowners, contractors, and landscapers plan durable fence installations and material requirements.

Highlights

  • Calculates the recommended fence post embedment depth.
  • Determines the total post length needed for your fence.
  • Estimates concrete volume required per post.
  • Calculates total concrete requirements for all posts.
  • Supports multiple measurement units for flexible planning.

Table of Contents

  1. How Fence Post Depth Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Fence Post Depth Calculator Works?

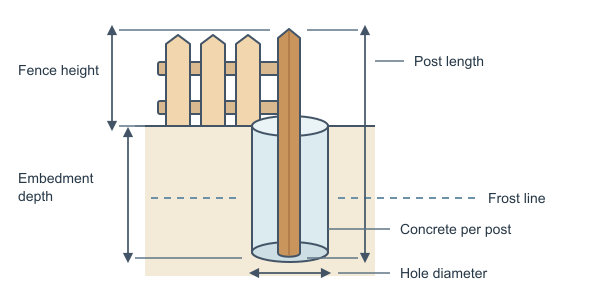

The calculator estimates how deeply each fence post should be set, how long each post should be, and how much concrete is needed. It uses the planned fence height, local frost line depth, concrete hole diameter, and number of posts.

The recommended embedment depth is the greater of one-third of the above-ground fence height or the entered frost line depth:

d=max⁡(h3,df)

Here, d is the recommended embedment depth, h is the fence height above ground, and df is the local frost line or minimum required embedment depth. This approach ensures that the post is not embedded less than either the one-third-height guideline or the specified frost depth.

The recommended total length of each post equals the visible fence height plus its embedment depth:

Lpost=h+d

Concrete volume is modeled as a cylinder using the hole diameter and recommended embedment depth:

Vpost=π(D2)2d

In this formula, D is the round hole diameter. The total concrete requirement multiplies the volume for one post by the number of posts:

Vtotal=Vpost×n

For example, with a 6-foot fence, a 24-inch frost depth, a 10-inch hole diameter, and 10 posts, the one-third-height guideline is 2 feet. Because the frost depth is also 2 feet, the recommended embedment is 2 feet. Each post therefore needs a total length equal to 8 feet, and the concrete estimate is based on a cylindrical hole 10 inches wide and 2 feet deep.

Practical Use Cases

Homeowners can use the calculator before purchasing fence materials to estimate the minimum post length and approximate concrete needed for a backyard, privacy, garden, or boundary fence.

Fence contractors can enter the project fence height, local frost depth, hole diameter, and post count to create a quick preliminary estimate for posts and concrete across an installation.

Landscapers can use the results when planning decorative fencing, garden enclosures, trellises, and property improvements where post stability and material quantities must be considered together.

DIY builders can compare different hole diameters and post counts to understand how excavation choices affect the concrete requirement for a planned fence project.

Material suppliers can use the total concrete volume as a starting point for preparing a quote, while allowing additional material for spillage, uneven excavation, and site conditions.

Accuracy and Limitations

The calculator accurately applies its stated model: embedment is the greater of one-third of fence height or the entered frost depth, post length is fence height plus embedment, and concrete is calculated as a perfect cylinder multiplied by the post count. Its results are estimates and do not account for post dimensions, hole tapering or bell shapes, gravel layers, drainage, sloped ground, soil bearing capacity, wind loads, gates, local building codes, concrete waste, or extra material around the post. The inputs are limited to fence heights from 0.5 to 30, frost depths from 0 to 240, hole diameters from 2 to 48, and post counts from 1 to 10,000, so site-specific engineering or code requirements may call for greater embedment or additional concrete.

Quick Examples

Example #1: Standard Residential Fence

Estimate post embedment and concrete requirements for a typical 6-foot residential fence.

Example #2: Tall Privacy Fence

Plan post length and concrete volume for a taller privacy fence in a moderate frost area.

Example #3: Metric Garden Boundary

Calculate material requirements for a low garden boundary using metric measurements.

Frequently Asked Questions

A common guideline is to bury at least one-third of the post’s above-ground height, while also reaching below the local frost line where applicable. Soil conditions, fence design, and local building requirements may require greater depth.

Soil that freezes and thaws can expand and shift, causing shallow posts to heave, lean, or become unstable. Setting posts below the frost line helps reduce movement in cold climates.

The post should be long enough to provide the required visible fence height plus its underground embedment depth. Additional length may be useful for uneven ground, sloped sites, or trimming during installation.

Concrete requirements depend on the hole diameter and depth, as well as the number of posts being installed. It is wise to allow extra material for irregular holes, spillage, and site variations.

The hole should generally be wider than the post to provide enough room for concrete and stability. Larger or taller fences, loose soil, and corner or gate posts may require wider holes.
