Wainscoting Calculator

How Wainscoting Calculator Works?

The Wainscoting Calculator estimates the number and size of panel openings, covered wall area, insert area, rail and stile requirements, total trim, waste allowance, and uncovered wall height. It assumes the measured wall length is a continuous combined length and that panel openings are distributed evenly across it.

First, the calculator determines the number of panel openings by comparing the total wall length with the desired opening width plus one stile width. The result is rounded up to the next whole panel because a partial panel opening is not counted as a complete planned opening.

Here, L is total wall length, O is the desired panel opening width, and S is the stile width. After the panel count is selected, the calculator redistributes the available width evenly to find the actual clear opening width.

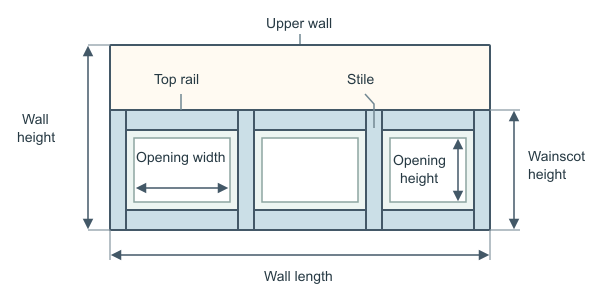

The clear panel height is the planned wainscoting height less the top and bottom rail widths. The total covered area uses the full wall length and wainscoting height, while the insert area uses the adjusted opening dimensions for every panel.

Rail length is based on two horizontal runs across the total wall length. Stile length includes one vertical stile at each wall edge plus one between each adjacent pair of panel openings, so the stile count is the number of panels plus one.

The waste percentage is applied to both the total wainscoting area and the combined rail-and-stile length.

Practical Use Cases

Homeowners can estimate how many evenly spaced panel openings will fit along a room's walls, compare the planned panel proportions with the remaining upper wall height, and create a preliminary material purchasing list that includes a selected waste allowance.

General contractors can use the panel count, actual opening width, rail length, stile length, and total trim length to organize framing materials and prepare a more consistent installation layout before work begins.

Interior designers can test different wainscoting heights, opening widths, stile widths, and rail widths to evaluate visual spacing, panel proportions, covered area, and the amount of wall left above the treatment.

Carpenters and finish installers can use the rail and stile calculations to estimate trim quantities, while the panel insert area helps plan boards, inserts, or recessed panel materials for the clear openings.

Remodeling estimators can use the total wainscoting area and material area including waste to develop preliminary quantities for proposals, budgeting, and ordering, subject to a detailed site measurement.

Accuracy and Limitations

The calculator provides a consistent planning estimate when walls are treated as one continuous length with uniform wainscoting height, stile width, and rail width. It rounds the panel count upward and recalculates an even actual opening width, but it does not account for doors, windows, corners, fireplaces, outlets, uneven walls, corner-specific trim, transitions, board stock lengths, seams, or installation obstructions. The total area includes the full planned wainscoting rectangle, while panel insert area represents only the clear openings; therefore, verify the layout on site and add any project-specific allowances before purchasing materials.
