Bending Stress Calculator

Calculate bending stress, factor of safety, utilization, and safety margin from bending moment, section modulus, and allowable stress. Bending Stress Calculator helps engineers and designers evaluate structural member adequacy during material selection and design review.

Highlights

  • Calculate beam bending stress quickly and accurately.
  • Evaluate structural safety with factor of safety results.
  • Measure stress utilization as a percentage of allowable capacity.
  • Determine the remaining safety margin for your design.
  • Support multiple units for moments, section modulus, and stress.

Table of Contents

  1. How Bending Stress Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Bending Stress Calculator Works?

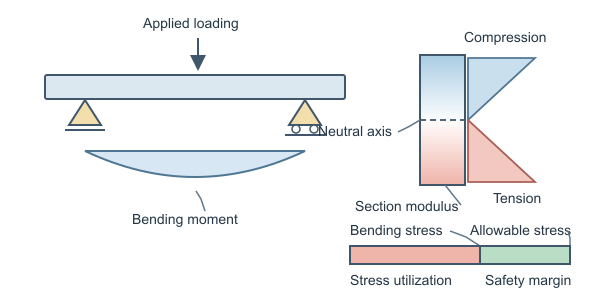

The Bending Stress Calculator uses the elastic beam relationship between bending moment, section modulus, and maximum flexural stress. The calculated stress represents the normal stress at the outermost fiber of the beam or structural member, where bending stress is greatest.

σ=MZ

In this equation, σ is the bending stress, M is the applied bending moment, and Z is the section modulus. The bending moment and section modulus must be entered in compatible units so that the resulting stress can be compared directly with the allowable bending stress.

The calculator then compares the calculated bending stress with the allowable value to determine structural adequacy:

FOS=σallowableσbending
Utilization=σbendingσallowable×100
Safety Margin=1−σbendingσallowable×100

A factor of safety greater than 1 indicates that the calculated bending stress is below the entered allowable stress. Utilization below 100% and a positive safety margin indicate unused allowable capacity, while utilization above 100% or a negative safety margin indicates that the input member exceeds the specified stress limit.


ResultMeaning
Bending StressMaximum calculated flexural stress in the member.
Factor of SafetyAllowable bending stress divided by calculated bending stress.
Stress UtilizationPercentage of allowable stress consumed by the applied bending moment.
Safety MarginRemaining percentage capacity relative to the allowable stress.

Practical Use Cases

Structural Engineers: Structural engineers can evaluate beams, girders, and other members by entering the design bending moment, section modulus, and allowable bending stress. The utilization and safety margin provide a quick screening check during preliminary sizing and design review.

Mechanical Designers: Mechanical designers can assess shafts, brackets, frames, and machine components subjected to bending. Comparing the calculated flexural stress with the allowable value helps identify whether a selected cross-section is suitable for the expected loading condition.

Materials Engineers: Materials engineers can compare candidate materials or allowable stress specifications while keeping the member geometry and applied bending moment fixed. The factor of safety shows how much allowable stress remains for each design option.

Fabrication and Quality Inspectors: Inspectors can use the calculator as a verification tool when reviewing section properties and loading information for fabricated beams or structural components. It can help flag designs where the reported bending demand exceeds the specified allowable stress.

Students and Engineering Trainees: Students can use the calculator to connect the section modulus relationship with practical beam design results and observe how changes in bending moment, geometry, or allowable stress affect utilization and safety margin.

Accuracy and Limitations

The calculator accurately applies the relationship σ = M/Z and the corresponding factor-of-safety, utilization, and safety-margin equations for the supplied inputs. It assumes linear-elastic bending, a valid section modulus, and a bending stress check governed by the entered allowable stress. It does not evaluate shear stress, axial load, torsion, lateral-torsional buckling, local buckling, deflection, stress concentrations, fatigue, plastic behavior, load combinations, connection capacity, or code-specific resistance factors. The result is therefore a screening calculation and should be verified against the applicable design standard and complete structural analysis.

Quick Examples

Example #1: Steel Beam Design Check

Evaluate the bending stress and safety performance of a steel beam under a moderate applied moment.

Example #2: Heavy Structural Member

Check the flexural adequacy of a large structural member subjected to a high bending moment.

Example #3: Imperial Beam Assessment

Assess bending stress and capacity utilization for a beam using imperial engineering units.

Frequently Asked Questions

Bending stress is the internal stress developed in a structural member when it is subjected to a bending load. It is typically highest at the outermost fibers of the member.

Section modulus describes how effectively a cross-sectional shape resists bending. A larger section modulus generally results in lower bending stress under the same applied moment.

The factor of safety is the ratio between allowable bending stress and the calculated bending stress. A value greater than 1 indicates that the stress is below the specified allowable limit.

Stress utilization represents the percentage of allowable bending capacity being used. Values below 100% are generally within the allowable stress limit, while values above 100% indicate that the limit has been exceeded.

A negative safety margin means the calculated bending stress is greater than the allowable bending stress. This may indicate the need for a stronger material, a larger section, or reduced loading.
