Spindle Speed Calculator
Calculate recommended spindle speed based on cutting speed and tool diameter. Spindle Speed Calculator helps machinists, operators, and engineers select efficient rotational settings.
Highlights
- Calculate recommended spindle RPM from cutting speed and tool diameter.
- Supports metric and imperial cutting speed units.
- Accepts tool diameters in mm, cm, inches, or feet.
- Provides results in RPM, revolutions per second, or radians per second.
- Useful for machinists, operators, and engineers optimizing machining settings.
Table of Contents
How Spindle Speed Calculator Works?

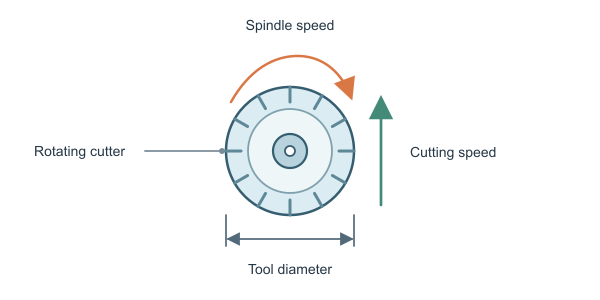

The Spindle Speed Calculator determines the rotational speed needed to produce a selected cutting speed at a given tool or workpiece diameter. The relationship comes from the distance traveled by a point on the circumference during one revolution.
Here, is rotational speed, is cutting speed, and is tool or workpiece diameter. When cutting speed is entered in m/min and diameter in mm, the spindle speed in RPM is calculated as:
This means spindle speed increases when the cutting speed increases and decreases when the diameter becomes larger. After calculating the rotational rate, the result can be displayed as RPM, revolutions per second, or radians per second.
| Symbol | Meaning | Calculator input or output |
|---|---|---|
| Cutting speed | m/min, ft/min, or in/min | |
| Tool or workpiece diameter | mm, cm, in, or ft | |
| Spindle speed | RPM, r/s, or rad/s |
For example, using a cutting speed of 100 m/min and a tool diameter of 10 mm gives approximately 3,183 RPM. The calculator accepts cutting-speed values from 0.1 to 100,000 and diameter values from 0.01 to 1,000 within the configured input ranges.
Practical Use Cases
Machinists can use the calculator to select an initial spindle setting for milling, drilling, turning, or similar operations by entering the recommended cutting speed and the cutter diameter. This provides a quick starting point before fine-tuning the setup for the material and tooling.
CNC machine operators can calculate a suitable rotational speed when changing tool sizes or preparing a new job. The result helps them compare the required setting with the machine's available spindle-speed range.
Manufacturing engineers can use the calculator during process planning to estimate spindle requirements for different tools and workpiece diameters. This supports tooling comparisons and helps identify whether a proposed operation fits the machine's capabilities.
Tooling and application specialists can use it to demonstrate how a recommended cutting speed affects spindle RPM. It is especially useful when explaining why larger-diameter cutters require lower rotational speeds for the same surface velocity.
Technical students and apprentices can use the calculator to check manual calculations based on the circumference relationship between cutting speed, diameter, and rotational speed.
Accuracy and Limitations
The calculator accurately applies the geometric relationship between cutting speed and diameter within the supported input ranges, but its result is a theoretical starting spindle speed rather than a complete machining prescription. It does not account for workpiece material, cutter material or geometry, tooth count, feed per tooth, depth of cut, machine rigidity, available motor power, tool-holder limits, vibration, coolant, or manufacturer-specific maximum RPM. Confirm the calculated value against tooling data and the machine's rated spindle range before machining, and reduce the setting when actual cutting conditions require it.
Quick Examples
Example #1: Standard Metric Milling
Calculates spindle speed for a 10 mm tool operating at a cutting speed of 100 m/min.
Example #2: Imperial Turning Setup
Determines spindle speed using an imperial cutting speed and tool diameter for a turning operation.
Example #3: High-Speed Precision Cutting
Calculates the recommended spindle speed for a small precision tool using cutting speed in inches per minute.
