Taper Calculator
Calculate taper difference, taper rate, slope percentage, taper ratio, and angles based on large diameter, small diameter, and length. Taper Calculator supports construction professionals, fabricators, engineers, and material specifiers evaluating tapered components and surfaces.
Highlights
- Calculates diameter reduction between large and small ends.
- Determines taper rate and slope percentage accurately.
- Computes half and included taper angles.
- Provides taper ratios for construction and fabrication specifications.
- Supports multiple metric and imperial measurement units.
Table of Contents
How Taper Calculator Works?

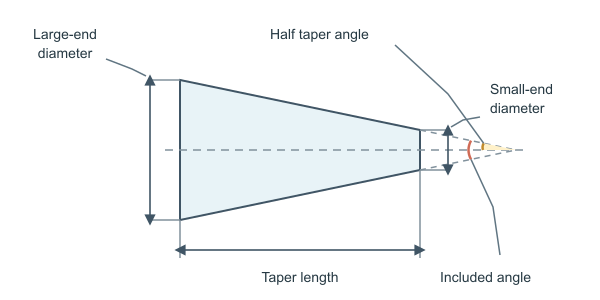

The Taper Calculator evaluates the change in diameter along a tapered component. It uses the large-end diameter, small-end diameter, and axial taper length to determine the diameter reduction, taper rate, slope percentage, taper angles, and taper ratio.
First, the diameter reduction is calculated by subtracting the small-end diameter from the large-end diameter:
where ΔD is the diameter reduction, DL is the large-end diameter, and DS is the small-end diameter. The taper rate expresses this reduction per unit of axial length:
The slope percentage is the taper rate expressed as a percentage:
Because the diameter changes on both sides of the centerline, the radial change is half of the total diameter reduction. The half taper angle is therefore calculated with the inverse tangent function:
The included taper angle is the angle between opposite tapered surfaces:
The taper ratio is represented as 1:n, where n is the taper length divided by the diameter reduction:
For example, with a large-end diameter of 100, a small-end diameter of 80, and a taper length of 1000, the results are:
| Output | Calculation | Result |
|---|---|---|
| Diameter Reduction | 100 − 80 | 20 |
| Taper Rate | 20 ÷ 1000 | 0.02 per length unit |
| Slope | 0.02 × 100 | 2% |
| Half Taper Angle | arctan(20 ÷ 2000) | approximately 0.573 degrees |
| Included Taper Angle | 2 × 0.573 | approximately 1.146 degrees |
| Taper Ratio | 1000 ÷ 20 | 1:50 |
Practical Use Cases
Construction professionals can use the calculator to check tapered slabs, ramps, piles, formwork, drainage profiles, and other components where a specified diameter or width reduction occurs over a known length.
Fabricators can determine the required reduction rate and included angle when producing tapered tubes, shafts, sleeves, cones, ducts, and turned or rolled components.
Engineers can use the half-angle and included angle results to review geometric designs, verify drawings, and compare a proposed taper against structural or mechanical specifications.
Material specifiers can express a tapered component using a clear slope percentage, taper rate, or 1:n ratio when preparing procurement documents, installation requirements, and product schedules.
Accuracy and Limitations
The calculator applies direct arithmetic and trigonometric formulas, so its numerical results are accurate to the precision of the entered values and displayed rounding. The large-end diameter should be greater than the small-end diameter, and the taper length must be positive. A zero diameter reduction produces zero slope and zero angles, but its taper ratio is undefined because the calculation divides by the reduction. The angle formulas describe a straight, uniform taper between two measured ends; they do not account for curved profiles, multiple taper sections, manufacturing tolerances, measurement error, surface irregularities, or material deformation.
Quick Examples
Example #1: Steel Pipe Taper
Defines the dimensions of a tapered steel pipe section for fabrication planning.
Example #2: Concrete Form Taper
Specifies the end diameters and length of a tapered concrete form.
Example #3: Fabricated Tapered Shaft
Provides input dimensions for evaluating the taper of a machined shaft.
