Countersink Depth Calculator
Calculate the required countersink depth from fastener head diameter, pilot hole diameter, and included countersink angle. Countersink Depth Calculator helps machinists, fabricators, engineers, and woodworkers create accurate flush-fitting fastener recesses.
Highlights
- Calculates the required countersink depth quickly and accurately.
- Uses fastener head diameter and pilot hole diameter for precise results.
- Supports multiple units, including millimeters, centimeters, and inches.
- Works with countersink angles from 1° to 179°.
- Ideal for machinists, fabricators, engineers, and woodworkers.
Table of Contents
How Countersink Depth Calculator Works?

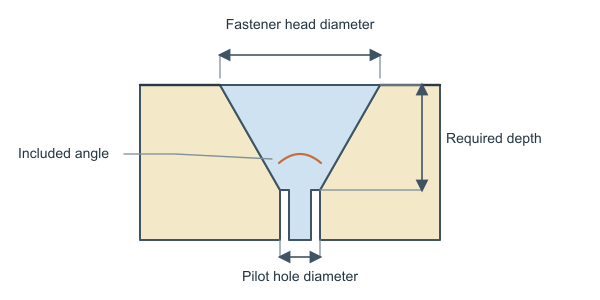

The Countersink Depth Calculator models the countersink as a conical recess. It determines how deep the recess must be so that a fastener head with diameter D fits flush around a pilot hole with diameter d. The calculation uses the radial difference between the two diameters and the included countersink angle θ.
Here, h is the required countersink depth, D is the fastener head diameter, d is the pilot hole diameter, and θ is the included countersink angle. The angle is divided by two because the cutter forms two symmetrical sloping sides around the centerline.
| Variable | Meaning | Accepted input |
|---|---|---|
| D | Fastener head diameter | 0.01 to 1000 mm, cm, or in |
| d | Pilot hole diameter | 0.01 to 999 mm, cm, or in |
| θ | Included countersink angle | 1° to 179° |
| h | Required countersink depth | Displayed in mm, cm, or in |
For example, with a 10 mm head diameter, a 5 mm pilot hole diameter, and a 90° included angle, the result is h = (10 − 5) ÷ [2 tan(45°)] = 2.5 mm. The calculator applies the same length unit to both diameters and reports the resulting depth in that length unit.
Practical Use Cases
Machinists can use the calculator to set a drill press, milling machine, or CNC operation to the depth required for a flat-head fastener to seat flush without removing excessive material.
Fabricators can calculate recess depths for sheet-metal, structural, and assembled components where exposed fastener heads could interfere with adjacent parts or finished surfaces.
Engineers can use the result during design verification to check that a selected fastener head, pilot hole, and countersink cutter geometry provide sufficient flush clearance.
Woodworkers can estimate the recess needed for flat-head screws so that the screw head sits level with or slightly below the surrounding material, helping prevent surface interference during finishing and assembly.
Accuracy and Limitations
The calculator provides an exact geometric result for an ideal, centered conical countersink using the entered head diameter, pilot hole diameter, and included angle. It assumes the fastener head and cutter share the same angle and that the pilot hole is concentric with the countersink. The head diameter should be greater than the pilot hole diameter; otherwise, the formula produces zero or negative depth, which does not represent a normal countersink. Actual machining may require a small allowance for burrs, tool wear, head-radius transitions, material deformation, and manufacturing tolerances. Angles close to 1° or 179° can also produce highly sensitive depth results, so those calculations should be verified against the cutter and fastener specifications.
Quick Examples
Example #1: Standard 90-Degree Countersink
Calculate the countersink depth for a typical flush-fitting fastener using millimeter measurements.
Example #2: Large Metric Fastener
Determine the required countersink depth for a larger fastener using centimeter measurements and a wider included angle.
Example #3: Imperial Hardware Installation
Calculate the countersink depth for an inch-based fastener installation with a 120-degree countersink angle.
