Elevation Grade Calculator

Calculate grade percentage, slope angle, slope ratio, and slope length based on vertical rise and horizontal distance. Elevation Grade Calculator helps contractors, engineers, surveyors, and property owners evaluate slopes for construction and site planning.

Highlights

  • Calculate slope grade as a percentage from elevation change and horizontal distance.
  • Determine the slope angle in degrees for accurate incline measurements.
  • Convert slopes into a clear horizontal-to-vertical ratio.
  • Calculate the straight-line length along the slope.
  • Supports multiple metric and imperial units for flexible construction and site planning.

Table of Contents

  1. How Elevation Grade Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Elevation Grade Calculator Works?

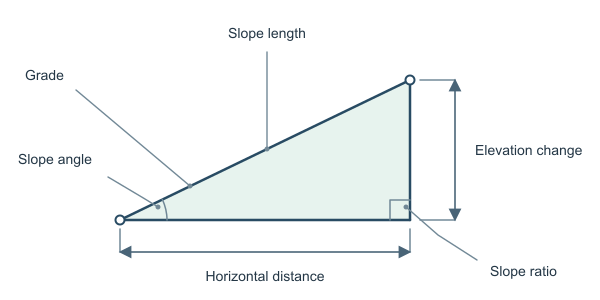

The Elevation Grade Calculator uses the vertical elevation change and horizontal distance to describe a slope in several ways. Enter positive values for Elevation Change and Horizontal Distance. The calculator supports mm, cm, m, km, in, ft, yd, and mi for these inputs, and reports the grade, angle, slope ratio, and slope length.

Grade=Elevation ChangeHorizontal Distance×100

The grade expresses the vertical rise as a percentage of the horizontal run. The slope angle is measured from the horizontal reference line using the inverse tangent function:

θ=tan−1⁡Elevation ChangeHorizontal Distance

The slope ratio is presented as 1:X, where X indicates the horizontal distance for each unit of vertical elevation change:

X=Horizontal DistanceElevation Change

Finally, slope length is the straight-line distance between the lower and higher endpoints, calculated with the Pythagorean theorem:

Slope Length=Elevation Change2+Horizontal Distance2

OutputMeaning
GradeSlope steepness expressed as a percentage.
Slope AngleInclination of the slope in degrees from horizontal.
Slope RatioHorizontal-to-vertical relationship written as 1:X.
Slope LengthDirect distance along the sloping surface.

Practical Use Cases

Contractors can estimate site grades, driveway slopes, ramps, drainage paths, and earthwork layouts before construction begins. The slope ratio and angle help compare the planned slope with project requirements.

Engineers can use the calculated grade, angle, and slope length as preliminary values for roadway design, stormwater planning, retaining wall studies, and other civil engineering assessments.

Surveyors can quickly describe the relationship between two measured points by entering their elevation change and horizontal separation, producing a percentage grade and angle for field documentation.

Property owners can evaluate the steepness of a yard, access path, driveway, or proposed landscaping area when considering drainage improvements, grading work, or accessibility.

Accessibility planners can review the slope percentage, angle, and 1:X ratio of a proposed ramp or walkway as an initial design check before applying applicable building and accessibility standards.

Accuracy and Limitations

The calculator applies standard grade, inverse-tangent, ratio, and Pythagorean formulas, so its mathematical results are reliable for the entered values and are typically limited by the precision of the displayed output. It assumes a straight, uniform slope between two points, with a clearly defined vertical elevation change and horizontal distance. It does not account for curves, irregular terrain, intermediate rises or dips, surface roughness, construction tolerances, or local design-code requirements. Because both inputs must be greater than zero, the calculator is not intended for a zero-distance case or for representing a perfectly level slope.

Quick Examples

Example #1: Residential Access Ramp

Evaluate the grade and slope characteristics of a gentle ramp for accessibility and residential construction planning.

Example #2: Hiking Trail Slope

Determine the steepness, angle, and slope length of a hiking trail section.

Example #3: Construction Embankment

Assess a relatively steep embankment for grading, earthwork, and site development purposes.

Frequently Asked Questions

A slope grade expresses the elevation change as a percentage of the horizontal distance. For example, a 10% grade rises 10 units vertically for every 100 units horizontally.

Grade percentage describes the rise relative to the horizontal distance, while slope angle shows the incline in degrees from level ground. They describe the same slope using different measurements.

A ratio such as 1:4 commonly means 1 unit of vertical rise for every 4 units of horizontal distance. Larger horizontal numbers indicate gentler slopes.

Horizontal distance is measured straight across level ground between two points. Slope length is the actual straight-line distance along the inclined surface and is therefore usually longer.

Slope measurements help assess drainage, grading, roads, driveways, ramps, foundations, and earthwork requirements. They also support comparisons with design specifications and accessibility standards.
