Birdsmouth Cut Calculator

Calculate roof angle, rafter lengths, seat cut, notch depth, heel clearance, and notch compliance based on provided roof and framing dimensions. Birdsmouth Cut Calculator helps roofers, builders, framers, and DIY renovators accurately lay out safe rafter birdsmouth cuts.

Highlights

  • Calculate roof angle, pitch, and rafter geometry with ease.
  • Determine accurate rafter lengths to the ridge and including overhang.
  • Calculate birdsmouth seat cut length and notch depth.
  • Check maximum permitted notch depth and remaining heel depth.
  • Identify notch compliance with clear utilization percentage results.

Table of Contents

  1. How Birdsmouth Cut Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Birdsmouth Cut Calculator Works?

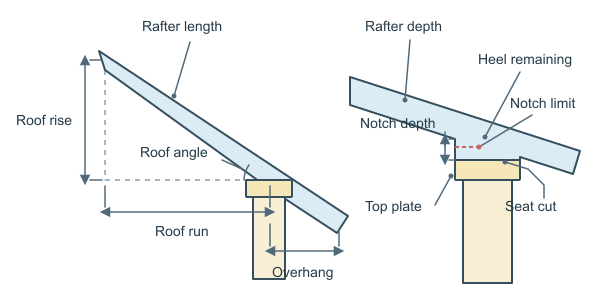

The Birdsmouth Cut Calculator uses the entered roof rise and roof run to determine the roof angle and rafter slope. It then uses the roof span, top plate width, rafter depth, horizontal overhang, and allowable notch percentage to calculate the main rafter and birdsmouth dimensions.

Roof Angle=tan−1(Roof RiseRoof Run)

The horizontal run from the supporting wall to the ridge is based on half of the total roof span:

Horizontal Run to Ridge=Roof Span2

The vertical rise to the ridge applies the entered pitch ratio to this calculated horizontal run. The rafter length is the hypotenuse of the resulting right triangle.

Vertical Rise to Ridge=Horizontal Run to Ridge×Roof RiseRoof Run
Rafter Length to Ridge=Horizontal Run to Ridge2+Vertical Rise to Ridge2

The total rafter length adds the sloped length of the horizontal overhang. The overhang is projected along the rafter using the roof angle.

Total Rafter Length=Rafter Length to Ridge+Horizontal Overhangcos(Roof Angle)

For the birdsmouth, the seat cut length is set equal to the entered top plate width. The vertical notch depth is calculated from that horizontal seat length and the roof slope.

Birdsmouth Notch Depth=Seat Cut Length×Roof RiseRoof Run

The allowable notch check compares the calculated notch with the selected percentage of rafter depth:

Maximum Permitted Notch Depth=Rafter Depth×Maximum Notch Percentage100
Remaining Heel Depth=Rafter Depth−Birdsmouth Notch Depth

Notch depth utilization expresses the calculated notch as a percentage of the permitted depth. A result at or below 100% is within the selected numerical limit; a result above 100% exceeds it.

Notch Depth Utilization=Birdsmouth Notch DepthMaximum Permitted Notch Depth×100

OutputCalculation basis
Roof AngleInverse tangent of roof rise divided by roof run
Rafter Length to RidgeRight-triangle hypotenuse from the half-span and ridge rise
Total Rafter LengthRafter length to ridge plus sloped overhang length
Seat Cut LengthEntered top plate width
Notch DepthSeat cut length multiplied by the roof slope
Notch Depth UtilizationCalculated notch depth divided by permitted notch depth

Practical Use Cases

Roofers can use the calculator to determine the roof angle, rafter length to the ridge, total rafter length with overhang, and birdsmouth dimensions before marking individual rafters.

Framing contractors can evaluate whether a planned notch depth stays within the selected percentage of the rafter depth and verify the remaining heel depth at the wall plate.

Builders can use the span, rise, run, top plate width, and rafter depth inputs to develop a consistent rafter layout for a new roof or framing package.

DIY renovators can estimate the geometry needed for small roof extensions, porch roofs, sheds, and other projects that require a birdsmouth seat cut.

Architectural and construction students can compare roof pitch, triangle geometry, rafter length, and notch calculations while learning how roof framing dimensions relate to one another.

Accuracy and Limitations

The calculator provides mathematically consistent geometric results using the entered roof span, rise, run, overhang, top plate width, rafter depth, and notch percentage, with results subject to normal rounding. It assumes a symmetrical roof where the ridge is centered and the entered roof span is divided equally to obtain the run to the ridge. The seat cut is modeled as the full top plate width, and notch depth is calculated from that horizontal seat length and the roof slope. It does not account for ridge-board thickness, unequal roof slopes, fascia details, actual lumber imperfections, deflection, load conditions, fastening, bearing requirements, or local building-code exceptions. The notch utilization result is a numerical screening check and should not replace structural design or verification by a qualified building professional.

Quick Examples

Example #1: Standard Residential Roof

Example inputs for calculating birdsmouth geometry on a typical residential roof with a 6:12 pitch.

Example #2: Low-Slope Addition

Example inputs for checking rafter length and notch limits on a low-slope roof addition.

Example #3: Steep Roof Framing

Example inputs for laying out birdsmouth cuts on a steep roof using metric framing dimensions.

Frequently Asked Questions

A birdsmouth cut is a notch made in a rafter where it rests on a wall plate. It typically consists of a horizontal seat cut and a vertical plumb cut.

The notch should be deep enough to provide stable bearing without excessively weakening the rafter. Local building codes commonly limit the notch to a specified percentage of the rafter’s depth.

Roof rise is the vertical height gained over a given distance, while roof run is the horizontal distance covered. Together, they define the roof pitch and slope.

The seat cut creates a flat bearing surface on the wall plate, helping transfer roof loads securely. It should provide full, even contact without extending beyond the supporting plate.

A qualified framer, builder, engineer, or local building official should verify the layout when structural loads, unusual roof designs, or code requirements are involved.
