Solar Panel Calculator

How Solar Panel Calculator Works?

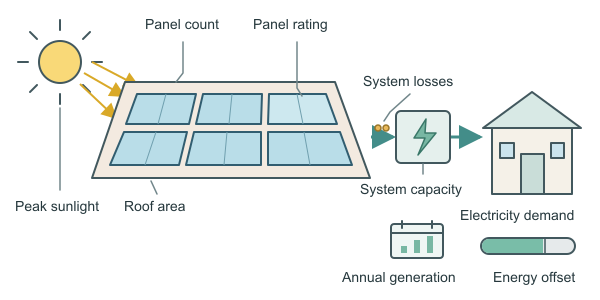

The Solar Panel Calculator estimates the photovoltaic system size needed to offset a selected share of annual electricity consumption. It combines annual demand, the target energy offset, average peak sun hours, system losses, panel rated power, panel area, and the usable fraction of the roof.

First, the calculator determines the annual solar energy target:

For example, an annual consumption of 10,000 kWh/year with a 100% target offset requires a target of 10,000 kWh/year. The effective performance factor after system losses is:

The estimated annual generation from one installed kilowatt of capacity is based on peak sun hours, 365 days per year, and the loss factor:

The required system capacity is then calculated by dividing the target annual energy by this specific yield:

The panel count is rounded up to a whole panel because a fractional panel cannot be installed:

After rounding, the calculator recomputes the installed capacity and expected generation from the actual panel count:

Average daily and monthly generation are estimated by dividing annual generation by 365 and 12, respectively. The physical panel area and estimated roof area are calculated as follows:

Specific energy yield compares annual generation with installed capacity, while actual energy offset uses the rounded system output:

Practical Use Cases

Homeowners can estimate how many panels are needed to offset a chosen percentage of household electricity consumption, then compare the panel surface area and estimated roof area with the available roof space.

Commercial building owners can model larger annual electricity demands and evaluate the required system capacity, expected generation, and actual energy offset for offices, retail premises, or warehouses.

Solar installers can use the calculator for an initial sizing discussion by testing different panel power ratings, peak sun hours, system loss assumptions, and roof utilization percentages before detailed engineering.

Architects and property developers can estimate the roof area needed for photovoltaic panels during early building design and assess whether setbacks, walkways, and other clearances leave enough usable space.

Renewable energy planners can compare specific energy yield and estimated generation across locations or system configurations while accounting for expected losses and the desired energy offset.

Accuracy and Limitations

The calculator provides a planning-level estimate using constant average peak sun hours, 365 days per year, a single system-loss percentage, fixed panel power, and a simple roof-utilization factor. It does not model hourly or seasonal irradiance, panel orientation and tilt, changing weather, partial shading, snow, degradation, battery storage, export limits, inverter clipping, roof geometry, or local electricity tariffs. Because panel count is rounded up, the actual energy offset may be slightly higher than the selected target, but real-world generation can be lower or higher than the estimate depending on site conditions and equipment performance; a qualified installer should verify the design with a site survey and detailed production analysis.
