Fuel Pump Calculator

Calculate required and recommended fuel pump flow based on engine power, BSFC, duty cycle, safety margin, fuel density, and operating pressure. Fuel Pump Calculator helps vehicle owners, tuners, and mechanics select suitable fuel pump capacity for performance and replacement applications.

Highlights

  • Estimate the fuel pump capacity needed for your engine’s power output.
  • Adjust calculations using BSFC, pump duty cycle, and safety margin.
  • Convert fuel requirements into mass flow and pump volume flow.
  • Support multiple power, fuel density, pressure, and flow units.
  • Select a pump based on recommended flow at your operating pressure.

Table of Contents

  1. How Fuel Pump Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Fuel Pump Calculator Works?

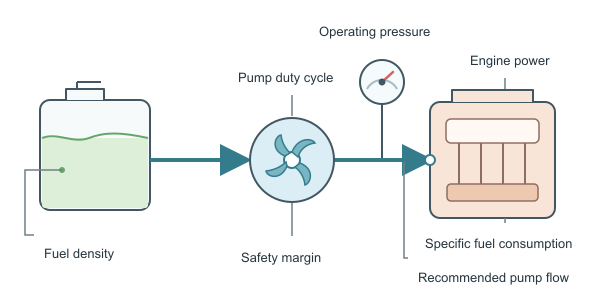

The Fuel Pump Calculator estimates the fuel delivery capacity an engine requires from its power output, brake specific fuel consumption (BSFC), pump duty cycle, safety margin, fuel density, and operating pressure. Engine power and BSFC must be entered using compatible units so that the resulting fuel mass flow is meaningful.

First, the calculator determines the base fuel mass flow by multiplying engine power by BSFC:

Base Fuel Mass Flow=Engine Power×BSFC

The recommended fuel mass flow adds the selected safety margin and compensates for the fact that the pump should not operate continuously at 100% of its capacity:

Recommended Fuel Mass Flow=Base Fuel Mass Flow×(1+Safety Margin100)Pump Duty Cycle100

For example, a 15% safety margin multiplies the base requirement by 1.15, while an 85% duty cycle divides the result by 0.85. The required pump volume is then calculated from the recommended mass flow and the entered fuel density:

Recommended Pump Flow=Recommended Fuel Mass FlowFuel Density

The operating pressure identifies the pressure at which the pump must provide the calculated flow. It is reported as the pump operating pressure and serves as a required point for comparing the result with a manufacturer's pump-flow curve.


ValueRole in the calculation
Engine PowerRepresents the engine's rated output.
BSFCIndicates fuel mass required for each unit of produced power.
Pump Duty CyclePrevents sizing the pump for continuous operation at its maximum capacity.
Safety MarginAdds capacity for tuning changes, voltage variation, and future modifications.
Fuel DensityRelates the required fuel mass flow to pump volume flow.
Operating PressureDefines the pressure at which the pump must deliver the recommended flow.

Practical Use Cases

Vehicle owners can estimate whether a replacement fuel pump has enough capacity for an upgraded engine or a higher-output factory configuration. The result provides a target pump flow and the pressure that the pump must maintain, making it easier to compare replacement specifications.

Performance tuners can use the calculator when increasing engine power, changing engine calibration, or planning future modifications. Adjusting BSFC, safety margin, and duty cycle shows how much additional fuel delivery capacity should be reserved before selecting a pump.

Mechanics and installers can use the calculated mass-flow and volume-flow requirements as a screening tool during fuel-system work. Entering the engine's rated power, fuel characteristics, and operating pressure helps identify pumps that may be undersized for the intended application.

Accuracy and Limitations

The calculator provides an estimate rather than a substitute for an engine-specific fuel-flow test or manufacturer pump curve. Accuracy depends mainly on the selected BSFC, which varies with engine design, fuel type, tuning, load, and operating conditions. The result also assumes the entered engine power represents the actual operating requirement and that the pump can maintain the stated flow at the specified operating pressure. Voltage, wiring losses, filter restriction, regulator behavior, fuel temperature, tank level, and injector requirements are not modeled directly, so the recommended value should be checked against the pump manufacturer's flow rating at the exact pressure and electrical conditions.

Quick Examples

Example #1: Street Performance Setup

Estimate the fuel pump capacity for a naturally aspirated street engine with moderate power and a typical safety margin.

Example #2: Turbocharged Upgrade

Calculate fuel delivery requirements for a turbocharged engine after a performance upgrade.

Example #3: High-Power Race Engine

Determine the recommended fuel pump flow for a high-output competition engine operating at elevated fuel pressure.

Frequently Asked Questions

The required flow depends on engine power, brake-specific fuel consumption, fuel type, operating pressure, and the desired safety margin. Always compare the pump’s flow rating at your actual operating pressure.

BSFC indicates how much fuel an engine uses to produce a unit of power over time. Naturally aspirated, turbocharged, supercharged, gasoline, and diesel engines can have different BSFC values.

A fuel pump generally delivers less volume as fuel-system pressure rises. This is why pump ratings should be checked at the pressure required by the engine rather than at free-flow conditions.

A margin helps account for voltage variation, fuel temperature, filter restriction, tuning changes, and future modifications. The appropriate amount depends on the vehicle, fuel system, and expected operating conditions.

Continuous operation near maximum capacity can increase heat, wear, and the risk of inadequate fuel delivery. Selecting a pump with reserve capacity can improve reliability and support future power increases.
