Torus Surface Area Calculator

How Torus Surface Area Calculator Works?

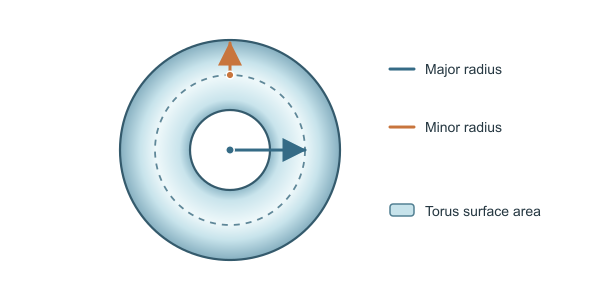

A torus is formed by rotating a circle of radius r, called the minor radius, around an external axis in the same plane. The distance from the torus's central axis to the center of the circular tube is the major radius, R. The calculator uses the total curved surface-area formula:

Here, A is the torus surface area, R is the major radius, and r is the minor radius. This result can also be understood using Pappus's centroid theorem: the circumference of the generating circle is $2\pi r$, and its center travels a distance of $2\pi R$. Multiplying these quantities gives $4\pi Rr$.

For example, using a major radius of 5 and a minor radius of 2:

The calculator accepts both radii as decimal values from 0.000001 to 1,000,000. The minor radius should be less than or equal to the major radius, and the result is reported as a squared unit such as m², cm², in², or ft².

Practical Use Cases

Students can use the calculator to check geometry exercises involving surfaces of revolution and compare a hand calculation with the formula $A=4\pi Rr$.

Engineers can estimate the external area of toroidal components, seals, pipes, tanks, and other ring-shaped parts when evaluating material requirements or surface treatments.

Product and industrial designers can calculate the outside area of doughnut-shaped handles, rounded housings, decorative rings, and other toroidal forms during early design work.

Educators can use different major- and minor-radius values to demonstrate how changing either radius affects the total surface area of a torus.

Manufacturers and fabricators can obtain a quick theoretical area estimate for coating, painting, polishing, or finishing a toroidal object before applying process-specific allowances.

Accuracy and Limitations

The calculator accurately evaluates the ideal mathematical formula $A=4\pi Rr$ using the entered decimal radii and the numerical value of π. Its result represents the complete curved surface of a standard torus with circular cross-section; it does not include separate openings, mounting features, seams, wall thickness, surface roughness, or manufacturing allowances, and it does not calculate volume or planar areas. Values must be positive and the minor radius must not exceed the major radius; when the two radii are equal, the shape is the limiting horn-torus case rather than a conventional ring-shaped torus.
