Binary Fraction Converter
Calculate decimal, octal, hexadecimal, and percentage equivalents based on the provided binary fraction. Binary Fraction Converter helps students, programmers, and engineers verify numerical base conversions.
Highlights
- Convert binary fractions into decimal, octal, hexadecimal, and percentage formats.
- Supports binary numbers with optional fractional points.
- Provides normalized binary output for easy verification.
- Useful for students, programmers, engineers, and digital systems work.
- Delivers fast, accurate base-conversion results in one place.
Table of Contents

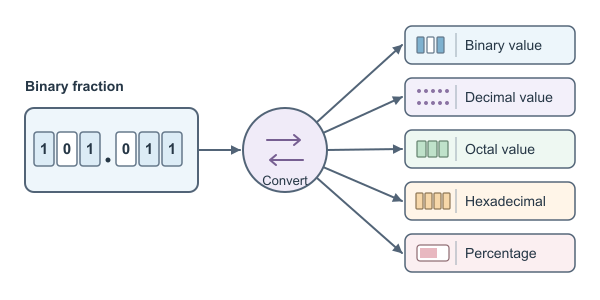

How Binary Fraction Converter Works?
The Binary Fraction Converter interprets the entered value as a base-2 number. Digits to the left of the binary point use powers of two with nonnegative exponents, while digits to the right use negative exponents. For a binary value such as 101.1012, each digit is multiplied by its positional weight and the results are added.
The converter produces several equivalent representations from the same binary value:
| Output | Calculation or representation | Example for 101.1012 |
|---|---|---|
| Binary Value | Normalized base-2 form | 101.101 |
| Decimal Value | Sum of powers of two | 5.625 |
| Octal Value | Group binary digits in sets of three from the binary point | 5.58 |
| Hexadecimal Value | Group binary digits in sets of four from the binary point | 5.A16 |
| Percentage | Decimal value multiplied by 100 | 562.5% |
Octal conversion works by grouping each side of the binary point into three bits, and hexadecimal conversion uses groups of four bits. Missing positions at the ends of a group are filled with zeros, without changing the value. The percentage output expresses the interpreted numeric value as a percentage.
Practical Use Cases
Students can enter classroom exercises such as 1101.01 and compare the decimal, octal, and hexadecimal results with hand calculations. This provides a quick way to check positional-weight arithmetic and understand how fractional binary digits represent values such as one-half and one-quarter.
Programmers can use the converter to verify binary constants before using them in source code, bit masks, fixed-point values, or debugging output. The hexadecimal result is especially useful because groups of four binary digits map directly to one hexadecimal digit.
Digital electronics engineers can validate binary measurements and control values when moving between binary logic, octal notation, and hexadecimal notation. The fractional result helps when a binary value contains bits to the right of the binary point.
Computer engineering instructors can demonstrate the relationship among positional bases with a single input. For example, 101.101 shows how the same value can be represented as 5.625 in decimal, 5.5 in octal, and 5.A in hexadecimal.
Accuracy and Limitations
The mathematical conversion is exact for valid binary inputs containing only 0, 1, and an optional fractional point, but the displayed decimal, octal, hexadecimal, and percentage values may be rounded when the calculator or browser stores the input as a floating-point number. Binary fractions with a finite number of digits convert exactly in base 2, although their decimal form may require many digits. The calculator accepts nonnegative values within its supported range, up to 1111111111111111.1111111111, and it does not accept negative values, nonbinary digits, or multiple fractional points. Very long inputs may also be limited by numeric precision and display formatting.
Quick Examples
Example #1: Simple Binary Fraction
Convert a basic binary fraction into equivalent numerical formats for learning and verification.
Example #2: Small Fractional Value
Analyze a binary value with a fractional component less than one.
Example #3: Larger Binary Number
Convert a larger binary fraction for programming and digital systems calculations.
