Bilinear Interpolation Calculator

Calculate the interpolated value, coordinate fractions, and corner weights based on eight rectangle coordinates and corner values. Bilinear Interpolation Calculator helps students, engineers, developers, and analysts estimate values across rectangular data grids.

Highlights

  • Estimate values at any point inside a rectangular grid.
  • Enter four corner values and target coordinates for quick interpolation.
  • Displays normalized X and Y interpolation fractions.
  • Shows each corner’s contribution weight to the final result.
  • Supports multiple coordinate units, including meters, feet, inches, and kilometers.

Table of Contents

  1. How Bilinear Interpolation Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Bilinear Interpolation Calculator Works?

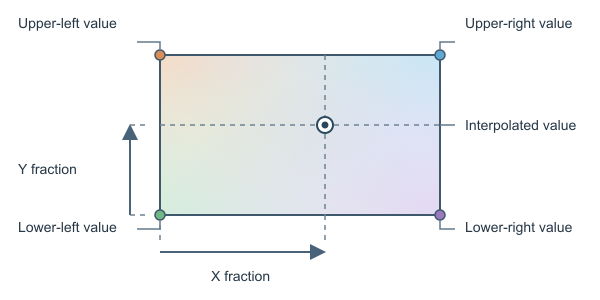

Bilinear interpolation estimates a value at a target point inside a rectangle using the four known corner values. The rectangle is defined by the minimum and maximum coordinates, x0, x1, y0, and y1. The corner values are z00 at (x0, y0), z10 at (x1, y0), z01 at (x0, y1), and z11 at (x1, y1).

First, the calculator normalizes the target position within the rectangle to obtain the horizontal and vertical interpolation fractions.

tx=x−x0x1−x0,ty=y−y0y1−y0

These fractions determine how strongly each corner contributes to the result. The four corner weights are calculated as follows:

w00=(1−tx)(1−ty)w10=tx(1−ty)w01=(1−tx)tyw11=txty

The interpolated value is the weighted sum of the four corner values:

z=w00z00+w10z10+w01z01+w11z11

For example, with the default coordinates, tx = 0.4 and ty = 0.6. The weights are 0.24, 0.16, 0.36, and 0.24 for the lower-left, lower-right, upper-left, and upper-right corners, respectively. Using corner values of 10, 20, 30, and 40 produces an interpolated value of 26. The weights always add to 1 when the target lies within the rectangle.


OutputMeaning
Interpolated ValueEstimated value at the target coordinate.
X and Y Interpolation FractionsNormalized horizontal and vertical positions within the rectangle.
Corner WeightsIndividual contributions of the four supplied corner values.

Practical Use Cases

Students can use the calculator to verify hand calculations in coordinate geometry, numerical methods, and interpolation lessons. The displayed fractions and corner weights make it easier to trace each stage of the calculation.

Engineers can estimate a value at a location between four measured points, such as a temperature, pressure, elevation, or material property sampled on a rectangular grid.

Software developers can use the results to test bilinear interpolation routines in graphics, simulations, mapping applications, and grid-based data processing systems.

Data analysts can estimate missing or unsampled values within a rectangular data grid while inspecting how much each neighboring observation contributes to the estimate.

Accuracy and Limitations

The calculator evaluates the bilinear interpolation formula directly from the entered coordinates and corner values, subject to normal floating-point rounding. It is designed for a non-degenerate rectangular boundary, so x1 must differ from x0 and y1 must differ from y0; the target coordinate should lie between the corresponding minimum and maximum values. The method assumes the value changes linearly along each horizontal and vertical direction, so it may be inaccurate where the underlying surface is strongly curved, discontinuous, or affected by sharp local variation. It also does not account for measurement errors in the four corner values and should not be treated as a substitute for a denser data grid when higher fidelity is required.

Quick Examples

Example #1: Terrain Elevation Grid

Estimate terrain elevation at a target location inside a rectangular survey grid.

Example #2: Temperature Surface

Interpolate temperature at a point within a rectangular laboratory measurement area.

Example #3: Fluid Pressure Map

Calculate fluid pressure at a selected position within a rectangular pressure grid.

Frequently Asked Questions

Bilinear interpolation estimates a value at a point inside a rectangle using the four known values at its corners. It performs linear interpolation along both coordinate directions.

It is often used in image scaling, geographic data processing, computer graphics, temperature mapping, and engineering simulations.

Yes. A point on an edge uses the two adjacent corner values, while a point at a corner returns that corner's known value.

The result becomes an extrapolation rather than an interpolation and may be less reliable. For best results, keep the target coordinates within the specified rectangular boundaries.

Use consistent units for all horizontal coordinates and consistent units for all vertical coordinates. The four corner values should also use the same unit or measurement scale.
