Direction of the Vector Calculator

Calculate vector components, magnitude, normalized components, direction angle, and bearing based on provided initial and terminal coordinates. Direction of the Vector Calculator helps students, engineers, physicists, and mathematicians analyze vector orientation and displacement.

Highlights

  • Calculate vector components from initial and terminal coordinates.
  • Find vector magnitude and displacement with precision.
  • Determine direction angle in degrees, radians, grads, or turns.
  • Convert vector orientation into a compass bearing.
  • Generate normalized unit vector components for direction analysis.

Table of Contents

  1. How Direction of the Vector Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Direction of the Vector Calculator Works?

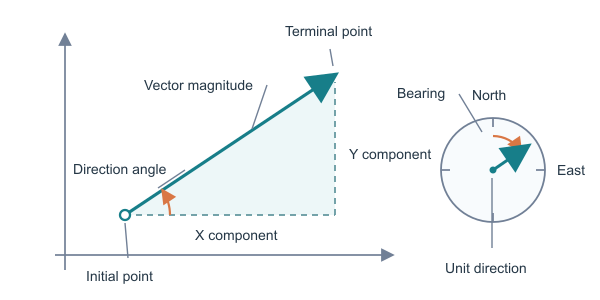

The calculator determines the vector from an initial point P1=(x1,y1) to a terminal point P2=(x2,y2). It first subtracts the initial coordinates from the terminal coordinates to obtain the horizontal and vertical components.

vx=x2-x1,vy=y2-y1

The vector magnitude is its Euclidean length, found using the Pythagorean theorem. The magnitude represents the displacement between the two coordinates.

|v|=vx2+vy2

To describe direction independently of length, the calculator divides each component by the magnitude to produce the unit vector. The unit vector has a magnitude of 1.

u=(vx|v|,vy|v|)

The direction angle is measured counterclockwise from the positive horizontal axis. The two-argument arctangent function correctly identifies the vector's quadrant.

θ=atan2(vy,vx)

The result is normalized to the calculator's direction-angle format, such as degrees, radians, gradians, or turns. A compass bearing is measured clockwise from north, so it is calculated from the same vector using the horizontal component as the east-west term and the vertical component as the north-south term.

b=mod(90°-θ,360°)

OutputMathematical meaning
X ComponentHorizontal displacement, vx
Y ComponentVertical displacement, vy
Vector MagnitudeLength of the vector, |v|
Unit Vector ComponentsNormalized direction components
Direction AngleCounterclockwise angle from the positive horizontal axis
Compass BearingClockwise angle measured from north

Practical Use Cases

Students: Students can enter the endpoints of a displacement vector to practice subtraction of coordinates, the distance formula, unit vectors, quadrant analysis, and trigonometric direction calculations. For example, the default points (0, 0) and (4, 3) produce components of 4 and 3, a magnitude of 5, and a direction angle of approximately 36.87 degrees.

Engineers: Engineers can use the calculator to resolve movement, force, or positioning data into horizontal and vertical components. The normalized components are useful when a known force or velocity must be applied along a particular geometric direction.

Physicists: Physicists can describe displacement or velocity between two coordinate positions, then use the magnitude and unit vector to separate how far an object moved from the direction in which it moved.

Mathematicians: Mathematicians can verify analytic-geometry results involving vectors, including vector length, normalized coordinates, angle conventions, and the relationship between Cartesian direction angles and compass bearings.

Navigation and mapping users: Users working with a coordinate plane can obtain a bearing-style orientation from one point to another. The bearing output treats the positive vertical direction as north and the positive horizontal direction as east.

Accuracy and Limitations

The calculator uses standard double-precision arithmetic, coordinate subtraction, the Euclidean distance formula, and the two-argument arctangent function, so results are generally accurate to the displayed decimal precision for inputs within the allowed range of -1,000,000,000 to 1,000,000,000. The initial and terminal coordinates must be expressed on the same coordinate scale for the components and magnitude to be meaningful. If both components are zero, the vector has zero magnitude and its unit-vector components, direction angle, and bearing are undefined because no direction exists. Direction angles and bearings also depend on the stated axis convention: the direction angle starts at the positive horizontal axis, while the bearing starts at north and increases clockwise.

Quick Examples

Example #1: Basic 3-4-5 Vector

Calculates the direction and magnitude of a vector starting at the origin and ending at (4, 3).

Example #2: Descending Diagonal Vector

Analyzes a vector with negative horizontal and vertical displacement between two points.

Example #3: Long-Distance Northeast Vector

Determines the magnitude, bearing, and direction of a vector represented by kilometer-scale coordinates.

Frequently Asked Questions

The direction of a vector describes its orientation in a coordinate system. It is commonly expressed as an angle measured from the positive x-axis or as a compass bearing.

Subtract the initial coordinates from the terminal coordinates: the x-component is x₂ − x₁, and the y-component is y₂ − y₁.

Magnitude is the vector’s length, while direction indicates where the vector points. Together, they fully describe a vector in two-dimensional space.

A unit vector has a magnitude of one and preserves the direction of the original vector. Its components are found by dividing each vector component by the vector’s magnitude.

The resulting vector has zero magnitude and no unique direction. A unit vector and direction angle cannot be defined for a zero vector.
