Complex Number to Rectangular Form Calculator

Calculate real and imaginary components based on magnitude and phase angle. Complex Number to Rectangular Form Calculator helps students, engineers, and mathematicians convert polar complex numbers for analysis and computation.

Highlights

  • Convert complex numbers from polar form to rectangular form.
  • Calculate real and imaginary components accurately.
  • Support phase angles in degrees, radians, gradians, or turns.
  • Handle magnitudes ranging from 0 to 1 trillion.
  • Display results in standard rectangular notation.

Table of Contents

  1. How Complex Number to Rectangular Form Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Complex Number to Rectangular Form Works?

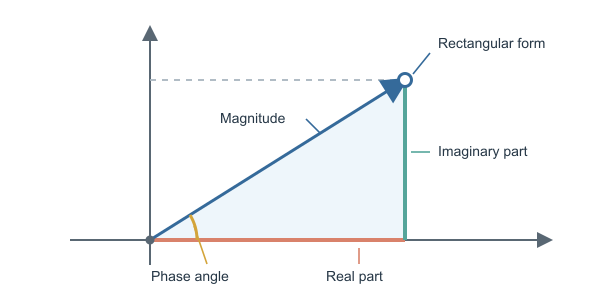

A complex number in polar form is described by its magnitude r and phase angle θ. The calculator resolves this number into its horizontal real component and vertical imaginary component. The polar representation is:

z=r(cos⁡θ+isin⁡θ)

Using rectangular notation, a complex number is written as z = x + iy, where x is the real part and y is the imaginary part. The calculator determines these components with:

x=rcos⁡θ,y=rsin⁡θ

The selected phase-angle format can be degrees, radians, grads, or turns. The resulting rectangular form is then assembled as x + yi, with the sign of each component determined by the quadrant of the angle.


ValueCalculationResult for r = 5 and θ = 53.13°
Real partrcos⁡θApproximately 3
Imaginary partrsin⁡θApproximately 4
Rectangular formx+iyApproximately 3 + 4i

A magnitude of zero produces a real part and imaginary part of zero, regardless of the phase angle.

Practical Use Cases

Students can use the calculator to check exercises involving complex-number geometry, trigonometric form, Euler-style representations, and algebraic operations that are easier to perform in rectangular form.

Electrical engineers can convert phasors representing alternating-current voltage or current into real and imaginary components for circuit analysis, impedance calculations, and signal studies.

Control and signal engineers can resolve frequency-domain quantities into in-phase and quadrature components when analyzing filters, system responses, or sinusoidal signals.

Mathematicians can use the result to move between polar and rectangular representations while studying complex-plane coordinates, roots, loci, and transformations.

Physics and engineering researchers can separate the directional components of a complex amplitude when working with wave behavior, oscillations, and other models that use magnitude and phase.

Accuracy and Limitations

The calculator uses the standard equations real part = magnitude × cos(phase angle) and imaginary part = magnitude × sin(phase angle), so results are mathematically accurate within normal floating-point and displayed-rounding limits. Magnitude inputs are supported from 0 to 1,000,000,000,000, with a configured step of 0.01. Phase angles may be entered as degrees, radians, grads, or turns, and the selected format must match the intended angle. Very large magnitudes, angles near quadrant boundaries, or results close to zero can show small last-digit rounding differences. When the magnitude is zero, the phase angle has no effect and the rectangular result is exactly 0 + 0i.

Quick Examples

Example #1: Positive Real and Imaginary Components

Converts a complex number with a magnitude of 5 and a phase angle of 53.13 degrees into rectangular form.

Example #2: Negative Imaginary Component

Converts a complex number with a negative phase angle, producing a positive real component and negative imaginary component.

Example #3: Full Rotation Angle

Converts a complex number specified with a phase angle in turns to demonstrate equivalent angle-unit support.

Frequently Asked Questions

Rectangular form expresses a complex number as \(a + bi\), where \(a\) is the real part, \(b\) is the imaginary part, and \(i^2 = -1\).

A complex number in polar form is written as \(r(\cos\theta + i\sin\theta)\), while its rectangular form is \(a + bi\). The components satisfy \(a = r\cos\theta\) and \(b = r\sin\theta\).

Angles may be expressed in degrees, radians, gradians, or turns. Ensure the selected unit matches the angle value being used.

The real part identifies the horizontal position on the complex plane, while the imaginary part identifies the vertical position along the imaginary axis.

Yes. Negative components indicate that the number lies to the left of the imaginary axis, below the real axis, or in a corresponding quadrant of the complex plane.
