Coordinate Distance Calculator
Calculate straight-line distance between two points based on their horizontal and vertical coordinates. Coordinate Distance Calculator supports students, engineers, surveyors, and analysts measuring spatial separation accurately.
Highlights
- Calculate the straight-line distance between two coordinate points.
- Uses the Euclidean distance formula for accurate results.
- Supports positive and negative coordinate values.
- Includes flexible unit options from nanometers to miles.
- Useful for students, engineers, surveyors, and analysts.
Table of Contents
How Coordinate Distance Calculator Works?

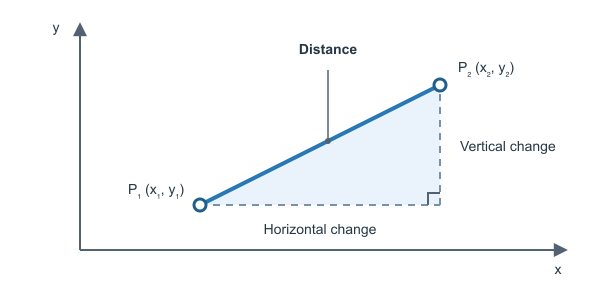

The Coordinate Distance Calculator finds the shortest straight-line distance between two points on a two-dimensional coordinate plane. The first point is represented as (x1, y1), and the second point is represented as (x2, y2). The horizontal separation is x2 − x1, while the vertical separation is y2 − y1.
This is the Euclidean distance formula, which comes from the Pythagorean theorem. The two coordinate differences form the perpendicular sides of a right triangle, and the calculated distance is its hypotenuse. For example, for point 1 at (0, 0) and point 2 at (3, 4), the result is √(3² + 4²) = 5. The calculator accepts decimal coordinates from −1,000,000,000 to 1,000,000,000 and provides the distance using the selected supported coordinate scale, including nm, μm, mm, cm, m, km, in, ft, yd, mi, and nmi.
Practical Use Cases
Students can use the calculator to verify geometry, algebra, and coordinate-plane exercises involving the distance between two plotted points. It is also useful for checking work based on the Pythagorean theorem.
Engineers can estimate straight-line separation between design points, reference locations, sensors, or components in a two-dimensional model. The result can support preliminary layouts and technical calculations.
Surveyors can calculate the planar distance between two coordinate locations when evaluating site layouts, boundary points, mapping references, or construction measurements.
Analysts can measure spatial separation between data points in a two-variable chart, simulation, or geographic model when a direct Euclidean distance is appropriate.
Accuracy and Limitations
The calculator applies the exact two-dimensional Euclidean distance formula to the entered coordinate values and supports decimal inputs in the range −1,000,000,000 to 1,000,000,000, with input steps of 0.01. Its result is limited by the precision of the supplied coordinates and the displayed numerical precision. Both points must be interpreted within the same two-dimensional coordinate system and consistent selected scale. The output represents a straight-line planar distance only; it does not account for roads, terrain, elevation, curvature, obstacles, or other real-world paths and geographic effects.
Quick Examples
Example #1: Basic 3-4-5 Triangle
Demonstrates the classic distance calculation between two points separated by 3 meters horizontally and 4 meters vertically.
Example #2: Surveying Distance
Estimates the straight-line separation between two points measured in kilometers for a surveying application.
Example #3: Engineering Coordinate Check
Calculates the distance between two engineering reference points using coordinates expressed in millimeters.
