Convolution Calculator
Calculate seven output terms based on two provided four-term discrete sequences. Convolution Calculator helps students, engineers, and researchers analyze discrete signal combinations and sequence operations.
Highlights
- Calculate seven convolution terms from two four-term discrete sequences.
- Enter custom sequence coefficients with support for positive and negative decimal values.
- Analyze sequence combinations for mathematics, engineering, and signal processing.
- View each convolution output term from y₀ through y₆.
- Quickly evaluate discrete sequence operations with clear, unitless results.
Table of Contents
How Convolution Calculator Works?

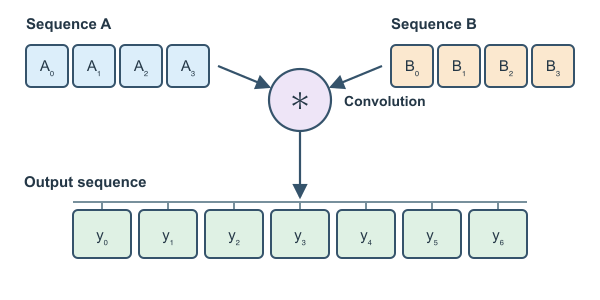

The Convolution Calculator computes the seven-term linear discrete convolution of two four-term sequences. If A = [A0, A1, A2, A3] and B = [B0, B1, B2, B3], the output sequence is y = A * B. Each output term is formed by multiplying overlapping coefficients and adding the products.
For indices outside the range 0 through 3, the sequence values are treated as zero. This produces 4 + 4 − 1 = 7 output terms, indexed from y0 through y6.
| Output | Calculation |
|---|---|
| y0 | A0B0 |
| y1 | A0B1 + A1B0 |
| y2 | A0B2 + A1B1 + A2B0 |
| y3 | A0B3 + A1B2 + A2B1 + A3B0 |
| y4 | A1B3 + A2B2 + A3B1 |
| y5 | A2B3 + A3B2 |
| y6 | A3B3 |
For example, using the default sequences A = [1, 2, 3, 4] and B = [1, 0, 1, 0], the calculator returns y = [1, 2, 4, 6, 5, 4, 0]. All input coefficients are unitless values and may be entered as positive, negative, or decimal numbers within the supported range.
Practical Use Cases
Students can use the calculator to verify hand calculations for discrete convolution, polynomial multiplication, summation indexes, and sequence operations. Entering small integer sequences makes it easier to compare each overlapping multiplication step with the seven displayed output terms.
Electrical and signal-processing engineers can use it to model the finite response of a discrete-time system. One sequence can represent an input signal and the other a finite impulse response, allowing the resulting sequence to show how the system combines neighboring samples.
Researchers can use the calculator for quick checks of finite-sequence experiments, algorithm prototypes, and analytical derivations. It is useful for confirming expected convolution coefficients before implementing longer sequences or automated numerical workflows.
Software and data engineers can use it as a compact reference when testing convolution logic in code. Comparing program output with the calculator helps identify reversed indexes, omitted overlap terms, and sign or multiplication errors.
Accuracy and Limitations
The calculator applies the exact finite linear-convolution formulas for two sequences containing four coefficients each and returns seven terms, y0 through y6. Inputs are restricted to values from −100,000 to 100,000 with a supported step of 0.01, so sequences longer than four terms cannot be entered directly. Values outside the four defined indexes are assumed to be zero, and the calculation does not represent circular convolution, infinite sequences, rounding-error analysis, or a broader signal-processing model. Decimal results may also reflect normal floating-point display precision.
