Capacitive Reactance Calculator
Calculate capacitive reactance from the provided capacitance and frequency. Capacitive Reactance Calculator helps students, engineers, and technicians analyze AC circuit impedance and component behavior.
Highlights
- Calculate capacitive reactance from capacitance and frequency.
- Supports capacitance units from farads to picofarads.
- Accepts frequencies from hertz to gigahertz.
- Displays results in ohms, kilohms, or megohms.
- Ideal for AC circuit analysis, filtering, and impedance calculations.
Table of Contents
How Capacitive Reactance Works?

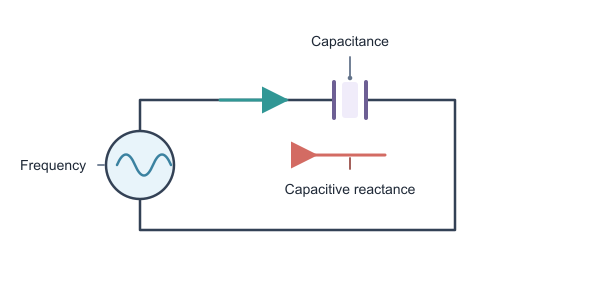

Capacitive reactance is the opposition a capacitor presents to alternating current. It is represented by XC and is measured in ohms (Ω). Unlike resistance, capacitive reactance depends on both the capacitance and the operating frequency. The calculator uses the capacitance and frequency values you enter to determine the capacitor's opposition to AC.
In this equation, XC is capacitive reactance, f is frequency, and C is capacitance. The angular-frequency form is XC = 1/(ωC), where ω = 2πf. As frequency or capacitance increases, capacitive reactance decreases, allowing the capacitor to oppose AC less strongly. The calculator accepts capacitance in F, mF, µF, nF, or pF and frequency in Hz, kHz, MHz, or GHz, and reports the result in Ω, kΩ, or MΩ.| Change in input | Effect on capacitive reactance |
|---|---|
| Increase frequency | Decreases XC |
| Increase capacitance | Decreases XC |
| Decrease frequency | Increases XC |
| Decrease capacitance | Increases XC |
Practical Use Cases
Students can use the calculator to check AC circuit exercises involving capacitors, such as finding the reactance of a 10 µF capacitor at 60 Hz and understanding why the result changes when the frequency is increased.
Electrical and electronics engineers can estimate capacitor behavior during filter, coupling, decoupling, and impedance calculations. For example, comparing reactance at audio and radio frequencies helps assess whether a selected capacitor will significantly oppose the signal.
Technicians can use the result when troubleshooting AC equipment, checking whether a capacitor's expected opposition is consistent with its rated capacitance and the circuit's operating frequency.
Circuit designers can compare candidate capacitance values when selecting components for frequency-dependent networks. A larger capacitance produces lower capacitive reactance at the same frequency, which can affect signal paths and filter response.
Accuracy and Limitations
The calculator evaluates the ideal-capacitor equation XC = 1/(2πfC) using the entered capacitance and frequency, so its numerical result is accurate for positive values within the supported input ranges. It does not model equivalent series resistance, leakage, dielectric loss, parasitic inductance, capacitor tolerance, self-resonant frequency, temperature effects, or frequency-dependent changes in the actual component. Because frequency and capacitance must be greater than zero, zero or negative inputs are not physically valid for this calculation, and the result should not be treated as the complete impedance of a real capacitor.
Quick Examples
Example #1: Standard Household AC
Calculate the capacitive reactance of a 10 µF capacitor operating at a 60 Hz power-line frequency.
Example #2: Audio Filtering
Determine the reactance of a 100 nF capacitor at a 1 kHz audio frequency.
Example #3: High-Frequency Circuit
Calculate the capacitive reactance of a 22 pF capacitor in a 100 MHz circuit.
