Delta to Wye Conversion

Calculate three equivalent wye branch values from provided delta branch values. Delta to Wye Conversion helps electrical engineers, technicians, and students simplify three-phase circuit analysis.

Highlights

  • Converts delta branch values into equivalent wye values.
  • Calculates wye branches A, B, and C simultaneously.
  • Supports resistance and impedance values.
  • Accepts units from nanoohms to gigaohms.
  • Useful for simplifying three-phase circuit analysis.

Table of Contents

  1. How Delta to Wye Conversion Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Delta to Wye Conversion Works?

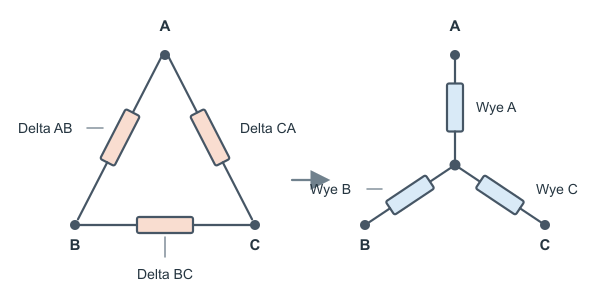

A delta network has three branches connecting terminals A-B, B-C, and C-A. The equivalent wye network replaces those branches with three branches connected from terminals A, B, and C to a common neutral point. The conversion preserves the electrical behavior seen at the three external terminals.

Let ZAB, ZBC, and ZCA represent the entered delta branch values. First, calculate their sum:

S=ZAB+ZBC+ZCA

Each wye branch is the product of the two delta branches that touch its corresponding terminal, divided by the sum of all three delta branches:

ZA=ZAB⁢ZCASZB=ZAB⁢ZBCSZC=ZBC⁢ZCAS

For example, with delta branch values of 10, 20, and 30, the sum is 60. The resulting wye branches are 5 for branch A, approximately 3.3333 for branch B, and 10 for branch C.


ResultCalculationValue
Wye Branch A(10 × 30) ÷ 605
Wye Branch B(10 × 20) ÷ 603.3333
Wye Branch C(20 × 30) ÷ 6010

The calculator accepts positive float values for each delta branch and supports values labeled nΩ, µΩ, mΩ, Ω, kΩ, MΩ, and GΩ. The three calculated outputs are Wye Branch A, Wye Branch B, and Wye Branch C.

Practical Use Cases

Electrical engineers: Engineers can convert delta-connected impedances into an equivalent wye arrangement when simplifying three-phase networks, analyzing line currents, or combining the network with other star-connected circuit elements.

Electrical technicians: Technicians can use the calculator to check equivalent branch values during troubleshooting, design verification, and maintenance of equipment containing three-terminal resistor or impedance networks.

Electrical engineering students: Students can verify hand calculations for delta-wye transformations and compare the effects of balanced and unbalanced delta branch values in circuit-analysis exercises.

Power-system designers: Designers can use the conversion when modeling three-phase loads and translating between common network representations during preliminary calculations and schematic development.

Accuracy and Limitations

The calculator applies the exact delta-to-wye algebraic formulas using the entered floating-point values, so results are highly accurate within normal numerical precision. Inputs must be positive and within the supported range of 0.000001 to 1,000,000,000,000. Because the calculator accepts scalar float values, it does not model complex impedances with separate resistance and reactance components, frequency-dependent behavior, measurement uncertainty, or nonideal component effects. A zero-valued branch is not accepted, and the three inputs must use a consistent electrical quantity for the results to be meaningful.

Quick Examples

Example #1: Balanced Delta Network

Convert three equal delta resistances into equivalent wye branches.

Example #2: Unequal Resistance Conversion

Determine equivalent wye branch values for an unbalanced delta resistance network.

Example #3: Mixed-Scale Impedance Network

Convert delta branch impedances expressed using different metric units into equivalent wye values.

Frequently Asked Questions

A delta connection forms a closed triangle between three terminals, while a wye connection uses three branches joined at a common neutral point. Both can represent equivalent three-terminal networks.

Yes. The conversion applies to complex impedances, including both resistance and reactance, provided all branch values use consistent units and reference conventions.

No. Delta and wye networks may be balanced or unbalanced. Each branch value can be different, and the corresponding wye values will reflect those differences.

Values may be expressed in units such as nano-ohms, micro-ohms, milliohms, ohms, kilohms, megohms, or gigaohms. Use the same unit system for all three branches to avoid input errors.

Reconnect the resulting wye network between terminals A, B, and C and compare its equivalent impedance with the original delta network. For a balanced network, the corresponding wye branch values should follow the expected one-third relationship.
