555 Timer Calculator

Calculate oscillation frequency, high time, low time, period, and duty cycle from timing resistance and capacitance values. 555 Timer Calculator helps electronics students, hobbyists, and engineers design and verify astable oscillator circuits.

Highlights

  • Calculate 555 astable oscillator frequency with ease.
  • Determine total period, high time, and low time.
  • Calculate output duty cycle and mark-space ratio.
  • Supports resistor values from ohms to megaohms.
  • Accepts capacitor values from picofarads to farads.

Table of Contents

  1. How 555 Timer Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How 555 Timer Calculator Works?

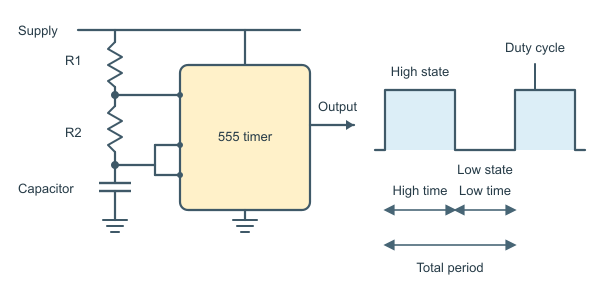

The 555 Timer Calculator models a conventional 555 astable oscillator using timing resistor R1, timing resistor R2, and timing capacitor C. The capacitor repeatedly charges through R1 and R2 and discharges through R2, causing the output to alternate between high and low states.

The output high time is determined by the capacitor charging interval:

thigh=0.693(R1+R2)C

During discharge, the capacitor discharges through R2, so the output low time is:

tlow=0.693R2C

The total period is the sum of the high and low intervals:

T=thigh+tlow=0.693(R1+2R2)C

Frequency is the reciprocal of the period:

f=1T=1.44(R1+2R2)C

Duty cycle expresses the percentage of each period for which the output is high:

D=thighT×100=R1+R2R1+2R2×100%

The mark-space ratio compares the high interval with the low interval:

Mark-space ratio=thightlow=R1+R2R2

Calculated quantityFormula
Output high time0.693(R1 + R2)C
Output low time0.693R2C
Total period0.693(R1 + 2R2)C
Oscillation frequency1.44/[(R1 + 2R2)C]
Duty cycle100(R1 + R2)/(R1 + 2R2)

The calculator accepts R1 and R2 in Ω, kΩ, or MΩ and the timing capacitor in pF, nF, µF, mF, or F. Results can be displayed as frequency, period, high time, and low time using the available Hz, kHz, MHz, ns, µs, ms, and s output choices, along with duty cycle as a percentage and mark-space ratio.

Practical Use Cases

Electronics students can enter resistor and capacitor values to verify classroom calculations for 555 astable circuits. For example, changing R2 shows how the discharge interval affects the low time, period, duty cycle, and resulting frequency.

Hobbyists and makers can use the calculator when building LED flashers, audible tone generators, clock sources, or simple pulse generators. The high time and low time results help determine whether an LED blinks visibly or whether a connected buzzer receives the intended timing pattern.

Electronic engineers and circuit designers can estimate oscillator behavior during initial component selection. Frequency, period, duty cycle, and mark-space ratio provide a quick way to compare candidate timing networks before confirming the design with component tolerances and a circuit simulation or prototype.

Technicians and repair professionals can compare measured timing behavior with the expected output of an existing 555 astable circuit. Entering the installed R1, R2, and C values gives reference values for identifying incorrect components or timing-related faults.

Accuracy and Limitations

The calculator uses the standard ideal astable 555 equations and the nominal logarithmic timing constant of 0.693, so its results are suitable for first-pass design and verification. Actual frequency and timing can differ because of resistor and capacitor tolerances, capacitor leakage, 555 threshold and trigger-level variation, discharge-transistor saturation, supply-voltage effects, output loading, and the specific behavior of bipolar versus CMOS 555 devices. It assumes the conventional astable connection, positive resistance and capacitance values within the stated input ranges, and does not model startup behavior, control-voltage modulation, waveform rise and fall times, or the practical upper-frequency limits of the timer. The standard two-resistor astable arrangement also produces a duty cycle above 50% because R1 contributes to the charging interval but not the discharge interval.

Quick Examples

Example #1: LED Flasher

A slow astable oscillator design for periodically blinking an LED.

Example #2: Audio Tone Generator

A 555 astable configuration for generating an audible square-wave tone.

Example #3: Long-Duration Pulse

A low-frequency oscillator design for producing extended high and low timing intervals.

Frequently Asked Questions

A 555 timer can generate pulse signals, delays, oscillations, and timed switching actions. It is widely used in LED flashers, tone generators, pulse-width controllers, and basic timing circuits.

Increasing either timing resistance or capacitance generally increases the timing period and lowers the oscillation frequency. Lower values produce faster oscillation.

Frequency describes how many complete cycles occur per second, while duty cycle indicates the percentage of each cycle that the output remains high.

Differences can result from component tolerances, capacitor leakage, supply-voltage effects, wiring, temperature, and variations between 555 timer devices.

The duty cycle can be changed by altering the relationship between the timing resistors or by adding steering diodes to create separate charge and discharge paths.
