Boost Converter Calculator

Calculate duty cycle, currents, inductance, capacitance, ripple, and stresses based on boost converter design inputs. Boost Converter Calculator helps engineers, students, and electronics hobbyists design and evaluate efficient voltage boosting circuits.

Highlights

  • Calculate boost converter duty cycle for a target output voltage.
  • Determine input and output currents based on power and efficiency.
  • Size the required inductor and output capacitor.
  • Estimate current ripple, peak currents, and output voltage ripple.
  • Evaluate switch voltage stress and diode current requirements.

Table of Contents

  1. How Boost Converter Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Boost Converter Calculator Works?

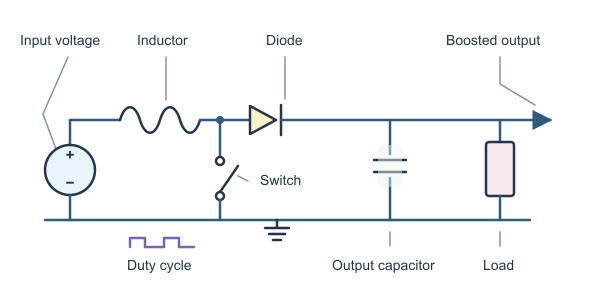

A boost converter raises an input voltage to a higher output voltage by storing energy in an inductor while the switch is on and releasing that energy through the diode when the switch is off. This calculator uses the input voltage, target output voltage, output power, efficiency, switching frequency, inductor-ripple percentage, allowable output-ripple percentage, and diode forward voltage to estimate operating conditions and component requirements.

The practical duty cycle accounts for the diode forward voltage. The effective voltage available at the converter output is the target output voltage minus the diode drop.

D=1-VinVout-VF

Output and input power are related through the selected efficiency. The average output current is obtained from the required output power, while input power and average input current describe the demand placed on the source.

Iout=PoutVout,Pin=Poutη,Iin=PinVin

The specified inductor-ripple percentage is applied to the average input current to obtain the peak-to-peak ripple current. The inductance is then estimated from the inductor voltage during the switch-on interval.

ΔIL=Iin×r100,L=Vin×Dfs×ΔIL

Here, r is the requested inductor-ripple percentage and fs is the switching frequency. Assuming a triangular ripple waveform, the peak and minimum inductor currents are:

Ipeak=Iin+ΔIL2,Imin=Iin-ΔIL2

The allowable output ripple is calculated as a percentage of the output voltage. The idealized capacitance estimate assumes that the capacitor supplies the load during the switch-on interval.

ΔVout=Vout×rv100,C=Iout×Dfs×ΔVout

For semiconductor selection, the estimated switch voltage stress is approximately the output voltage. The average switch current is modeled as the average input current multiplied by duty cycle, while the average diode current is approximated by the output current.


ResultCalculation basis
Duty CycleVoltage ratio including diode forward voltage
Output CurrentOutput power divided by output voltage
Input PowerOutput power divided by efficiency
InductanceInput voltage, duty cycle, frequency, and ripple current
Output CapacitanceOutput current, duty cycle, frequency, and allowable ripple voltage
Switch and diode currentsAverage-current approximations for preliminary design

Practical Use Cases

Power-electronics engineers can use the calculator for an initial boost-stage design by entering the source voltage, required output voltage and power, expected efficiency, and switching frequency. The resulting duty cycle, input current, inductance, capacitance, and semiconductor stresses provide starting values for detailed simulation and component selection.

Embedded-systems designers can estimate whether a battery-powered source can supply the current required by a higher-voltage rail. The input-current result helps assess source loading, while the ripple and capacitance estimates support early power-supply filtering decisions.

Renewable-energy developers can evaluate preliminary boost-converter requirements for photovoltaic panels, fuel-cell systems, or other variable-voltage sources. Duty cycle and current estimates help compare the source operating point with the desired DC-link or regulated output.

Electronics students can compare ideal boost-converter relationships with practical effects such as efficiency loss and diode forward voltage. Changing the switching frequency or ripple targets demonstrates how those choices affect the required inductor and output capacitor.

Hobbyists and prototype builders can obtain first-pass component ratings for custom voltage-boosting projects. Peak inductor current, minimum inductor current, switch voltage stress, and average diode current are useful checks before selecting parts and assembling a prototype.

Accuracy and Limitations

The calculator provides preliminary steady-state estimates based on a conventional boost converter, continuous-conduction assumptions, triangular inductor ripple, an efficiency entered by the user, and a simplified diode-drop model. The capacitance result represents the switching-related charge requirement and does not include capacitor equivalent series resistance, capacitor bias effects, transient response, control-loop behavior, layout parasitics, reverse-recovery effects, or temperature variation. The estimated switch voltage stress is approximately the output voltage and does not include overshoot, so practical designs should add an engineering margin and verify peak voltage and current with simulation or hardware measurements. A nonpositive minimum inductor current indicates that the continuous-conduction assumption may not hold.

Quick Examples

Example #1: 12 V to 24 V Supply

Design a compact boost converter for doubling a 12 V source to provide 24 V at 24 W.

Example #2: Portable Device Power Rail

Size a boost converter that raises a 5 V USB supply to 12 V for a portable electronic device.

Example #3: 24 V Industrial Rail

Evaluate a higher-power boost converter for increasing a 24 V input to 48 V at 240 W.

Frequently Asked Questions

A boost converter is a switching power supply that increases a lower DC input voltage to a higher DC output voltage. It is commonly used in battery-powered devices, renewable-energy systems, and portable electronics.

Increasing the duty cycle generally increases the output voltage of a boost converter. Higher duty cycles can also increase current stress and reduce efficiency, especially in practical circuits.

A higher switching frequency can reduce the required inductance and capacitance, allowing smaller components. However, it may increase switching losses, electromagnetic interference, and thermal demands.

Select an inductor with sufficient inductance, saturation-current rating, and RMS-current capacity. Its peak current rating should exceed the maximum expected inductor current with an appropriate safety margin.

Output ripple is mainly caused by the capacitor charging and discharging during switching, along with the capacitor's equivalent series resistance. Increasing capacitance and selecting a low-ESR capacitor can help reduce ripple.
