Bridge Rectifier Calculator

Calculate peak output, filtered DC voltage, ripple, current, power, and rectification frequency from bridge rectifier parameters. Bridge Rectifier Calculator helps students, hobbyists, and engineers design, analyze, and troubleshoot full-wave rectifier circuits.

Highlights

  • Calculates peak, average, and filtered DC output voltage.
  • Estimates load current, power, and diode voltage stress.
  • Determines ripple frequency, ripple voltage, and ripple factor.
  • Accounts for diode forward voltage and filter capacitance.
  • Ideal for designing, analyzing, and troubleshooting bridge rectifier circuits.

Table of Contents

  1. How Bridge Rectifier Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Bridge Rectifier Calculator Works?

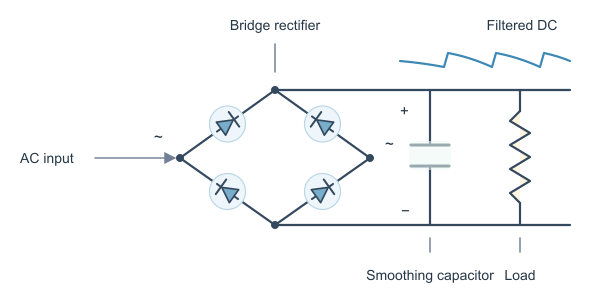

A bridge rectifier uses four diodes so that both halves of an alternating waveform deliver current to the load in the same direction. During each half-cycle, two diodes conduct, so the total conducting-path drop is approximately twice the forward voltage of one diode. The calculator treats the entered AC voltage as an RMS sinusoidal value.

The source peak voltage is calculated first:

VAC,peak=VAC2

The peak rectified voltage subtracts the forward drop of the two conducting diodes. The unfiltered average full-wave output is the average value of the rectified sine wave, using the diode-adjusted peak as an approximation:

Vrect,peak=VAC,peak-2VF;VDC,unfiltered≈2πVrect,peak

A filter capacitor charges near each rectified peak and discharges through the load between peaks. Full-wave rectification produces two charging events per AC cycle, so the ripple frequency is:

fripple=2f

For the capacitor-discharge approximation, the peak-to-peak ripple is estimated from the load current, ripple frequency, and capacitance:

Vripple,pp≈IloadfrippleC

The filtered DC voltage is approximated as the rectified peak minus half the ripple voltage. Since load current depends on the filtered voltage, the calculator uses the corresponding resistive-load relationship:

Iload=VDC,filteredR;VDC,filtered≈Vrect,peak-Vripple,pp2

The average load current is the filtered voltage divided by resistance, while peak load current uses the peak rectified voltage:

Iaverage=VDC,filteredR;Ipeak≈Vrect,peakR

For an approximately triangular capacitor ripple, RMS ripple is estimated as Vripple,rms≈Vripple,pp/23. Ripple factor is the RMS ripple relative to filtered DC output, expressed as a percentage, and load power is P=VDC2/R. The approximate peak inverse voltage per diode in a bridge is the source peak voltage.


OutputCalculation basis
AC peak voltageVAC2
Peak rectified voltageAC peak voltage minus two diode drops
Ripple frequency2f
Ripple factorRMS ripple divided by filtered DC voltage, multiplied by 100
Load powerFiltered DC voltage squared divided by load resistance

Practical Use Cases

Students can compare half-wave and full-wave rectification, calculate the effect of two diode drops, and verify laboratory measurements of peak voltage, average DC output, ripple frequency, and ripple factor.

Electronics hobbyists can estimate the DC output of an unregulated power supply from transformer voltage, diode characteristics, load resistance, and filter capacitance before selecting a capacitor or testing a prototype.

Power-supply designers can use the filtered voltage, average and peak load currents, ripple voltage, load power, and diode peak inverse voltage to make preliminary component selections for low-frequency rectifier stages.

Repair technicians can compare expected rectifier output and ripple with measured values to identify problems such as an open diode, excessive load demand, insufficient capacitance, or an incorrectly rated replacement component.

Accuracy and Limitations

The calculator provides a first-order estimate based on a sinusoidal AC source, constant forward voltage for each conducting diode, a resistive load, ideal bridge conduction, and approximately triangular capacitor ripple. It does not model diode dynamic resistance, temperature-dependent forward voltage, transformer winding resistance, source sag, capacitor ESR, leakage current, conduction-angle effects, diode recovery behavior, startup surge, or mains waveform distortion. The filtered DC and ripple results are therefore most reliable for preliminary analysis with moderate ripple and a reasonably stiff source; measured circuits can differ, especially under heavy load or with small capacitance.

Quick Examples

Example #1: Low-Voltage DC Supply

Estimate the output and ripple of a typical 12 V transformer bridge rectifier used for small electronic circuits.

Example #2: High-Frequency Compact Supply

Analyze a low-voltage bridge rectifier operating from a high-frequency AC source with a light resistive load.

Example #3: Industrial Rectifier Stage

Evaluate voltage, current, power, and ripple for a higher-voltage bridge rectifier supplying a substantial load.

Frequently Asked Questions

A bridge rectifier is a four-diode circuit that converts alternating current into pulsating direct current. It uses both halves of the AC waveform, providing full-wave rectification.

Current passes through two diodes during each conduction cycle, so the output is reduced by approximately twice the forward voltage drop of one diode.

A smoothing capacitor stores charge near the waveform peaks and releases it between peaks. This reduces voltage fluctuations and produces a steadier DC output.

Ripple can generally be reduced by increasing the filter capacitance, reducing the load current, or using a higher-frequency rectified supply. Additional voltage regulation can provide further smoothing.

Peak inverse voltage is the maximum reverse voltage a diode must withstand when it is not conducting. Diodes should be selected with a reverse-voltage rating comfortably above this value.
