Capacitor Charge Time Calculator
Calculate charging time, time constant, and charge percentage based on resistance, capacitance, supply voltage, target voltage, and initial voltage. Capacitor Charge Time Calculator helps students, engineers, technicians, and electronics hobbyists analyze capacitor charging behavior in RC circuits.
Highlights
- Calculate capacitor charging time in RC circuits.
- Determine the RC time constant instantly.
- Account for resistance, capacitance, and voltage values.
- Support precharged capacitors with initial voltage input.
- View target charge percentage alongside timing results.
Table of Contents
How Capacitor Charge Time Calculator Works?

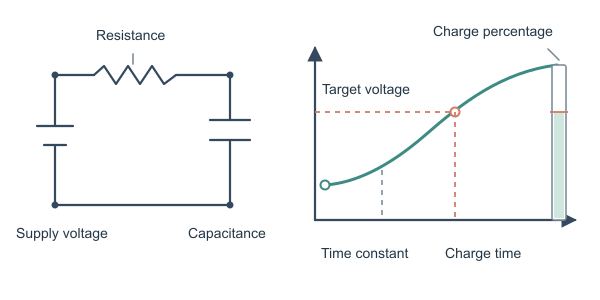

The calculator models a capacitor charging through a resistance in a first-order RC circuit. The resistance and capacitance determine the circuit's time constant, which is the time required for the capacitor to complete approximately 63.2% of the remaining voltage change toward the supply voltage.
For a capacitor that starts at an initial voltage V0, the voltage at time t is given by:
Solving this expression for the time required to reach the target voltage VT gives the calculator's charge-time equation:
Here, R is the resistance, C is the capacitance, VS is the supply voltage, VT is the target voltage, and V0 is the initial capacitor voltage. The target charge percentage compares the target voltage with the final steady-state supply voltage:
For an initially uncharged capacitor, the familiar charging milestones are:
| Elapsed time | Approximate voltage reached | Remaining voltage change |
|---|---|---|
| 1 time constant | 63.2% of the final change | 36.8% |
| 2 time constants | 86.5% | 13.5% |
| 3 time constants | 95.0% | 5.0% |
| 5 time constants | 99.3% | 0.7% |
The resulting charge time and time constant can be displayed in the calculator's supported time formats, while charge percentage is displayed as a percentage.
Practical Use Cases
Students can use the calculator to connect the exponential RC charging equation with practical circuit behavior, such as determining how long a 100 μF capacitor takes to approach a 12 V supply through a selected resistor.
Electrical and electronics engineers can estimate startup delays, reset timing, signal filtering response, and threshold-crossing times while evaluating resistance, capacitance, supply voltage, and precharged capacitor conditions.
Technicians can check whether a measured capacitor charging interval is consistent with the expected RC time constant when troubleshooting power supplies, control boards, timing circuits, or delayed switching systems.
Electronics hobbyists can select resistor and capacitor values for LED fade effects, delay circuits, simple timers, and other projects where a capacitor must reach a specified voltage from a known starting voltage.
Accuracy and Limitations
The calculator is accurate for an ideal first-order RC charging circuit with constant resistance, capacitance, and supply voltage, and with the target voltage between the initial voltage and the supply voltage. It does not include capacitor leakage, equivalent series resistance, dielectric absorption, capacitor tolerance, resistor tolerance, source impedance, switch resistance, wiring effects, or supply-voltage fluctuations. Because an ideal capacitor approaches the supply voltage asymptotically, a target voltage equal to or greater than the supply voltage does not produce a finite normal charging time; targets below the initial voltage are not valid for a charging calculation.
Quick Examples
Example #1: Low-Voltage Sensor Startup
Estimate the charging time for a capacitor in a sensor circuit powered by a 5 V supply.
Example #2: Camera Flash Capacitor
Calculate the charging duration of a larger capacitor used in a camera flash circuit.
Example #3: High-Voltage Power Filter
Evaluate RC charging behavior for a high-voltage power supply filter with a precharged capacitor.
