Ballistic Coefficient Calculator

Calculate ballistic coefficient, sectional density, and effective drag area based on projectile mass, diameter, and drag coefficient. Ballistic Coefficient Calculator helps shooters, engineers, and ballistics researchers evaluate projectile performance and aerodynamic resistance.

Highlights

  • Calculate ballistic coefficient from projectile mass, diameter, and drag coefficient.
  • Determine sectional density to evaluate projectile aerodynamic efficiency.
  • Calculate frontal area and effective resistance to airflow.
  • Supports multiple mass, diameter, and output unit conversions.
  • Useful for shooters, engineers, and ballistics researchers.

Table of Contents

  1. How Ballistic Coefficient Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Ballistic Coefficient Calculator Works?

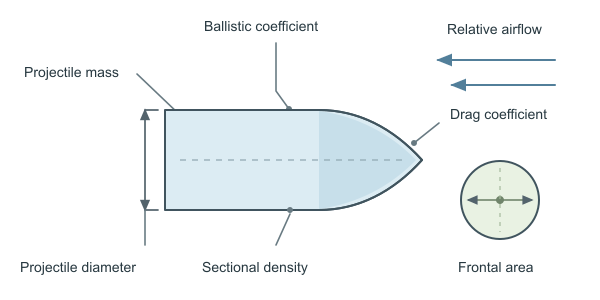

The Ballistic Coefficient Calculator evaluates how effectively a projectile resists deceleration caused by aerodynamic drag. It uses projectile mass, diameter, and drag coefficient to calculate sectional density, frontal area, and ballistic coefficient.

First, the projectile's frontal area is modeled as the area of a circle based on its diameter:

A=πd24

where A is frontal area and d is projectile diameter. Sectional density is the projectile mass divided by this frontal area:

SD=mA

The ballistic coefficient is then calculated by dividing sectional density by the dimensionless drag coefficient:

BC=SDCd=mCdA

A higher ballistic coefficient generally indicates that a projectile retains velocity more effectively under the same atmospheric and flight conditions. The calculator reports ballistic coefficient and sectional density in area-normalized mass units, while frontal area is reported in square-area units.


QuantityFormulaMeaning
Frontal areaA=πd2/4Cross-sectional area exposed to airflow
Sectional densitySD=m/AMass distributed over frontal area
Ballistic coefficientBC=SD/CdResistance-to-deceleration indicator

For example, using the default inputs of 0.008 kg mass, 0.00782 m diameter, and a drag coefficient of 0.3 gives a frontal area of approximately 0.0000480 m², a sectional density of approximately 166.6 kg/m², and a ballistic coefficient of approximately 555.2 kg/m².

Practical Use Cases

Shooters can compare projectile designs by examining ballistic coefficient and sectional density to estimate which projectile may better maintain velocity and resist aerodynamic deceleration during flight.

Ballistics researchers can use the calculator to organize projectile test data and assess how changes in mass, diameter, or measured drag coefficient affect aerodynamic performance.

Projectile designers can evaluate the effect of geometry and mass changes on frontal area, sectional density, and ballistic coefficient during preliminary design studies.

Firearms and ammunition engineers can use the results as an initial performance check when comparing projectile configurations under a specified drag-coefficient assumption.

Physics students and educators can use the calculator to demonstrate how mass, circular cross-sectional area, and drag coefficient combine to influence resistance to deceleration.

Accuracy and Limitations

The calculator accurately applies the supplied formulas for circular frontal area, sectional density, and ballistic coefficient using the entered mass, diameter, and drag coefficient. Its results are limited by the assumption that the projectile presents a circular frontal area and by the selected drag coefficient, which can vary with velocity, atmospheric conditions, projectile orientation, shape, and flight regime. Because the calculator does not model changing air density, spin stabilization, yaw, trajectory, or a velocity-dependent drag curve, its ballistic coefficient should be treated as a condition-specific estimate rather than a complete trajectory prediction.

Quick Examples

Example #1: Standard Rifle Bullet

Estimate aerodynamic performance for a typical rifle projectile using metric input units.

Example #2: Lightweight Handgun Projectile

Evaluate ballistic coefficient and frontal area for a lightweight handgun projectile.

Example #3: Heavy Large-Caliber Projectile

Analyze resistance and sectional density for a heavy large-caliber projectile using imperial units.

Frequently Asked Questions

Ballistic coefficient describes how well a projectile resists slowing caused by air resistance. A higher value generally indicates better aerodynamic performance under comparable conditions.

For a given diameter and shape, a heavier projectile typically has a higher sectional density and may retain velocity more effectively. Mass must be entered with the correct unit for meaningful results.

Sectional density is the projectile’s mass relative to its frontal area. It helps compare how efficiently projectiles concentrate mass behind the area exposed to airflow.

Diameter determines the projectile’s frontal area, which is the cross-sectional surface exposed to airflow. Increasing diameter generally increases the area subject to aerodynamic drag.

The drag coefficient is a dimensionless measure of aerodynamic resistance that depends on projectile shape and flight conditions. It may vary with velocity, air density, and orientation.
