Belt Length Calculator

How Belt Length Calculator Works?

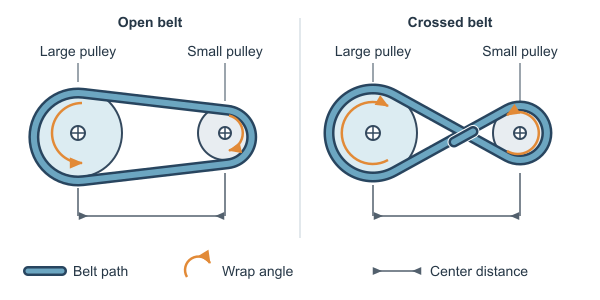

The Belt Length Calculator estimates the theoretical length of a belt running around two pulleys. It uses the larger pulley pitch diameter D, the smaller pulley pitch diameter d, the distance between pulley centers C, and the selected belt arrangement.

For an open belt, the belt travels around the pulleys without crossing. The theoretical belt length is calculated using:

For a crossed belt, the belt passes between the pulleys in a crossed path. The corresponding approximation is:

The wrap angle is based on the angle formed by the straight belt spans and the pulley radii. For an open belt, define $\alpha ={\sin }^{-1}(\frac{D-d}{2C})$. The smaller pulley wrap angle is ${\theta }_s=\pi -2\alpha$, while the larger pulley wrap angle is ${\theta }_L=\pi +2\alpha$. For a crossed belt, use $\alpha ={\sin }^{-1}(\frac{D+d}{2C})$. The smaller pulley then has ${\theta }_s=\pi +2\alpha$ of wrap, and the larger pulley has ${\theta }_L=\pi -2\alpha$. The calculator reports belt length in the selected length unit and wrap angles in degrees.

Practical Use Cases

Mechanical engineers can estimate the required theoretical belt length during the design of pulley drives, using pitch diameters and center distance to compare open and crossed arrangements.

Maintenance technicians can use the calculated length and wrap angles to verify whether an existing belt-drive layout is consistent with expected pulley geometry before ordering a replacement belt.

Machine builders can evaluate pulley spacing during equipment development and identify how changing the center distance affects belt length and contact around each pulley.

Industrial maintenance planners can use the result as a preliminary specification when documenting belt-drive assemblies and checking that the smaller pulley has sufficient theoretical belt contact.

Accuracy and Limitations

The calculator uses standard theoretical belt-length approximations based on pulley pitch diameters and center distance, so its results are suitable for preliminary selection and geometry checks rather than final installation sizing. It does not account for belt thickness, belt elasticity, pretension, belt stretch, pulley eccentricity, manufacturing tolerances, slip, tensioner position, or the exact belt manufacturer's pitch-line convention. For crossed belts, the input geometry must satisfy $2C>D+d$; for open belts, the corresponding geometric condition is $2C>D-d$, so that the inverse-sine wrap-angle calculation remains defined.
