Bend Allowance Calculator

Calculate bend allowance, neutral-axis radius, arc lengths, bend deduction, and flat pattern length based on bend angle, radius, thickness, K-factor, and flange lengths. Bend Allowance Calculator helps fabricators, engineers, and sheet-metal professionals develop accurate unfolded part dimensions.

Highlights

  • Accurately calculate bend allowance and flat pattern length for sheet-metal fabrication.
  • Determine neutral-axis radius using material thickness and K-factor.
  • Calculate inside and outside arc lengths for precise bend geometry.
  • Find outside setback and bend deduction for accurate flange development.
  • Support multiple length units, including mm, cm, m, inches, and feet.

Table of Contents

  1. How Bend Allowance Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Bend Allowance Calculator Works?

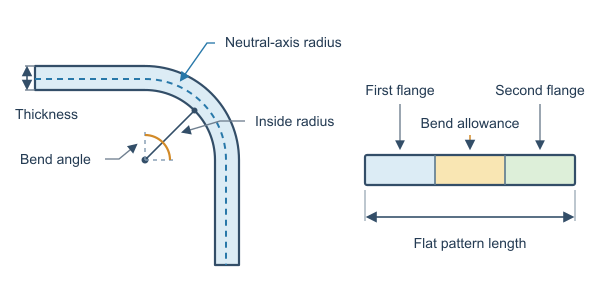

The Bend Allowance Calculator models a sheet-metal bend as an arc through the material's neutral axis. The neutral axis is the layer that experiences approximately zero length change during bending. Its position is estimated with the K-factor, expressed as a fraction of the material thickness measured from the inside surface.

Rn=Ri+Kt

Here, Rn is the neutral-axis radius, Ri is the inside bend radius, K is the K-factor divided by 100, and t is material thickness. The bend angle θ is used in radians in the arc equations.

BA=θRn

Thus, bend allowance is the neutral-axis arc length. The calculator also determines the inside and outside surface arc lengths using the inside radius and the outside radius, where the outside radius is Ri + t.

Linside=θRi,Loutside=θ(Ri+t)

Outside setback is the distance from each outside mold line to the theoretical bend intersection. It is calculated from the outside radius and half of the bend angle.

OSSB=(Ri+t)tan(θ/2)

Bend deduction removes the bend-region excess from the sum of the two flange dimensions. The resulting flat pattern length is the developed blank length.

BD=2OSSB−BA
Lflat=L1+L2−BD

Calculated valuePurpose
Neutral-axis radiusLocates the estimated zero-strain layer through the thickness.
Bend allowanceRepresents the arc length consumed by the bend.
Inside and outside arc lengthsDescribe the two material surfaces across the bend.
Outside setbackLocates the theoretical outside bend intersection.
Bend deductionAdjusts flange dimensions for flat-pattern development.
Flat pattern lengthGives the combined developed length of both flanges and the bend.

Practical Use Cases

Sheet-metal fabricators: Fabricators can enter the bend angle, inside radius, thickness, K-factor, and two flange lengths to estimate the blank length before cutting and forming a part.

Mechanical engineers: Engineers can use the neutral-axis radius, bend allowance, setback, and bend deduction when developing sheet-metal components and checking whether a designed blank will produce the intended finished dimensions.

CAD and manufacturing professionals: CAD users can compare calculated flat pattern length with an unfolded model and use the result as a first-pass check for brackets, enclosures, channels, and folded panels.

Machine-shop operators: Operators can use the calculated bend allowance and deduction to mark bend locations and verify programmed press-brake or forming operations.

Product designers and students: Designers and learners can study how radius, thickness, bend angle, K-factor, and flange lengths affect the developed size of a bent sheet.

Accuracy and Limitations

The calculator uses ideal geometric relationships and a user-specified K-factor, so its results are most reliable when the selected K-factor matches the material, tooling, bend method, and actual inside radius. It assumes a uniform thickness, a constant-radius bend, and flange lengths referenced from the outside mold lines. Springback, material anisotropy, bend-tool geometry, coining or bottoming effects, local thinning, and manufacturing tolerances are not modeled. At bend angles approaching 180 degrees, the tangent term in the outside-setback equation becomes highly sensitive, so setback, bend deduction, and flat-pattern results should be verified against tooling data or a formed test piece.

Quick Examples

Example #1: Standard 90-Degree Sheet-Metal Bend

Calculate bend development for a typical 2 mm sheet with equal-length flanges and a 3 mm inside radius.

Example #2: Wide Aluminum Panel Bend

Determine the flat pattern length for a wider aluminum panel using a 120-degree bend and unequal flanges.

Example #3: Imperial Right-Angle Bracket

Evaluate bend allowance and developed length for an inch-based structural bracket with a 90-degree bend.

Frequently Asked Questions

Bend allowance is the length of material along the neutral axis that forms the curved portion of a bend. It is used when determining the required flat length of a sheet-metal part.

The neutral axis is the layer within the material that experiences little or no change in length during bending. Its position depends on factors such as material thickness, bend radius, and forming conditions.

The K-factor expresses the neutral axis position as a fraction of the material thickness measured from the inside surface. Different materials, tooling, and bending methods can require different K-factor values.

A larger inside radius generally increases the length of material in the bend region and changes the required flat pattern dimensions. The appropriate radius should reflect the tooling and forming process.

Variations in material properties, springback, grain direction, tooling, and forming pressure can affect the final dimensions. Test bends and measured production results are often needed for close-tolerance work.
