Buckling Calculator
Calculate Euler critical load, critical stress, slenderness ratio, allowable load, safety factor, and utilization from column properties and loading. Buckling Calculator helps engineers, designers, and students evaluate structural stability and prevent column failure.
Highlights
- Estimate Euler critical buckling loads for columns.
- Calculate effective length and slenderness ratio.
- Determine critical buckling stress from material and section properties.
- Evaluate allowable load, safety factor, and design utilization.
- Compare buckling performance with material yield strength.
Table of Contents
How Buckling Calculator Works?

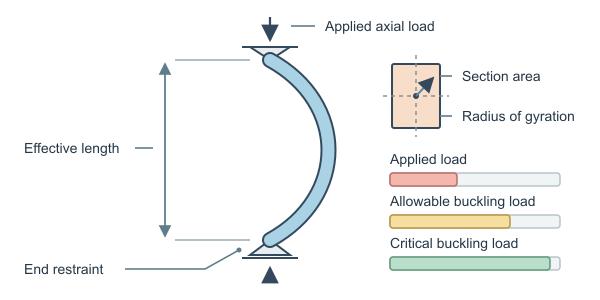

The Buckling Calculator applies Euler's ideal elastic buckling theory to estimate when a slender column becomes unstable under axial compression. It uses the unsupported column length, effective length factor, Young's modulus, second moment of area, cross-sectional area, applied load, material yield strength, and required factor of safety.
First, the effective length is calculated from the actual column length and the selected end-restraint factor:
| End condition | Effective length factor |
|---|---|
| Fixed-Fixed | 0.5 |
| Fixed-Pinned | 0.699 |
| Pinned-Pinned | 1.0 |
| Fixed-Free | 2.0 |
The radius of gyration describes how the cross-sectional area is distributed about the buckling axis. It is calculated from the second moment of area and cross-sectional area:
The slenderness ratio compares the effective column length with the radius of gyration:
A higher slenderness ratio indicates greater sensitivity to elastic buckling. The ideal Euler critical buckling load is:
Here, E is Young's modulus, I is the second moment of area, and Le is the effective length. The corresponding critical buckling stress is the critical load divided by the cross-sectional area:
The allowable buckling load reduces the ideal critical load by the required factor of safety:
The calculator also reports the buckling safety factor, design utilization, and yield safety factor:
Utilization below 100% means the applied load is below the calculated allowable buckling load. The results are based on the axis represented by the supplied second moment of area, so the weakest buckling axis should be used for a conservative assessment.
Practical Use Cases
Structural engineers can estimate the elastic buckling capacity of building columns, bracing members, and compression elements, then compare the allowable buckling load with the design axial force.
Mechanical engineers can assess shafts, machine frames, actuator rods, and slender support members subjected to compression by entering their geometry, material stiffness, and end conditions.
Product and equipment designers can use the utilization percentage and buckling safety factor to screen columns, legs, rails, and internal supports during early-stage sizing.
Civil and bridge engineers can compare different support conditions and cross-sectional properties to understand how effective length and bending stiffness influence compression-member stability.
Engineering students can verify hand calculations for effective length, radius of gyration, slenderness ratio, Euler critical load, and critical stress using a consistent calculation sequence.
Maintenance and inspection teams can perform preliminary stability checks on loaded posts and compression members, provided the member remains straight, elastic, and adequately represented by the input properties.
Accuracy and Limitations
The calculator accurately evaluates the stated Euler formulas when the column is straight, prismatic, concentrically loaded, elastically behaving, and adequately represented by the selected effective length factor and weakest-axis second moment of area. It does not account for initial crookedness, residual stress, eccentric loading, connection flexibility beyond the selected factor, lateral restraint changes, local or torsional buckling, material plasticity, inelastic column behavior, stress concentrations, or imperfections. Euler results can therefore overestimate real capacity for short or intermediate columns, columns near yielding, and members with imperfect end conditions; detailed design should use an applicable code-based column curve or structural analysis where these effects matter.
Quick Examples
Example #1: Steel Building Column
Evaluate the elastic buckling capacity and utilization of a steel column with pinned ends.
Example #2: Aluminum Fixed-Free Column
Assess a cantilever aluminum column subjected to a moderate compressive axial load.
Example #3: Compact Concrete-Reinforced Column
Estimate buckling performance for a short, stiff column using centimeter-based geometric inputs.
