Copper Wire Weight Calculator

Calculate copper wire mass, volume, cross-sectional area, and gravitational force based on length, diameter, quantity, and density. Copper Wire Weight Calculator helps electricians, engineers, manufacturers, and students estimate conductor material requirements and handling loads.

Highlights

  • Calculate the total mass and weight force of copper wires.
  • Determine wire volume and circular cross-sectional area.
  • Support multiple wire quantities and lengths.
  • Customize copper density for different materials and alloys.
  • View linear mass for cable design and installation planning.

Table of Contents

  1. How Copper Wire Weight Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Copper Wire Weight Calculator Works?

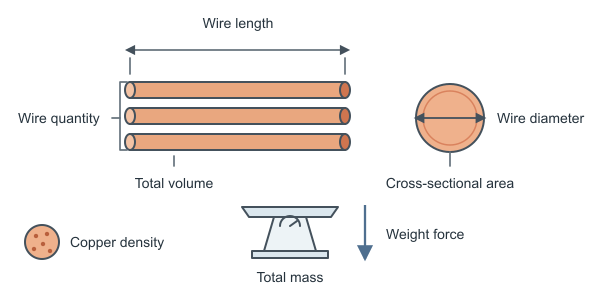

The Copper Wire Weight Calculator models each wire as a solid circular cylinder. It uses the entered wire length, diameter, number of identical wires, and copper density to calculate cross-sectional area, total volume, mass, gravitational force, and linear mass.

The cross-sectional area of one wire is calculated from its diameter:

A=π(d2)2=πd24

Here, A is the cross-sectional area of one wire and d is its diameter. The volume of all wires is the area multiplied by the length of each wire and the number of wires:

V=A×L×N

Mass is calculated by multiplying total volume by the entered material density:

m=ρV

The gravitational force, or weight force, is calculated using standard gravitational acceleration:

F=mg

In this equation, F is weight force, m is total mass, and g is 9.80665 m/s2. Linear mass describes the mass of one wire per unit length:

mℓlinear=ρA

Calculated valueMeaning
Total MassMass of all specified wires, based on volume and density.
Weight ForceGravitational force exerted by the total mass.
Total VolumeCombined copper volume of all wires.
Cross-Sectional AreaArea of one wire's circular conductor section.
Linear MassMass per unit length of one wire.

The calculator accepts wire length, diameter, quantity, and density using the supported input units. Results can be displayed using the available mass, force, volume, area, and linear-mass output units.

Practical Use Cases

Electricians can estimate the material mass of conductors before installation, helping with cable handling, route planning, and determining whether supports or trays must accommodate the wire load.

Electrical and mechanical engineers can use the cross-sectional area, linear mass, total mass, and weight force when checking conductor designs, support loads, equipment clearances, and material requirements.

Manufacturers can estimate copper usage for production batches by entering the wire diameter, length, quantity, and applicable density. The total volume and mass support inventory, packaging, and manufacturing planning.

Procurement and logistics teams can use the total mass and volume to compare material requirements, prepare handling plans, and estimate the physical size and load of wire consignments.

Students and educators can demonstrate how circular geometry, density, volume, mass, and gravitational force are connected in a practical materials calculation.

Accuracy and Limitations

The calculator is accurate for a uniform, solid, circular wire whose entered diameter, length, quantity, and density represent the material being evaluated. It assumes the supplied density applies throughout the wire and uses standard gravitational acceleration of 9.80665 m/s2. Results may differ for stranded conductors, irregular or compressed wire shapes, insulation, coatings, connectors, solder, voids, or manufacturing tolerances because these features are not included in the cylindrical copper model. The density input can be adjusted for a particular copper alloy or manufacturing specification, but the calculator does not independently verify the material grade or measured dimensions.

Quick Examples

Example #1: Residential Wiring Estimate

Estimate the mass and handling load of copper wires for a residential electrical installation.

Example #2: Industrial Cable Shipment

Calculate the material quantity and shipping load for a large batch of copper wires.

Example #3: Custom Copper Alloy Evaluation

Estimate the weight and volume of copper alloy wire using a specified material density for engineering validation.

Frequently Asked Questions

Pure copper has a density of approximately 8,960 kg/m³, or 8.96 g/cm³. The exact value may vary slightly depending on the alloy, purity, and temperature.

For wires of equal length and material, mass increases with the square of the diameter. Doubling the diameter produces approximately four times the cross-sectional area and mass per unit length.

Mass is the amount of material and is commonly measured in kilograms or pounds. Weight force is the gravitational force acting on that mass and is measured in newtons or pound-force.

Cross-sectional area indicates how much conducting material the wire contains. It is commonly used when comparing conductor sizes, electrical capacity, resistance, and manufacturing specifications.

Mass estimates help users select suitable packaging, calculate transportation loads, and plan handling equipment. The result should be adjusted for insulation, jackets, terminals, reels, and other components when applicable.
