Elastic Constants Calculator

Calculate shear modulus, bulk modulus, Lamé constants, compressibility, wave speeds, and acoustic impedances from Young's modulus, Poisson's ratio, and density. Elastic Constants Calculator helps materials engineers, physicists, researchers, and students analyze isotropic material behavior and mechanical properties.

Highlights

  • Calculate key isotropic elastic constants from Young’s modulus and Poisson’s ratio.
  • Determine shear modulus, bulk modulus, Lamé parameters, and stiffness coefficients.
  • Estimate longitudinal and transverse elastic wave speeds using material density.
  • Compute longitudinal and transverse acoustic impedances for material analysis.
  • Supports multiple units, including Pa, GPa, psi, kg/m³, m/s, and MRayl.

Table of Contents

  1. How Elastic Constants Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Elastic Constants Calculator Works?

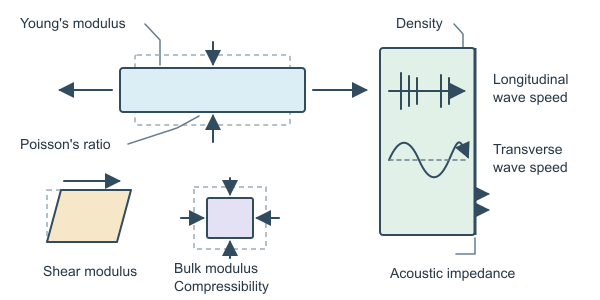

The Elastic Constants Calculator uses Young's modulus E, Poisson's ratio ν, and material density ρ to derive the elastic constants of an isotropic, homogeneous, linear-elastic material. Young's modulus describes tensile stiffness, Poisson's ratio describes lateral deformation relative to axial deformation, and density is required for wave-speed and acoustic-impedance calculations.

The shear modulus, which measures resistance to shape-changing deformation, is calculated from:

G=E2(1+ν)

The bulk modulus measures resistance to uniform volume change. It is calculated as:

K=E3(1−2ν)

The first Lamé parameter, also written as λ, and the constrained longitudinal or P-wave modulus are:

λ=Eν(1+ν)(1−2ν),M=E(1−ν)(1+ν)(1−2ν)

Compressibility is the reciprocal of the bulk modulus:

β=1K

Using density, the calculator determines the speeds of compressional and shear waves:

cL=Mρ,cT=Gρ

Acoustic impedance is density multiplied by wave speed:

ZL=ρcL,ZT=ρcT

For isotropic elasticity, the stiffness coefficients are related to these constants as follows:


OutputRelationshipMeaning
C11M = λ + 2GLongitudinal normal stiffness
C12λCoupling between normal stress components
C44GShear stiffness

The calculator supports Young's modulus and elastic outputs in Pa, kPa, MPa, GPa, psi, or ksi; density in kg/m³, g/cm³, kg/L, or lb/ft³; wave speed in m/s, km/s, or ft/s; and acoustic impedance in Rayl, MRayl, or kg/(m²·s). Poisson's ratio is dimensionless.

Practical Use Cases

Materials engineers can enter a material's Young's modulus, Poisson's ratio, and density to estimate shear modulus, bulk modulus, Lamé parameters, and stiffness coefficients for preliminary component and material-selection studies.

Non-destructive testing specialists can calculate longitudinal and transverse wave speeds together with acoustic impedances to support ultrasonic inspection, transducer selection, and interface-reflection analysis.

Acoustics and geophysics professionals can use the longitudinal and shear-wave results to estimate elastic-wave propagation through solids and compare how material stiffness and density affect signal transmission.

Researchers in continuum mechanics can obtain the isotropic constants required for constitutive equations, analytical solutions, and simplified finite-element material models.

Physics and engineering students can verify relationships among Young's modulus, Poisson's ratio, shear modulus, bulk modulus, Lamé's constants, wave speeds, and acoustic impedance using a single set of material inputs.

Accuracy and Limitations

The calculator evaluates the standard isotropic linear-elastic equations directly, so its numerical results are accurate for the supplied inputs and selected display units. It requires a positive Young's modulus and density, with Poisson's ratio limited to the entered range of −0.99 to 0.4999; values approaching 0.5 make the bulk modulus, Lamé's first parameter, and P-wave modulus highly sensitive because their denominators contain 1 − 2ν. The model assumes a homogeneous, isotropic, elastic, and frequency-independent material, so it does not account for anisotropy, plasticity, porosity, damping, dispersion, temperature effects, or measurement uncertainty. Real materials that are strongly directional, viscoelastic, damaged, or frequency-dependent may therefore differ substantially from the calculated wave speeds and impedances.

Quick Examples

Example #1: Structural Steel

Estimate isotropic elastic properties and wave behavior for a typical structural steel material.

Example #2: Aluminum Alloy

Calculate elastic constants and acoustic properties for a lightweight aluminum alloy.

Example #3: Concrete

Analyze approximate elastic behavior and wave speeds for a typical structural concrete mix.

Frequently Asked Questions

Young’s modulus, shear modulus, bulk modulus, and Lamé parameters describe different aspects of a material’s stiffness. For an isotropic material, these constants are mathematically related and are not independent.

Poisson’s ratio describes how much a material expands or contracts laterally when stretched or compressed longitudinally. Common values range from about 0.2 to 0.35 for many metals, while rubber-like materials approach 0.5.

Longitudinal waves involve compression and usually travel faster, while transverse waves involve shear deformation. Their speeds depend on the material’s stiffness and density.

Acoustic impedance describes how strongly a material resists the passage of mechanical waves. It is important for analyzing wave transmission and reflection at material interfaces, including ultrasonic and nondestructive testing applications.

Elastic properties are commonly reported in Pa, MPa, GPa, psi, or ksi, while density is often given in kg/m³, g/cm³, or lb/ft³. Ensure all input values use compatible units before comparing results.
