Blast Radius Calculator
Calculate blast radius, scaled distance, equivalent explosive mass, hazard area, and released energy based on explosive properties and atmospheric conditions. Blast Radius Calculator helps safety engineers, emergency planners, researchers, and risk assessors estimate potential blast hazard zones.
Highlights
- Estimate blast radius based on explosive yield and target overpressure.
- Calculate TNT-equivalent mass and total released energy.
- Account for free-air or surface burst configurations.
- Adjust results for ambient pressure and temperature.
- View scaled distance and circular hazard area in multiple units.
Table of Contents
How Blast Radius Calculator Works?

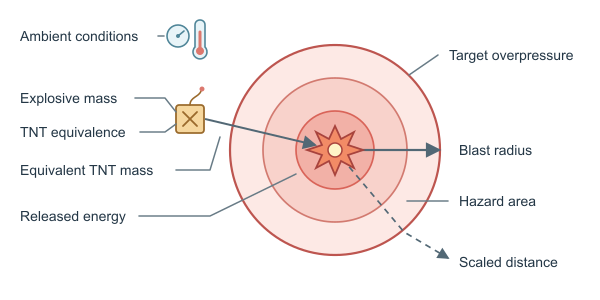

The Blast Radius Calculator estimates the distance at which a specified peak incident overpressure is reached. It first expresses the explosive charge as an equivalent TNT yield, then applies cube-root blast scaling together with the selected overpressure threshold, burst configuration, ambient pressure, and ambient temperature.
The TNT-equivalent mass is calculated from the entered explosive mass and TNT efficiency:
Here, η is the TNT equivalence percentage. The corresponding released energy is estimated using the conventional TNT energy factor:
Blast effects are compared using scaled distance, which accounts for the fact that similar blast conditions occur at different physical distances for different explosive yields:
In this expression, R is the blast radius and Z is the scaled distance. The calculator determines the radius by evaluating the selected target overpressure against an empirical blast-wave relationship. Ambient pressure normalizes the target pressure, while ambient temperature and burst configuration modify the propagation estimate. A free-air burst and a surface burst can therefore produce different radii for the same explosive yield and target threshold.
The circular hazard area is calculated geometrically from the resulting radius:
| Output | Mathematical meaning |
|---|---|
| Blast Radius | Distance at which the selected peak incident overpressure is reached |
| Circular Hazard Area | Area enclosed by the calculated radius |
| Equivalent TNT Mass | Effective TNT yield after applying TNT equivalence |
| Scaled Distance | Radius normalized by the cube root of TNT-equivalent mass |
| Released Energy | Energy associated with the TNT-equivalent yield |
Practical Use Cases
Safety engineers can use the calculator to produce an initial estimate of overpressure boundaries around a facility, compare alternative explosive inventories, and identify areas requiring more detailed blast-resistant design analysis.
Emergency planners can use the estimated blast radius and circular hazard area to support preliminary evacuation planning, responder staging, access control, and consequence-management exercises.
Researchers can vary explosive mass, TNT equivalence, target overpressure, burst configuration, ambient pressure, and ambient temperature to examine how atmospheric and yield assumptions affect scaled blast distance.
Risk assessors can use the equivalent TNT mass, released energy, and threshold radius as screening values when comparing scenarios in a quantitative hazard assessment or reviewing site layouts.
Industrial facility managers can use the results for preliminary separation-distance reviews involving energetic materials, process hazards, storage areas, and nearby occupied buildings before commissioning a specialist blast study.
Accuracy and Limitations
The calculator provides an engineering estimate based on TNT-equivalent energy, cube-root scaling, a selected peak incident overpressure, and simplified free-air or surface-burst assumptions. Its circular hazard area assumes uniform propagation in every direction and does not explicitly model terrain, buildings, walls, confinement, reflections, fragmentation, obstacles, wind, humidity, altitude-specific atmospheric structure, or irregular charge geometry. The result should therefore be treated as a screening estimate rather than a certified safety boundary; high-consequence decisions require validated blast charts or numerical analysis using the actual explosive configuration, standoff geometry, and site conditions.
Quick Examples
Example #1: Small Industrial Charge
Estimate the hazard zone from a small free-air industrial explosive charge under standard atmospheric conditions.
Example #2: Large Surface Detonation
Evaluate blast effects and hazard boundaries for a large explosive charge detonated at the surface.
Example #3: Cold-Weather Emergency Assessment
Estimate blast hazard conditions for an explosive event in a cold, high-altitude environment using imperial pressure and temperature units.
