Angular Momentum Calculator

Calculate moment of inertia, angular momentum, rotational kinetic energy, frequency, and period from mass, body shape, radius, and angular velocity. Angular Momentum Calculator helps students, engineers, and physicists analyze rotating bodies and rotational motion.

Highlights

  • Calculate angular momentum for various rotating body shapes.
  • Determine moment of inertia based on mass, radius, and geometry.
  • Find rotational kinetic energy from angular velocity.
  • Convert angular velocity into frequency and rotational period.
  • Supports multiple units for mass, radius, speed, and energy.

Table of Contents

  1. How Angular Momentum Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Angular Momentum Calculator Works?

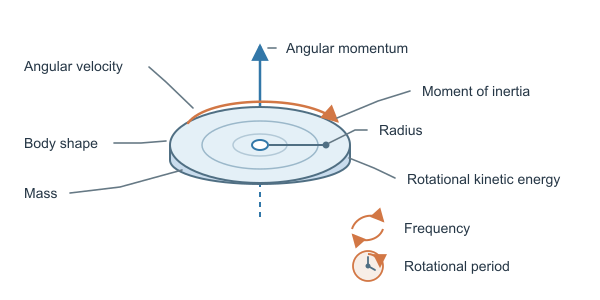

The Angular Momentum Calculator models a rotating body using its mass, selected shape, radius, and angular velocity. First, it determines the body's moment of inertia, I, which describes how strongly the mass distribution resists angular acceleration. For the selected standard geometries, the calculator uses a coefficient multiplied by mass and the square of the radius.

I=kmr2

Body shapeMoment of inertiaCoefficient, k
Point massI=mr21
Thin hoopI=mr21
Solid diskI=12mr21/2
Hollow cylinderI=mr21
Solid sphereI=25mr22/5
Hollow sphereI=23mr22/3

After calculating the moment of inertia, the calculator finds angular momentum by multiplying inertia by angular velocity:

L=Iω

It also calculates rotational kinetic energy, which is the energy associated with the body's rotation:

Erot=12Iω2

Angular velocity is related to rotational frequency and period through the following equations. Here, f is the number of revolutions per unit time and T is the time for one revolution.

f=ω2π,T=1f=2πω

The calculator accepts mass in kg, g, mg, lb, or oz; radius in m, cm, mm, km, in, ft, or yd; and angular velocity in rad/s, deg/s, rpm, or rev/s. Results can be displayed as moment of inertia, angular momentum, rotational kinetic energy, frequency, and rotational period using the supported output units.

Practical Use Cases

Physics students can use the calculator to verify textbook exercises involving disks, hoops, spheres, and point masses. For example, entering the mass, radius, and angular velocity of a rotating disk provides its moment of inertia, angular momentum, rotational kinetic energy, frequency, and time per revolution in one calculation.

Mechanical engineers can estimate the rotational characteristics of flywheels, pulleys, shafts, drums, and other components during preliminary design. Comparing different body shapes shows how mass distribution affects inertia, stored rotational energy, and the angular momentum that must be controlled.

Robotics and automation designers can evaluate rotating joints, wheels, rollers, and actuators. The angular momentum and rotational energy results help with initial motor sizing, motion-control analysis, and understanding how changes in radius influence the behavior of a moving assembly.

Physicists and laboratory researchers can analyze idealized rotating bodies in experiments involving conservation of angular momentum, rotational dynamics, and periodic motion. The frequency and period outputs are useful when relating an angular velocity measurement to the timing of repeated revolutions.

Accuracy and Limitations

The calculator is accurate for idealized rigid bodies whose mass is represented by the selected standard shape and whose rotation occurs about the assumed central axis. It uses a single radius and fixed shape coefficients, so a hollow cylinder is modeled with the thin-wall relation I = mr2; bodies with significant inner and outer radii, nonuniform density, irregular geometry, flexible components, or off-axis rotation require a more detailed inertia calculation. Results also assume constant angular velocity and do not include friction, air resistance, torque losses, or angular acceleration.

Quick Examples

Example #1: Spinning Solid Disk

Calculate the rotational properties of a solid disk such as a flywheel or rotating plate.

Example #2: Rotating Bicycle Wheel

Analyze the angular momentum and energy of a thin hoop representing a bicycle wheel.

Example #3: Spinning Solid Sphere

Determine the rotational characteristics of a solid spherical object rotating at a specified angular speed.

Frequently Asked Questions

Angular momentum is a measure of an object's rotational motion. It depends on the object's moment of inertia and angular velocity.

The SI unit of angular momentum is kilogram meter squared per second (kg·m²/s). It can also be expressed as joule-seconds (J·s).

Mass located farther from the axis of rotation contributes more strongly to moment of inertia and angular momentum. This is why a hollow ring and a solid disk with the same mass and radius can rotate differently.

For a fixed mass distribution, angular momentum increases in direct proportion to angular velocity. Doubling the angular velocity doubles the angular momentum.

Frequency is the number of revolutions completed per unit of time, while period is the time required for one revolution. They are reciprocals: T = 1/f.
