Pipe Weight Calculator
Calculate pipe cross-sectional area, volume, weight per length, and total weight based on outside diameter, wall thickness, length, quantity, and material density. Pipe Weight Calculator helps engineers, fabricators, contractors, and buyers estimate pipe material requirements, handling loads, shipping weights, and project costs.
Highlights
- Calculate pipe weight quickly and accurately.
- Supports multiple pipe dimensions and length units.
- Works with steel, plastic, copper, and other materials.
- Provides weight per length, per pipe, and total weight.
- Ideal for material planning, shipping, handling, and cost estimates.
Table of Contents
How Pipe Weight Calculator Works?

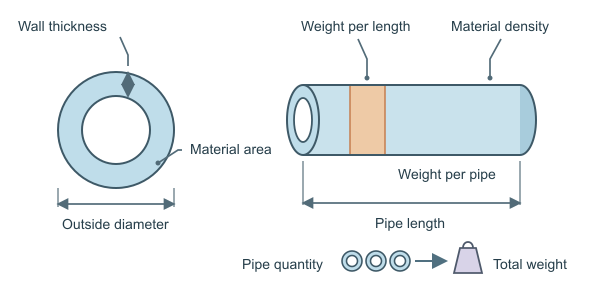

The Pipe Weight Calculator models the pipe as a uniform hollow cylinder. It uses the outside diameter, wall thickness, pipe length, material density, and quantity to determine the material area, material volume, weight per length, weight of one pipe, and combined weight.
First, the inside diameter is found by subtracting twice the wall thickness from the outside diameter:
Here, Do is the outside diameter, Di is the inside diameter, and t is the wall thickness. The cross-sectional material area is the area of the outside circle minus the area of the inside opening:
The material volume of one pipe is calculated by multiplying this annular area by the pipe length:
Material density converts volume into mass. The calculator reports weight per length, the weight of one pipe, and the total weight for the entered quantity:
In these equations, ρ is material density and Q is the number of pipes. For example, using an outside diameter of 100 mm, a wall thickness of 5 mm, a length of 6 m, a density of 7,850 kg/m³, and one pipe gives an inside diameter of 90 mm, a material area of approximately 1,492.26 mm², a material volume of approximately 0.008954 m³, and a pipe weight of approximately 70.29 kg.
| Output | Calculation | Purpose |
|---|---|---|
| Cross-Sectional Material Area | Am = π(Do² - Di²) / 4 | Determines the area of pipe material in a cross-section. |
| Pipe Volume | V = AmL | Determines the material volume in one pipe. |
| Weight Per Length | mL = ρAm | Determines mass for each length unit. |
| Weight Per Pipe | mpipe = ρAmL | Determines the mass of one complete pipe. |
| Total Pipe Weight | M = Qmpipe | Determines the combined mass of all identical pipes. |
The calculator supports diameter and thickness units of mm, cm, m, in, and ft; length units of m, mm, cm, km, in, ft, and yd; density units of kg/m³, g/cm³, lb/ft³, and lb/in³; and result formats including area, volume, linear weight, kilograms, pounds, tonnes, and tons.
Practical Use Cases
Engineers can estimate pipe self-weight for structural checks, support spacing, load calculations, and preliminary design work by entering the outside diameter, wall thickness, length, and material density.
Fabricators can use the weight per length and weight per pipe results to plan cutting, shop handling, lifting equipment, storage, and material usage for manufactured pipe sections.
Contractors can estimate the combined weight of a specified quantity of pipes for site logistics, crane planning, installation sequencing, and project material scheduling.
Purchasing teams can calculate approximate material quantities and compare expected order weights when requesting quotations for steel, plastic, copper, or other pipe materials.
Shipping and logistics planners can use the weight per pipe and total pipe weight to prepare handling plans and estimate the load associated with a shipment of identical pipe sections.
Estimators and project managers can combine the total material weight with supplier pricing or freight rates to support early-stage cost and procurement decisions.
Accuracy and Limitations
The calculator is accurate for a straight, uniform, hollow cylindrical pipe when the entered outside diameter, wall thickness, length, quantity, and material density are correct and expressed consistently with the selected result basis. It requires the wall thickness to be less than half the outside diameter so that the inside diameter remains positive. Results represent theoretical material mass and do not include threads, weld beads, end caps, flanges, fittings, coatings, corrosion allowance, manufacturing tolerances, ovality, or differences between nominal and actual dimensions. The density value should match the actual pipe material and grade; for final structural, lifting, shipping, or purchasing decisions, verify the result against manufacturer data and measured specifications.
Quick Examples
Example #1: Steel Pipe Order Estimate
Estimate the total material weight for a batch of structural steel pipes.
Example #2: Copper Plumbing Pipe Weight
Calculate the weight and material requirements for copper plumbing pipe used in a building installation.
Example #3: Large Plastic Process Pipe
Estimate the volume and total weight of large-diameter plastic pipes for industrial process piping.
