Carbon Equivalent Calculator
Calculate carbon equivalent and weldability assessment based on carbon, manganese, chromium, molybdenum, vanadium, nickel, and copper content. Carbon Equivalent Calculator helps engineers, fabricators, inspectors, and construction professionals evaluate steel weldability and preheating requirements.
Highlights
- Calculate steel carbon equivalent from seven key alloying elements.
- Assess steel weldability for fabrication and construction planning.
- Evaluate potential cracking risk during welding.
- Support preheating and heat treatment decisions.
- Designed for engineers, fabricators, inspectors, and construction professionals.
Table of Contents
How Carbon Equivalent Calculator Works?

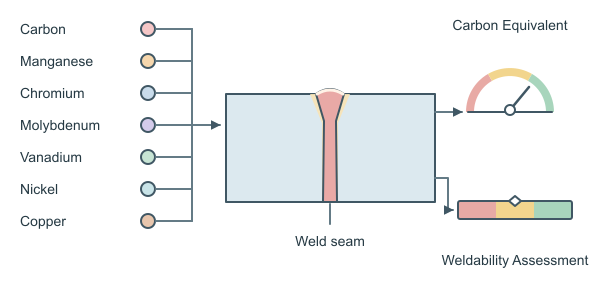

The Carbon Equivalent Calculator estimates steel weldability by combining the effects of carbon and alloying elements into one value: the IIW carbon equivalent (CE). The calculation uses the carbon, manganese, chromium, molybdenum, vanadium, nickel, and copper contents entered as percentages.
Each alloying element contributes according to its coefficient. Carbon has a direct one-to-one contribution, while manganese, chromium, molybdenum, vanadium, nickel, and copper contribute fractions of their reported composition. A higher CE generally indicates greater hardenability in the heat-affected zone and a higher risk of hydrogen-assisted or cold cracking unless welding conditions are carefully controlled.
For example, using the default inputs—carbon 0.20%, manganese 1.00%, chromium 0.25%, molybdenum 0.10%, vanadium 0.05%, nickel 0.20%, and copper 0.20%—the calculation is:
The calculator uses the resulting CE to provide a weldability assessment. Common IIW-based interpretation bands are shown below:
| Carbon equivalent | Typical weldability interpretation | Fabrication implication |
|---|---|---|
| Up to 0.35% | Excellent | Usually readily weldable with comparatively low cracking concern. |
| 0.36% to 0.45% | Good | Generally weldable, but procedure controls may be required. |
| 0.46% to 0.55% | Fair | Greater attention to preheating, interpass temperature, and hydrogen control is commonly required. |
| Above 0.55% | Poor | High hardenability and cracking risk may require stringent welding procedures and thermal controls. |
The assessment is a screening aid for fabrication planning. The final welding procedure should also consider the steel specification, material thickness, joint restraint, welding process, consumable classification, heat input, and applicable code requirements.
Practical Use Cases
Welding engineers can enter the certified chemical composition of a steel grade to estimate its CE before developing or reviewing a welding procedure. The result helps identify whether preheating, controlled interpass temperature, low-hydrogen consumables, or additional procedure qualification may be appropriate.
Fabricators can use the assessment during job planning to compare material heats and anticipate the level of thermal control required for structural welds, repairs, and heavy fabrication. A higher CE can prompt earlier coordination of preheating equipment and hydrogen-control practices.
Construction professionals can use the calculator when reviewing steel procurement and fabrication plans. The CE result provides a quick indication of whether a specified material may require more demanding welding controls before work begins on site.
Welding inspectors can use the calculated value as a screening reference when checking material certificates and evaluating whether the planned welding procedure appears consistent with the steel's hardenability and cracking risk.
Materials engineers can compare the contributions of carbon and alloying elements across candidate steels. This supports material selection and helps explain why two steels with similar carbon content may have different weldability classifications.
Accuracy and Limitations
The calculator accurately evaluates the IIW carbon equivalent from the seven entered composition values using the stated formula, but its result is only as reliable as the material analysis and the precision of the inputs. The classification is an empirical screening assessment rather than a complete weld-cracking prediction: it does not directly account for plate thickness, diffusible hydrogen, joint restraint, cooling rate, heat input, welding process, consumable, ambient conditions, or preheat practice. Use the result with the material certificate, qualified welding procedure, applicable construction code, and project-specific engineering judgment.
