Floor Joist Calculator
Calculate joist quantity, tributary loading, bending, shear, deflection, and structural capacity from floor design inputs. Floor Joist Calculator helps builders, contractors, engineers, and homeowners evaluate suitable joist specifications for flooring projects.
Highlights
- Estimate the number of floor joists required for your project.
- Calculate total design loads and individual joist line loads.
- Evaluate bending moment, shear force, and structural stresses.
- Check joist deflection against customizable span-to-deflection limits.
- Assess bending, shear, and deflection capacity with clear pass/fail checks.
Table of Contents
How Floor Joist Calculator Works?

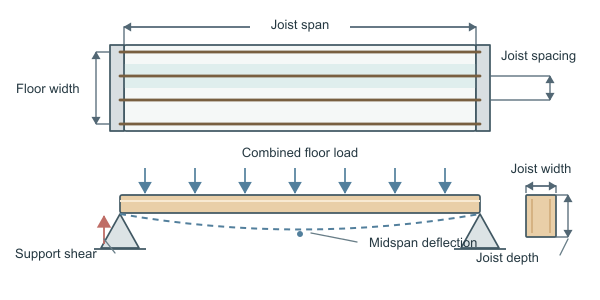

The Floor Joist Calculator evaluates the quantity, strength, and serviceability of regularly spaced, simply supported floor joists under a uniformly distributed floor load. It combines the specified live load and dead load to create the total design load, then assigns the load supported by one joist according to the joist spacing.
The estimated number of joists is based on the floor width and center-to-center spacing:
The tributary width is the floor width assigned to an individual joist, normally equal to the center-to-center joist spacing. The combined design load and line load are calculated as:
For a simply supported joist with a uniform line load, the maximum midspan bending moment and support shear are:
The rectangular joist section properties are determined from the actual width b and depth d. The section modulus is:
The required section modulus compares the applied moment with the allowable bending stress. When the moment is expressed in lb-ft and stress is expressed in psi, the calculator applies the corresponding inch-based moment value:
Actual bending stress and the maximum rectangular-section shear stress are calculated from:
Service-load deflection uses the elastic beam equation for a uniformly loaded, simply supported joist:
Here, E is the modulus of elasticity and I is the rectangular moment of inertia, I = b d³ / 12. The selected deflection limit determines the allowable deflection:
Capacity utilization is reported as a percentage. Values at or below 100% pass the corresponding check, while values above 100% indicate that the specified joist does not satisfy that criterion.
| Output | Calculation basis |
|---|---|
| Estimated Joist Quantity | Floor width, spacing, and end-to-end layout |
| Joist Line Load | Total design load multiplied by tributary width |
| Bending and Shear | Uniform-load beam reactions and stresses |
| Deflection | Elastic beam response using span, load, stiffness, and section inertia |
| Capacity Utilization | Actual stress divided by allowable stress |
Practical Use Cases
Homeowners can use the calculator for an initial review of proposed floor framing, such as checking whether a joist depth and spacing appear reasonable for a room renovation or addition.
Builders and carpenters can estimate the number of joists across a floor width and review bending, shear, and deflection results while comparing framing layouts.
General contractors can use the outputs to communicate preliminary framing requirements, including joist quantity, line load, section modulus, and serviceability expectations.
Structural engineers can use the calculator as a preliminary screening tool for assumed spans, material stiffness, allowable stresses, and selected deflection criteria before completing a code-based design.
Remodeling professionals can assess how changes in floor width, joist spacing, permanent finishes, or occupancy loading may affect the utilization ratios of an existing or proposed floor system.
Accuracy and Limitations
The calculator provides an idealized preliminary analysis for equally spaced, prismatic, simply supported joists carrying a uniform area load. It uses the entered actual joist dimensions, modulus of elasticity, allowable bending stress, allowable shear stress, span, spacing, and selected L/180, L/240, L/360, or L/480 deflection limit. It does not account for concentrated loads, load sharing through subfloor diaphragm action, openings or notches, holes, bearing crushing, lateral-torsional restraint, fastener connections, vibration, support settlement, joist continuity, species-specific adjustment factors, moisture, duration of load, fire design, or local building-code requirements. Results should therefore be treated as screening values and reviewed by a qualified design professional before construction.
Quick Examples
Example #1: Standard Residential Floor
Evaluates a typical wood floor joist system for a residential room with standard occupancy loading.
Example #2: Long-Span Living Area
Checks a longer residential joist span with tighter spacing and increased stiffness requirements.
Example #3: Heavy-Load Workshop Floor
Assesses floor joists supporting a workshop or storage area with higher permanent and live loads.
