Welding Calculator
Calculate weld volume, mass, filler requirement, heat input, energy, and costs from dimensions, welding settings, efficiencies, density, and rates. Welding Calculator helps welders, fabricators, engineers, and estimators plan consumables, thermal input, and project expenses.
Highlights
- Estimate weld volume and deposited metal mass from weld dimensions.
- Calculate filler material requirements using deposition efficiency.
- Determine arc-on time, energy consumption, and effective heat input.
- Estimate filler material, electricity, and total welding costs.
- Support flexible units for dimensions, welding settings, density, and pricing.
Table of Contents
How Welding Calculator Works?

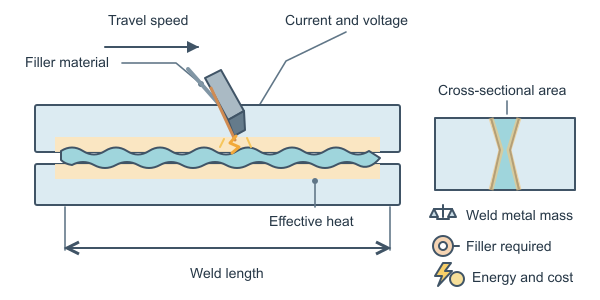

The Welding Calculator estimates deposited weld volume, weld metal mass, filler material, arc-on time, electrical energy, effective heat input, and operating costs from the entered weld dimensions and welding settings. It uses the weld length and cross-sectional area to determine the geometric volume of deposited metal.
Here, is weld volume, is weld length, and is weld cross-sectional area. Weld volume is then multiplied by the entered weld metal density to calculate finished weld metal mass.
Because some filler is lost through spatter, slag, or other process inefficiencies, the required filler quantity is higher than the finished weld mass whenever deposition efficiency is below 100 percent.
Arc-on time is calculated from weld length and travel speed. Electrical arc power is calculated from welding current and arc voltage, and total arc energy is the product of power and arc-on time.
Effective heat input accounts for arc efficiency, which represents the percentage of electrical arc energy transferred into the workpiece. Heat input per unit weld length is therefore calculated as follows:
In this expression, is arc efficiency. The calculator estimates filler cost by multiplying filler material required by the filler material rate. Electricity cost is calculated by multiplying arc energy by the electricity rate, and total welding cost is the sum of filler material cost and electricity cost.
| Output | Calculation basis |
|---|---|
| Weld Volume | Weld length × cross-sectional area |
| Weld Metal Mass | Weld volume × material density |
| Filler Material Required | Weld metal mass ÷ deposition efficiency |
| Arc-On Time | Weld length ÷ travel speed |
| Arc Energy | Current × voltage × arc-on time |
| Effective Heat Input | Arc energy × arc efficiency, distributed over weld length |
| Total Welding Cost | Filler cost + electricity cost |
The calculator accepts the supported length, area, current, voltage, travel-speed, density, cost, and percentage inputs and presents results using the available output units for each quantity.
Practical Use Cases
Welders can estimate the filler material required for a weld run and review arc-on time, energy consumption, and effective heat input before starting work. This helps with consumable preparation and process planning.
Fabricators can use weld dimensions, deposition efficiency, and material density to forecast consumable quantities for assemblies, frames, tanks, and structural components. The resulting filler and electricity costs support job-level budgeting.
Welding engineers can compare current, voltage, travel speed, and arc-efficiency assumptions to study how process settings affect heat input and electrical energy. This is useful when developing or reviewing welding procedures.
Project estimators can calculate expected filler material cost, electricity cost, and combined welding cost for quotations and production plans. Adjusting weld length or cross-sectional area allows rapid comparison of alternative designs.
Maintenance teams can estimate consumables and operating expenses for repair welds, replacement parts, and recurring maintenance tasks when the weld profile and process settings are known.
Manufacturing planners can use arc-on time and filler requirements to support production scheduling, material purchasing, and resource allocation across batches of similar welded components.
Accuracy and Limitations
The calculator provides an engineering estimate based on constant weld length, cross-sectional area, current, voltage, travel speed, arc efficiency, deposition efficiency, density, and cost rates. It assumes the entered cross-sectional area represents the deposited weld profile and that current, voltage, and travel speed remain constant throughout the weld. Actual filler use may differ because of starts and stops, spatter, slag, wire or electrode waste, joint fit-up, rework, and operator technique. Actual heat transfer can also vary with welding process, polarity, joint geometry, thermal losses, and changing arc conditions; the arc-efficiency input is therefore an assumption rather than a direct thermal measurement. Electricity cost covers calculated arc energy only and excludes equipment standby power, labor, shielding gas, preparation, finishing, and other project expenses.
Quick Examples
Example #1: Small Fabrication Joint
Estimate weld material, energy use, and cost for a short structural fabrication weld.
Example #2: Long Pipeline Weld
Calculate filler requirements and thermal energy for a long pipeline circumferential weld.
Example #3: Heavy Industrial Weld
Estimate consumable usage, heat input, and operating costs for a high-volume heavy equipment weld.
