How Pitch Diameter Calculator Works?

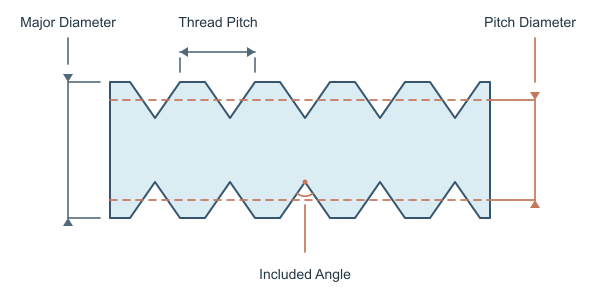

The Pitch Diameter Calculator estimates the basic pitch diameter of an ideal threaded profile from the major diameter, thread pitch, and included thread angle. The pitch diameter is the theoretical diameter at which the thread thickness equals the width of the adjacent thread space.

For a basic symmetrical V-thread profile, the calculator uses the major diameter D, thread pitch P, and included angle θ:

Dp=D-38P⁢cot⁡θ2

Here, Dp is the calculated pitch diameter, D is the major diameter, P is the thread pitch, and θ is the included angle between the two thread flanks. For the common 60° thread angle, the relationship becomes approximately:

Dp≈D-0.649519⁢P

For example, with a major diameter of 10 mm, a thread pitch of 1.5 mm, and an included angle of 60°, the estimated pitch diameter is approximately 9.0257 mm.


Input or outputMeaningSupported units
Major DiameterMaximum diameter measured across the outermost thread crestsmm, in
Thread PitchAxial distance between corresponding points on adjacent threadsmm, in, TPI
Included Thread AngleAngle between the two thread flanksdegrees
Pitch DiameterTheoretical diameter where thread thickness equals thread-space widthmm, in

Practical Use Cases

Machinists can use the calculator to estimate the basic pitch diameter before machining, turning, or inspecting threaded components. This provides a quick reference for checking whether a planned major diameter and pitch are consistent with the intended thread geometry.

Mechanical engineers can apply the result during preliminary design of bolts, studs, nuts, shafts, and tapped holes. The calculated value helps compare thread sizes and evaluate basic engagement relationships before detailed tolerance analysis.

Quality inspectors can use the calculator as a screening tool when reviewing measured major diameter and thread pitch values. It can indicate whether a component is broadly consistent with its specified thread angle and basic pitch diameter.

Tool and die designers can estimate the theoretical pitch diameter for cutting tools, gauges, and forming operations based on the selected thread profile. The result is useful for initial setup calculations before applying the exact standard-specific profile and tolerance limits.

Maintenance technicians can use the calculator to identify likely thread specifications when only the major diameter, pitch, and flank angle are known from an existing fastener or threaded part.

Accuracy and Limitations

The calculator provides an idealized basic pitch diameter using the entered major diameter, pitch, and included angle, with input limits of 0.01 to 1000 for major diameter, 0.001 to 100 for thread pitch, and 20° to 120° for included angle. It does not account for actual crest and root truncation, flank straightness, thread tolerances, material deformation, coating thickness, wear, lead error, measurement uncertainty, or the specific requirements of standards such as ISO, Unified, or Whitworth profiles. Use the result for estimation and preliminary verification rather than as a replacement for calibrated pitch-diameter gauges or a complete standards-based inspection.

Quick Examples

Example #1: Metric Standard Thread

Calculate the pitch diameter for a common metric threaded component using a 60-degree thread profile.

Example #2: Imperial Unified Thread

Determine the pitch diameter for an inch-based unified thread with a standard 60-degree included angle.

Example #3: Fine-Pitch Metric Thread

Verify the pitch diameter of a fine-pitch metric thread used in precision mechanical applications.

Frequently Asked Questions

Pitch diameter is the theoretical diameter where the thickness of a thread ridge equals the width of the gap between adjacent threads. It is a key reference for evaluating thread fit.

Pitch diameter strongly affects whether mating threads assemble smoothly and hold securely. A value that is too large or too small can cause interference, looseness, or poor load transfer.

Major diameter is measured across the outermost thread crests, while pitch diameter is located within the thread profile. The pitch diameter is therefore smaller than the major diameter for external threads.

Metric ISO and Unified National threads commonly use a 60-degree included angle. Other standards, such as Whitworth threads, use different angles and should be identified before comparing specifications.

Machinists, mechanical engineers, quality inspectors, and manufacturers use pitch diameter specifications when designing, producing, and checking threaded fasteners and components.
