Rivet Size Calculator

How Rivet Size Calculator Works?

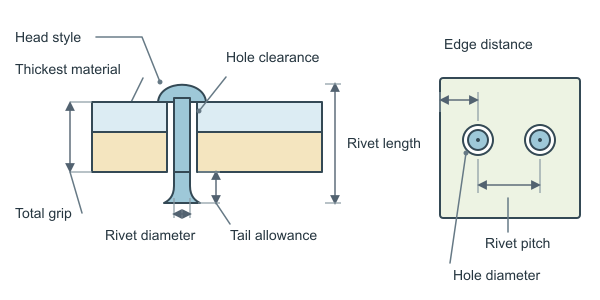

The Rivet Size Calculator uses the thickness of the thickest joined material to estimate a practical rivet shank diameter. A common sizing rule is to select a rivet diameter approximately three times the thickest material thickness.

Here, $d$ is the recommended rivet diameter and $t_{\max }$ is the thickest material thickness. The prepared hole is then sized by adding the specified hole clearance to the rivet diameter.

In this equation, $d_h$ is the recommended hole diameter and $c$ is the user-entered hole clearance. The total grip thickness is the combined thickness of all materials being joined.

The calculator applies a tail-forming allowance based on the selected head style. The allowance represents the extra shank length needed beyond the grip to form a secure driven tail.

The recommended rivet length is the grip thickness plus this forming allowance. The calculator also uses standard spacing rules to estimate edge distance and rivet pitch.

The calculator accepts the defined thickness and clearance inputs in the available measurement units and reports each result using the selected measurement basis.

Practical Use Cases

Fabricators can enter the combined grip, thickest sheet thickness, head style, and desired hole clearance to establish a consistent rivet diameter, hole size, length, edge distance, and pitch before drilling and assembly.

Construction contractors can use the results to lay out riveted sheet-metal joints, check that fasteners are not positioned too close to an edge, and maintain adequate spacing between adjacent rivets.

Mechanical and structural engineers can use the calculator for preliminary fastening layouts and specification checks, then compare the preliminary dimensions with the applicable material, loading, and fastening standards.

Maintenance professionals can estimate replacement rivet dimensions when repairing an existing panel or bracket, particularly when the material stack and required head style are known.

Aviation and light-metal repair technicians can use the calculated hole diameter, forming allowance, and rivet length as an initial selection aid for sheet assemblies, subject to the governing repair manual and approved fastener specifications.

Accuracy and Limitations

The calculator provides practical preliminary dimensions using fixed sizing rules: diameter is three times the thickest material thickness, hole diameter adds the entered clearance, universal and countersunk tail allowances are 1.5 and 1.0 rivet diameters respectively, minimum edge distance is 2 diameters, and minimum pitch is 4 diameters. These estimates do not verify joint strength, rivet shear or tensile capacity, bearing stress, material compatibility, corrosion allowance, countersink depth, grip-range restrictions, installation access, or applicable standard fastener sizes. The results should therefore be checked against the project drawings, manufacturer data, and relevant construction or engineering standards before fabrication.
