Solar Panel Wattage Calculator

How Solar Panel Wattage Calculator Works?

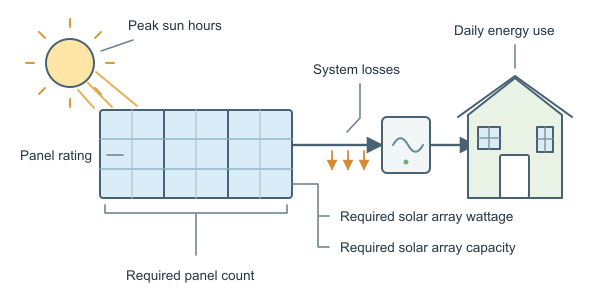

The Solar Panel Wattage Calculator estimates the photovoltaic capacity needed to produce your average daily electricity demand. It uses daily energy consumption, average peak sun hours, and the percentage of system losses caused by factors such as wiring, inverter inefficiency, temperature, shading, and dust.

First, the calculator determines the usable fraction of the system after losses:

The required solar array wattage is then calculated by dividing daily energy demand by the product of peak sun hours and the remaining system efficiency:

Here, $E_{\mathrm{daily}}$ is daily energy consumption, $H_{\mathrm{sun}}$ is average peak sun hours per day, and $W_{\mathrm{array}}$ is the required array wattage. The result is also presented as required solar array capacity in kilowatts.

To estimate the number of panels, the calculator divides the required array wattage by the rating of one panel and rounds the result up to the next whole panel:

For example, with 30 kWh/day of consumption, 4.5 peak sun hours, 20% system losses, and 400 W panels, the estimated array requirement is approximately 8,333 W, or 8.33 kW. Dividing this by 400 W gives 20.83, so the calculator recommends 21 panels.

The calculator accepts daily consumption in Wh/day, kWh/day, or MWh/day; panel ratings in W or kW; and reports array size in W, kW, or MW, with the panel quantity reported as whole panels.

Practical Use Cases

Homeowners can estimate the solar array size needed to offset an average household demand and compare the result with available roof space and preferred panel ratings.

Solar installers can use the calculator for preliminary system sizing, panel quantity estimates, and quick comparisons between different panel ratings before completing a detailed site assessment.

Off-grid cabin owners can size a photovoltaic array around daily electricity needs while accounting for limited sunlight and losses from inverters, wiring, shading, and temperature.

Small business operators can estimate the capacity required for offices, workshops, retail spaces, or agricultural buildings using their measured daily energy consumption.

Renewable energy engineers can create an initial capacity estimate for residential, commercial, or remote installations and use the output as a starting point for more detailed electrical and structural design.

Energy consultants can demonstrate how changes in consumption, peak sun hours, loss assumptions, or panel rating affect the required array wattage and panel count.

Accuracy and Limitations

The calculator provides a planning-level estimate based on average daily energy consumption, average peak sun hours, a user-supplied system-loss percentage, and the nominal rating of one panel. It assumes that the selected sunlight value represents a reliable daily average and that losses can be represented by one fixed percentage. It does not model hourly load profiles, seasonal sunlight variation, panel orientation or tilt, shading by time of day, battery storage, inverter sizing, temperature-dependent panel output, snow cover, degradation, backup requirements, roof area, electrical string design, or local permitting constraints. The panel count is rounded up to a whole panel, but the resulting system should be verified using local solar resource data and a qualified photovoltaic designer.
