Compression Ratio to PSI Calculator

Calculate estimated absolute and gauge cylinder pressure based on compression ratio, atmospheric pressure, and specific heat ratio. Compression Ratio to PSI Calculator helps mechanics, automotive engineers, and vehicle enthusiasts evaluate engine compression pressure.

Highlights

  • Estimate cylinder pressure from engine compression ratio.
  • Calculate both absolute and gauge pressure values.
  • Adjust results for atmospheric pressure and specific heat ratio.
  • Supports psi, kPa, bar, atm, inHg, and mmHg units.
  • Useful for mechanics, automotive engineers, and car enthusiasts.

Table of Contents

  1. How Compression Ratio to PSI Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Compression Ratio to PSI Calculator Works?

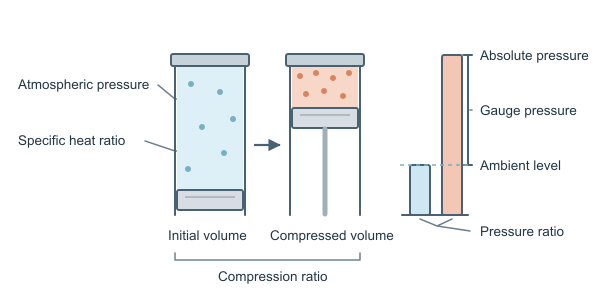

The calculator estimates the pressure reached inside an engine cylinder when an air-fuel charge is compressed according to an ideal adiabatic model. It uses the geometric compression ratio, the starting atmospheric pressure, and the specific heat ratio of the mixture.

The theoretical pressure ratio is calculated by raising the compression ratio to the specific heat ratio, commonly represented by γ:

Pressure Ratio=CRγ

The estimated absolute cylinder pressure is then found by multiplying the atmospheric pressure by this theoretical pressure ratio:

P2=P1×CRγ

Here, P1 is the atmospheric pressure, P2 is the estimated absolute cylinder pressure, CR is the compression ratio, and γ is the specific heat ratio. Absolute pressure includes the surrounding atmospheric pressure. To calculate gauge pressure, the atmospheric pressure is subtracted from the absolute result:

Pgauge=P2−P1

For example, with a compression ratio of 10, atmospheric pressure of 14.696 psi, and a specific heat ratio of 1.4:

101.4≈25.12
P2=14.696×25.12≈369.1 psi absolute
Pgauge=369.1−14.696≈354.4 psi gauge

Input or outputRole in the calculation
Compression ratioDetermines how strongly the cylinder charge is compressed.
Atmospheric pressureSets the initial absolute pressure before compression.
Specific heat ratioControls how pressure rises during ideal adiabatic compression.
Pressure ratioEquals the compression ratio raised to the specific heat ratio.
Absolute cylinder pressureIncludes atmospheric pressure after theoretical compression.
Gauge cylinder pressureShows pressure above the selected atmospheric pressure.

The calculator accepts atmospheric pressure in psi, kPa, bar, atm, inHg, or mmHg and reports pressure outputs in those same supported pressure formats. Compression ratio and specific heat ratio are entered as dimensionless ratios.

Practical Use Cases

Automotive mechanics can use the calculator to estimate the theoretical pressure associated with an engine's stated compression ratio and compare that result with compression-test observations. A substantial difference may indicate that real operating conditions, valve timing, cylinder sealing, or testing procedures are affecting the measured result.

Automotive engineers can use the pressure ratio output during preliminary engine analysis. By changing compression ratio or specific heat ratio, they can examine how the idealized cylinder pressure responds before applying more detailed combustion, thermal, and gas-flow models.

Engine builders and tuners can use the calculator to compare naturally aspirated engine configurations with different compression ratios. The absolute and gauge pressure estimates provide a quick theoretical reference when evaluating piston, cylinder-head, or combustion-chamber changes.

Vehicle enthusiasts and students can use the tool to understand why a higher compression ratio produces a disproportionately higher theoretical pressure. For example, the pressure multiplication factor is not simply equal to the compression ratio because it is raised to the specific heat ratio.

Technical educators can use the calculator to demonstrate the difference between absolute and gauge pressure. The results show that gauge pressure is obtained only after the starting atmospheric pressure has been removed from the absolute cylinder pressure.

Accuracy and Limitations

The calculator is accurate for the stated ideal-gas, adiabatic compression model: it evaluates the pressure ratio as CRγ, multiplies it by the supplied atmospheric pressure, and subtracts atmospheric pressure for the gauge result. It does not predict an actual compression-test or combustion pressure because real engines experience heat transfer, changing specific heat ratio, valve overlap and timing effects, trapped exhaust gases, pumping losses, leakage past rings or valves, combustion, and engine-speed-dependent airflow. Results are therefore theoretical estimates rather than diagnostic measurements, especially across the supported compression-ratio range of 1.01 to 30 and specific-heat-ratio range of 1.01 to 1.67.

Quick Examples

Example #1: Typical Gasoline Engine

Estimate theoretical cylinder pressure for a naturally aspirated gasoline engine under standard atmospheric conditions.

Example #2: High-Compression Performance Engine

Evaluate the pressure increase produced by a higher compression ratio commonly used in performance engines.

Example #3: Turbocharged Engine at Elevated Pressure

Estimate cylinder pressure for an engine operating with elevated intake atmospheric pressure and a moderate compression ratio.

Frequently Asked Questions

A higher compression ratio generally produces a higher theoretical cylinder pressure. The actual pressure also depends on air properties, temperature, valve timing, and engine condition.

Absolute pressure includes atmospheric pressure, while gauge pressure measures pressure above the surrounding atmosphere. Engine pressure readings are commonly expressed as gauge pressure.

Atmospheric pressure changes with altitude and weather conditions, influencing the starting pressure before compression. Higher ambient pressure generally results in higher cylinder pressure.

The specific heat ratio describes how a gas responds to compression under changing temperature conditions. Its value varies with the gas composition and operating conditions.

Real engines experience heat transfer, leakage past piston rings, valve overlap, intake restrictions, and changing valve timing. These effects can make measured pressure significantly different from idealized estimates.
