Cutoff Frequency Calculator

Calculate cutoff frequency, cutoff wavelength, and cutoff wavenumber based on waveguide dimensions, mode indices, and material properties. Cutoff Frequency Calculator helps engineers, students, and RF designers determine electromagnetic propagation limits in rectangular waveguides.

Highlights

  • Calculate waveguide cutoff frequency for selected electromagnetic modes.
  • Supports rectangular waveguide width and height inputs.
  • Accounts for electric and magnetic mode indices.
  • Includes relative permittivity and permeability for material-specific results.
  • Provides cutoff frequency, wavelength, and wavenumber in multiple units.

Table of Contents

  1. How Cutoff Frequency Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Cutoff Frequency Calculator Works?

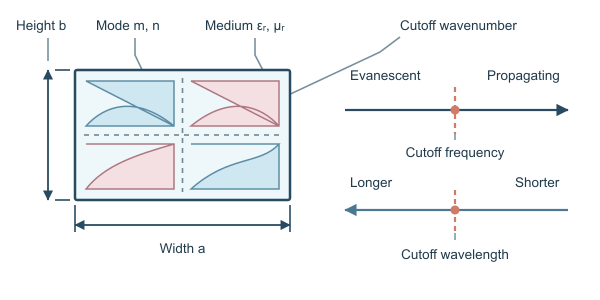

The Cutoff Frequency Calculator uses the dimensions of a rectangular waveguide, the selected mode indices, and the material's relative permittivity and permeability to determine the propagation limit of an electromagnetic mode. The electric mode index m describes field variation across the waveguide width a, while the magnetic mode index n describes variation across the height b.

kc=π(ma)2+(nb)2

Here, kc is the cutoff wavenumber. It represents the transverse component of the wavevector and depends on the waveguide geometry and mode indices.

fc=c2εrμr(ma)2+(nb)2

The cutoff frequency fc is the minimum frequency at which the selected mode can propagate. In this expression, c is the speed of light in vacuum, εr is relative permittivity, and μr is relative permeability. Increasing either material parameter lowers the cutoff frequency.

λc=cfc=2εrμr(ma)2+(nb)2

The cutoff wavelength is the maximum free-space wavelength associated with the selected cutoff frequency. The calculator reports cutoff frequency in Hz, kHz, MHz, or GHz; cutoff wavelength in m, cm, mm, in, or ft; and cutoff wavenumber in rad/m, rad/cm, rad/mm, or rad/in.


QuantityMeaningDetermined by
Cutoff wavenumberTransverse wavenumber at cutoffWaveguide dimensions and mode indices
Cutoff frequencyMinimum frequency for propagationGeometry, mode, permittivity, and permeability
Cutoff wavelengthFree-space wavelength at cutoffCutoff frequency

Practical Use Cases

RF and microwave engineers can use the calculator to verify whether a rectangular waveguide operates above cutoff at a selected frequency. For example, the standard dominant TE10 mode uses m = 1 and n = 0, allowing the engineer to check a design based on its width and height.

Waveguide and antenna designers can compare candidate dimensions and determine which mode propagates first. This helps establish an operating band that supports the desired mode while avoiding unwanted higher-order modes.

Materials and dielectric researchers can enter relative permittivity and relative permeability values to estimate how filling a waveguide with a material changes its cutoff frequency and cutoff wavelength.

Electromagnetics students can use different integer mode indices to explore how field variation across the width and height changes the cutoff wavenumber and propagation threshold.

RF test and measurement engineers can calculate the cutoff limits of waveguide sections used in laboratory fixtures, transitions, and frequency-selective measurement systems before selecting an operating frequency.

Accuracy and Limitations

The calculator applies the ideal rectangular-waveguide model with uniform material properties and uses the supplied dimensions, integer mode indices, relative permittivity, and relative permeability directly in the analytical cutoff equations. It assumes a rectangular cross-section, homogeneous filling, and ideal conducting boundaries; conductor loss, dielectric loss, surface roughness, wall thickness, apertures, bends, discontinuities, dispersion, and manufacturing tolerances are not included. The mode indices are limited to integers from 0 through 20, dimensions and material values must remain within the specified input ranges, and a conventional hollow rectangular waveguide does not support a physical TEM mode with m = 0 and n = 0, so that combination should not be interpreted as a valid propagating mode.

Quick Examples

Example #1: Standard X-Band TE10

Calculate the dominant-mode cutoff characteristics for a standard WR-90 rectangular waveguide.

Example #2: Dielectric-Filled Waveguide

Determine the cutoff behavior of a rectangular waveguide filled with a low-loss dielectric material.

Example #3: Higher-Order TE21 Mode

Analyze cutoff characteristics for a higher-order mode in a large rectangular waveguide.

Frequently Asked Questions

Cutoff frequency is the minimum frequency at which a specific electromagnetic mode can propagate through a waveguide. Below this frequency, the mode is attenuated rather than transmitted.

The selected mode does not propagate normally and its field amplitude decreases rapidly along the waveguide. Power transmission is therefore greatly reduced.

The TE₁₀ mode is typically the dominant mode because it has the lowest cutoff frequency in a standard rectangular waveguide. It has one field variation across the wider dimension and none across the narrower dimension.

Increasing the waveguide dimensions generally lowers the cutoff frequency, while reducing them raises it. The wider dimension usually has the strongest influence for the dominant mode.

Higher relative permittivity or permeability lowers the wave velocity and generally reduces the cutoff frequency for a given mode and geometry. Material properties should be selected according to the medium filling the waveguide.
