Capacitor Size Calculator

Calculate required capacitance, stored charge, energy, reactance, time constant, and recommended voltage rating from electrical design parameters. Capacitor Size Calculator helps engineers, technicians, hobbyists, and students select suitable capacitors for filtering and power supply applications.

Highlights

  • Calculate the required capacitance for power supply filtering and ripple control.
  • Determine charge per cycle and stored energy at the operating voltage.
  • Evaluate capacitive reactance across a wide range of ripple frequencies.
  • Estimate the circuit time constant for capacitor discharge behavior.
  • Get a recommended capacitor voltage rating with a customizable safety margin.

Table of Contents

  1. How Capacitor Size Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Capacitor Size Calculator Works?

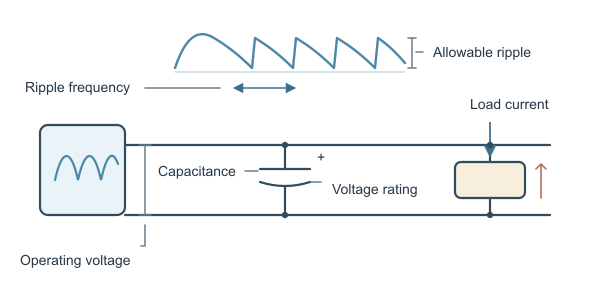

The Capacitor Size Calculator estimates the capacitance needed to limit voltage ripple for a specified load current and ripple frequency. It uses the charge relationship for a capacitor, where the charge removed during one ripple interval is determined by the load current and the time available between ripple events.

Q=If

Required capacitance is then found by dividing the charge per cycle by the allowable ripple voltage:

C=QΔV=If×ΔV

Here, I is load current, f is ripple frequency, and ΔV is the allowable ripple voltage. The calculator accepts load current in μA, mA, A, or kA; ripple frequency in mHz, Hz, kHz, or MHz; and voltage values in μV, mV, V, or kV.


Calculated outputFormulaMeaning
Required CapacitanceC=IfΔVMinimum capacitance for the selected ripple limit
Charge Per CycleQ=IfCharge supplied during each ripple cycle
Stored EnergyE=12CV2Energy stored at the operating voltage
Capacitive ReactanceXC=12πfCOpposition to alternating ripple current
Time Constantτ=RC, where R=VIEstimated discharge response of the capacitor and load
Recommended Voltage RatingVrating=V×(1+M100)Operating voltage plus the selected safety margin

The resulting values are reported as required capacitance, charge per cycle, stored energy, capacitive reactance, time constant, and recommended voltage rating. Available display units include pF through F for capacitance, pC through C for charge, μJ through kJ for energy, mΩ through MΩ for reactance, ns through minutes for time constant, and μV through kV for voltage rating.

Practical Use Cases

Electrical engineers: Engineers can estimate the minimum bulk capacitance required after a rectifier or switching power stage to keep supply ripple below a specified limit. They can also review stored energy, reactance, time constant, and the recommended voltage rating during preliminary component selection.

Technicians: Technicians troubleshooting power supplies can use measured load current, ripple frequency, operating voltage, and acceptable ripple to compare an installed capacitor with the theoretical requirement. The result provides a quick check before investigating ESR, temperature, or other circuit faults.

Hobbyists and makers: Hobbyists building linear supplies, LED drivers, audio projects, or microcontroller power rails can enter the expected load and ripple conditions to choose a practical capacitor value and voltage rating with additional headroom.

Students and educators: Students can observe how increasing load current increases required capacitance, while increasing ripple frequency or allowable ripple voltage reduces it. The calculator also connects the capacitance result to charge, energy, AC reactance, and RC time-constant concepts.

Accuracy and Limitations

The calculator provides an idealized minimum capacitance based on constant load current, a defined ripple frequency, and the relationship C = I/(fΔV). It does not model capacitor ESR or ESL, leakage current, dielectric losses, temperature effects, capacitance tolerance, aging, ripple-current heating, rectifier conduction angle, switching transients, waveform distortion, or frequency-dependent capacitance. The recommended voltage rating applies only the selected percentage margin to the stated operating voltage, so actual designs should also account for startup surges, fault conditions, DC-bias derating, and the capacitor manufacturer's specifications. The result should therefore be confirmed with the real ripple waveform and a suitably rated component.

Quick Examples

Example #1: 12 V Power Supply Filter

Estimate capacitor requirements for smoothing a 12 V DC power supply with moderate load current and controlled ripple.

Example #2: High-Frequency DC Converter

Size a filtering capacitor for a switching converter operating at high ripple frequency and low allowable voltage variation.

Example #3: Industrial DC Bus Capacitor

Evaluate capacitor sizing for a higher-voltage industrial DC bus with substantial load current and surge headroom.

Frequently Asked Questions

Higher load current requires more capacitance to maintain the same voltage stability. Reducing allowable ripple or increasing the time between recharge cycles also increases the required capacitance.

The acceptable ripple depends on the circuit. Digital circuits may tolerate more ripple, while audio equipment, precision analog circuits, and sensitive sensors often require a lower ripple voltage.

Higher ripple frequency allows the capacitor to recharge more often, generally reducing the capacitance needed for a given load and ripple limit. Lower frequencies require greater capacitance to supply current between charging intervals.

A capacitor should be rated above its normal operating voltage to accommodate surges, transients, and supply variations. The required margin depends on the circuit conditions and the capacitor technology being used.

Check polarity, capacitance tolerance, ripple-current rating, equivalent series resistance, leakage current, temperature rating, physical size, and expected service life. For AC or switching applications, verify that the capacitor is suitable for the operating frequency.
