Angular Resolution Calculator

How Angular Resolution Calculator Works?

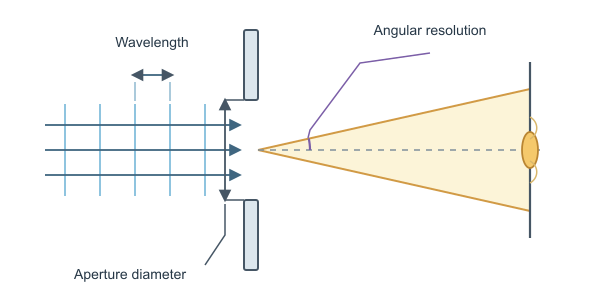

The Angular Resolution Calculator estimates the diffraction-limited detail that an optical system can distinguish. It uses the Rayleigh criterion for a circular aperture, where the minimum resolvable angular separation depends on the wavelength of light and the effective aperture diameter.

Here, $\theta$ is the diffraction-limited angular resolution in radians, $\lambda$ is the wavelength, and $D$ is the aperture diameter. A smaller value of $\theta$ represents finer angular detail. Increasing the aperture improves resolution, while increasing the wavelength reduces it.

The calculator reports the result as radians, degrees, arcminutes, arcseconds, and milliarcseconds. These are different representations of the same angular-resolution result and are useful for comparing optical systems across astronomy, imaging, surveying, and instrumentation.

For example, using a wavelength of 550 nm and an aperture diameter of 100 mm gives an angular resolution of approximately 6.71 × 10^-6 rad, or about 1.38 arcseconds, under ideal diffraction-limited conditions.

Practical Use Cases

Astronomers can estimate the smallest apparent separation between stars, planets, lunar features, or other celestial objects that a telescope may distinguish under diffraction-limited conditions. The arcsecond and milliarcsecond outputs are especially useful for comparing telescope designs.

Optical engineers can evaluate how aperture size and operating wavelength affect the theoretical resolving power of cameras, microscopes, sensors, laser systems, and other imaging instruments before accounting for real-world optical imperfections.

Photographers can use the calculator to understand the theoretical detail limit of a camera lens or other imaging optic. It provides a baseline for determining whether a larger aperture could improve fine-detail performance when diffraction is the dominant limitation.

Students and educators can use the calculator to demonstrate the Rayleigh criterion and investigate how changing wavelength or aperture diameter changes the smallest resolvable angular detail.

Surveying and navigation specialists can compare the angular performance of optical instruments used for viewing distant targets, alignment, and precision observation.

Accuracy and Limitations

The calculator applies the ideal Rayleigh diffraction limit, $\theta =1.22\lambda /D$, for a circular aperture. Its numerical result is accurate for the supplied wavelength and effective aperture under this model, but actual performance may be worse because of atmospheric seeing, lens or mirror aberrations, imperfect focus, central obstructions, aperture shape, detector pixel sampling, contrast requirements, and image-processing limits. It does not predict object brightness, image contrast, field of view, or the practical resolving power of a complete camera or telescope.
