Blackbody Radiation Calculator

Calculate emitted power, net radiation, peak wavelength, irradiance, photon energy, and radiated energy from blackbody properties. Blackbody Radiation Calculator helps students, engineers, researchers, and physicists analyze thermal emission and optical radiation.

Highlights

  • Calculate total and net blackbody radiation power.
  • Find peak wavelength and frequency using thermal emission laws.
  • Estimate photon energy at the peak emission wavelength.
  • Determine irradiance and radiant intensity at any distance.
  • Calculate spectral radiance and total radiated energy over time.

Table of Contents

  1. How Blackbody Radiation Calculator Works?
  2. Practical Use Cases
  3. Accuracy and Limitations
  4. Quick Examples
  5. Frequently Asked Questions (FAQs)
  6. Cite This Calculator

How Blackbody Radiation Calculator Works?

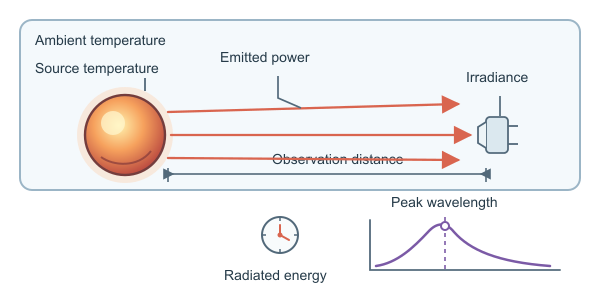

The Blackbody Radiation Calculator applies the Stefan–Boltzmann law, Wien’s displacement law, Planck’s law, and the inverse-square spreading relationship to estimate thermal emission from a radiating surface. Temperature values are used as absolute temperatures in the radiation equations.

For a real surface, emissivity ε is entered as a percentage and represents the fraction of ideal blackbody emission produced by the material. The emitted radiant exitance and total emitted power are calculated from:

M=εσT4,P=AM

Here, M is radiant exitance, P is total emitted power, A is radiating surface area, T is source temperature, and σ is the Stefan–Boltzmann constant. Net radiated power accounts for radiation exchanged with the surroundings:

Pnet=εσA(T4−Tamb⁡4)

The peak wavelength is found with Wien’s displacement law. The calculator then determines the corresponding frequency and photon energy:

λmax=bT,f=cλmax,E=hcλmax

At the peak wavelength, spectral radiance is evaluated with Planck’s law:

Bλ=ε2hc2λ5(ehcλkT−1)

For the isotropic point-source approximation, irradiance at an observation distance r and radiant intensity are calculated as:

Irradiance=P4πr2,RadiantIntensity=P4π

Radiated energy over an exposure time is the emitted power multiplied by the duration:

Q=Pt

OutputCalculation basis
Total Emitted PowerP=εσAT4
Net Radiated PowerPnet=εσA(T4−Tamb⁡4)
Peak Wavelengthλmax=b/T
Photon Energy at PeakE=hc/λmax
Radiated EnergyQ=Pt

The calculator provides outputs in the supported choices for power, radiant exitance, wavelength, frequency, photon energy, irradiance, radiant intensity, spectral radiance, and radiated energy.

Practical Use Cases

Students can use the calculator to connect temperature with the color and intensity of thermal radiation, such as estimating the peak wavelength of a heated object and comparing ideal emission with a surface of lower emissivity.

Thermal engineers can estimate emitted and net radiated power from equipment, enclosures, heaters, or spacecraft surfaces by entering surface area, source temperature, ambient temperature, and emissivity.

Optical engineers can calculate peak wavelength, peak frequency, photon energy, and spectral radiance to assess whether a thermal source primarily emits in visible, infrared, or other relevant optical regions.

Researchers and physicists can model blackbody-like sources, compare radiant exitance for different temperatures, and estimate irradiance at a detector using the observation distance and isotropic point-source approximation.

Instrumentation designers can estimate the radiation reaching a sensor, the radiant intensity of a source, and the total radiated energy accumulated during a specified exposure time.

Accuracy and Limitations

The calculator is accurate for Stefan–Boltzmann, Wien, Planck, and inverse-square calculations when the source can be treated as an isothermal surface with a constant, wavelength-independent emissivity. Its net-radiation result assumes a surrounding environment that exchanges radiation at the entered ambient temperature, while irradiance and radiant intensity use an isotropic point-source approximation. These estimates can be inaccurate for nearby extended surfaces, directional emitters, view-factor-limited geometries, reflective surroundings, wavelength-dependent emissivity, atmospheric absorption, or cases where convection and conduction are significant. The peak frequency is obtained from the frequency corresponding to the wavelength peak; the actual maximum of a spectrum plotted per unit frequency occurs at a different frequency.

Quick Examples

Example #1: Incandescent Bulb Filament

Estimate thermal radiation, peak wavelength, and emitted energy from a hot incandescent filament.

Example #2: Solar Surface Radiation

Analyze the radiation emitted by the Sun's approximate photosphere and estimate irradiance at a selected distance.

Example #3: Industrial Furnace Wall

Calculate net heat radiation and energy emitted by a furnace wall during a production interval.

Frequently Asked Questions

Blackbody radiation is electromagnetic energy emitted by an idealized object solely because of its temperature. Its spectrum depends only on temperature, not on the material’s composition.

As temperature increases, the peak wavelength shifts toward shorter wavelengths. Cooler objects emit primarily at longer infrared wavelengths, while hotter objects may emit visible light.

Emissivity describes how efficiently a real surface emits thermal radiation compared with an ideal blackbody. It ranges from 0 to 1, or equivalently from 0% to 100%.

Emitted power is the radiation produced by a surface, while net radiated power accounts for radiation exchanged with the surrounding environment. A cooler environment generally increases the net outward radiation.

Radiation from an approximately isotropic source spreads over an expanding spherical area. Consequently, irradiance decreases with the square of the distance from the source.
